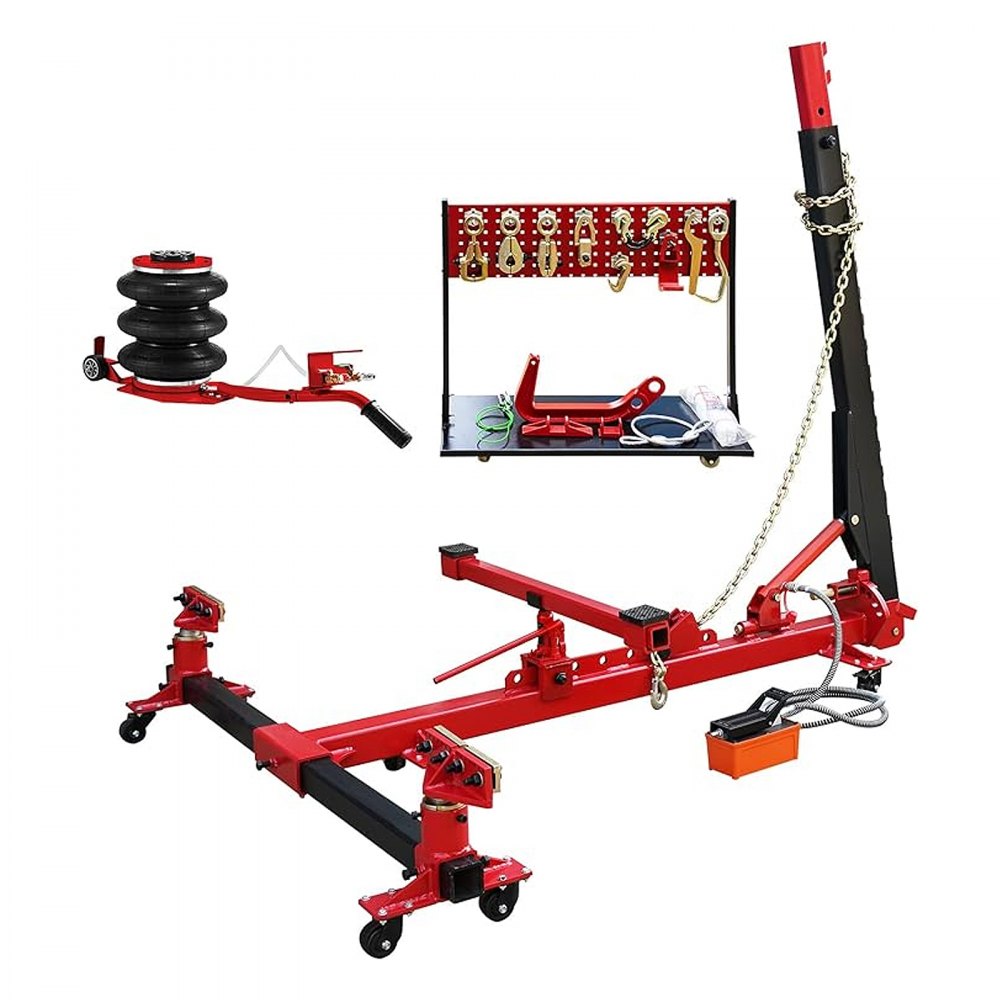

Auto Body Frame Straightener, 6 Ton Tension Car Frame Puller, Auto Body Frame Machine with Swivel Post, Hydraulic Foot Pump, Airbag Jack and Pulling Clamp Set, for Auto Body Frame Repair

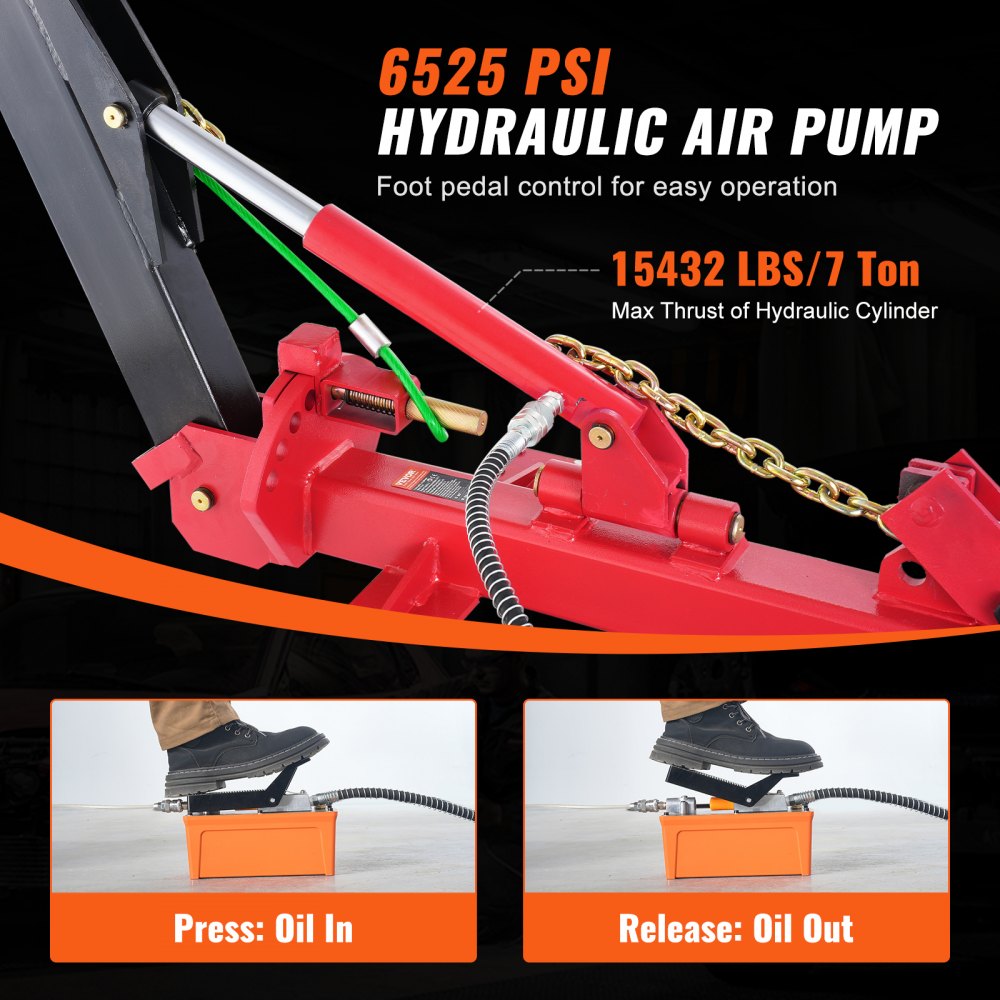

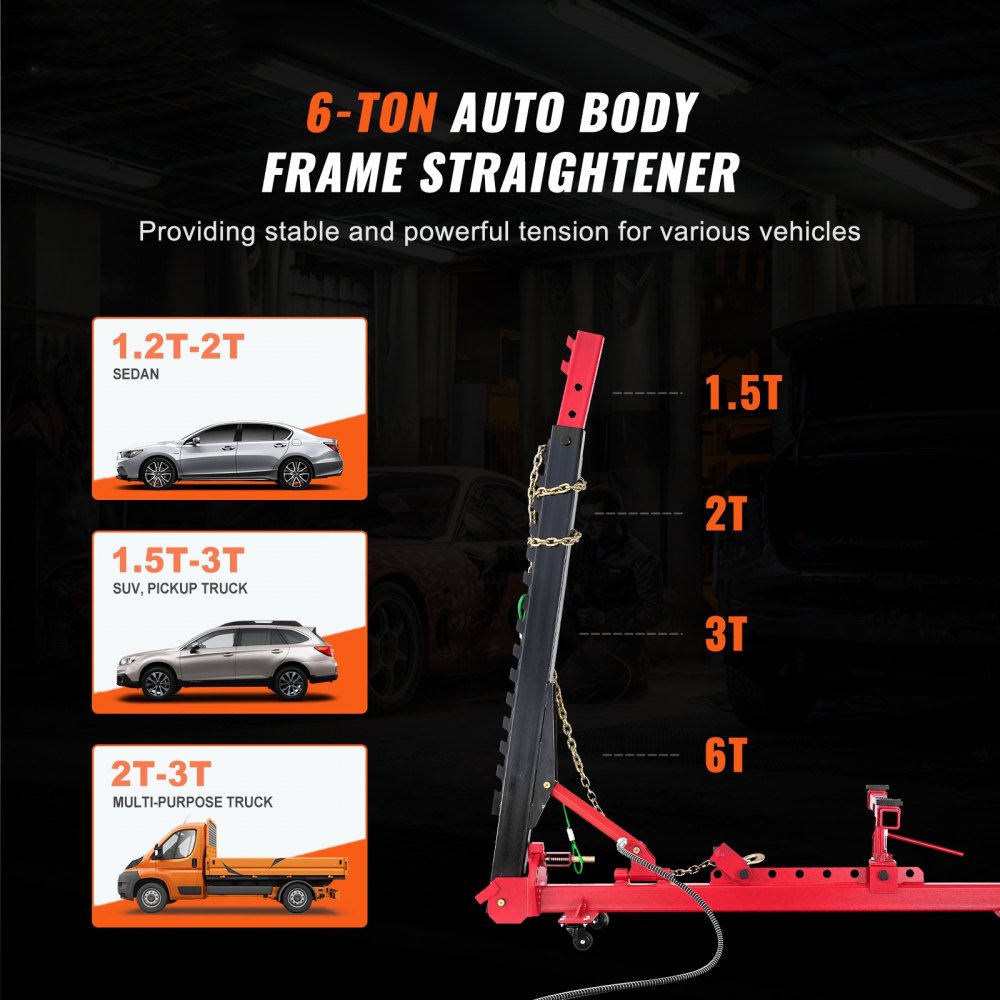

6-Ton Strong Tensile Force: The auto body frame straightener features a robust 7-ton hydraulic cylinder and a hydraulic air pump, delivering exceptional tensile strength for repairing vehicle body dents and deformations. It includes a 3m iron chain for high-strength tension and stability, ensuring a reliable repair process.

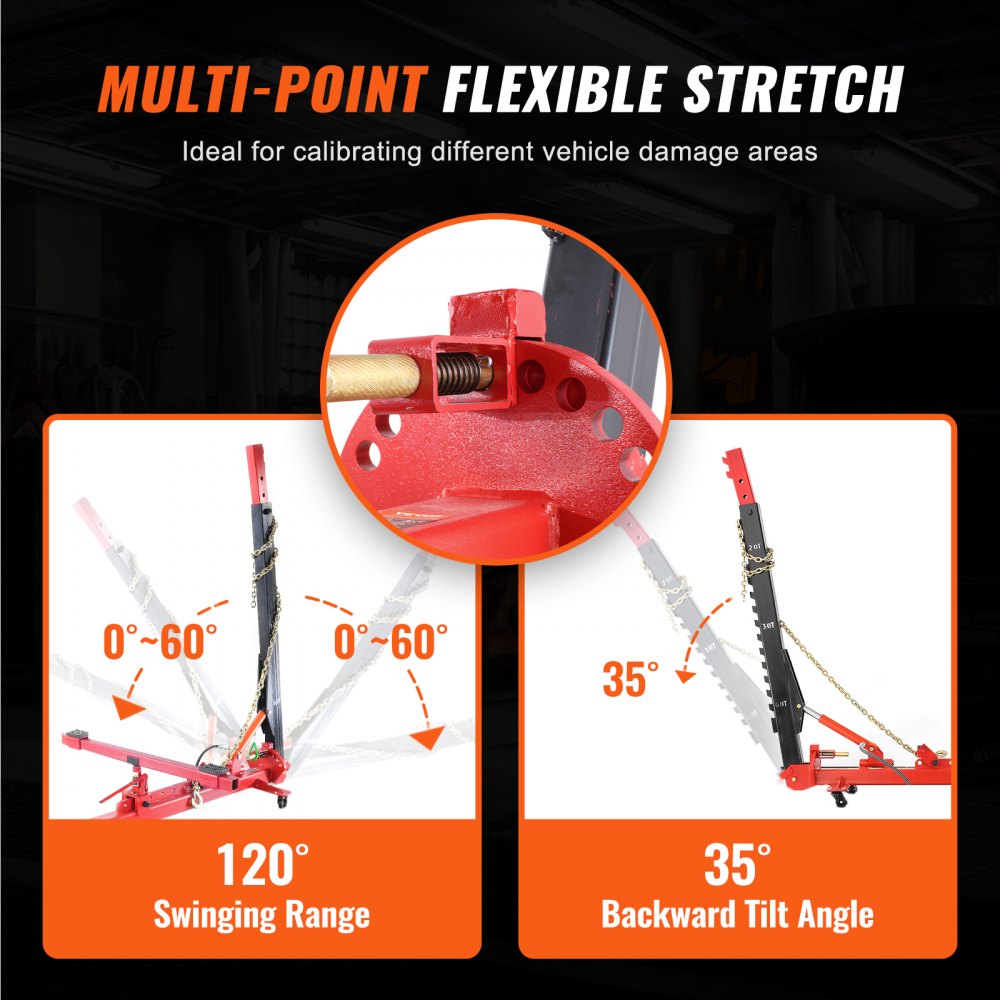

Flexible Adjustable Tower Column: With a swing range from -60 to +60 degrees and a maximum rear angle of 35 degrees, the adjustable auto puller column caters to various vehicle parts, including side doors and chassis. Its 8-hole pin design ensures adaptability for different vehicle types and maintenance needs.

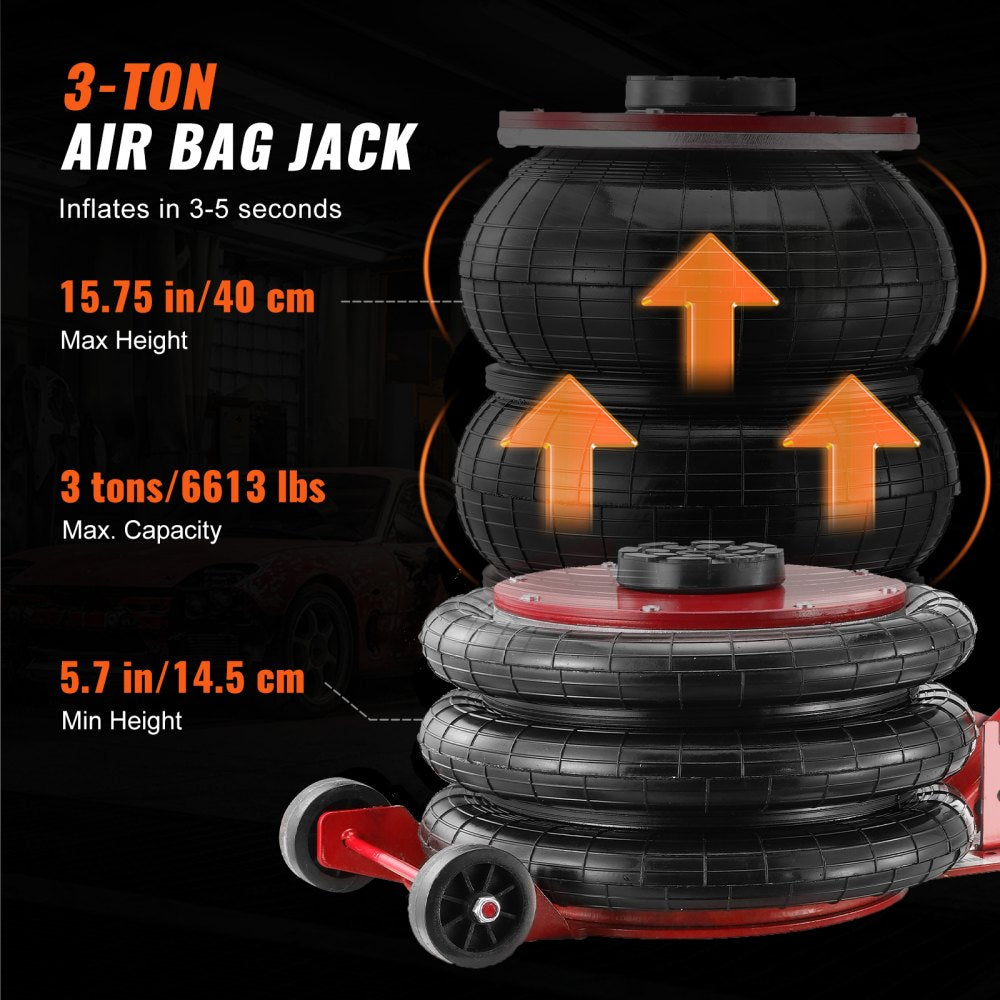

3-Ton Airbag Jack: Our auto body frame puller is equipped with a 3-ton airbag jack capable of lifting 6,600 lbs between 5.7" and 15.75" within 5 seconds. Constructed from durable rubber and stainless steel, this airbag jack features an ergonomic long handle and wheels for easy positioning under vehicles.

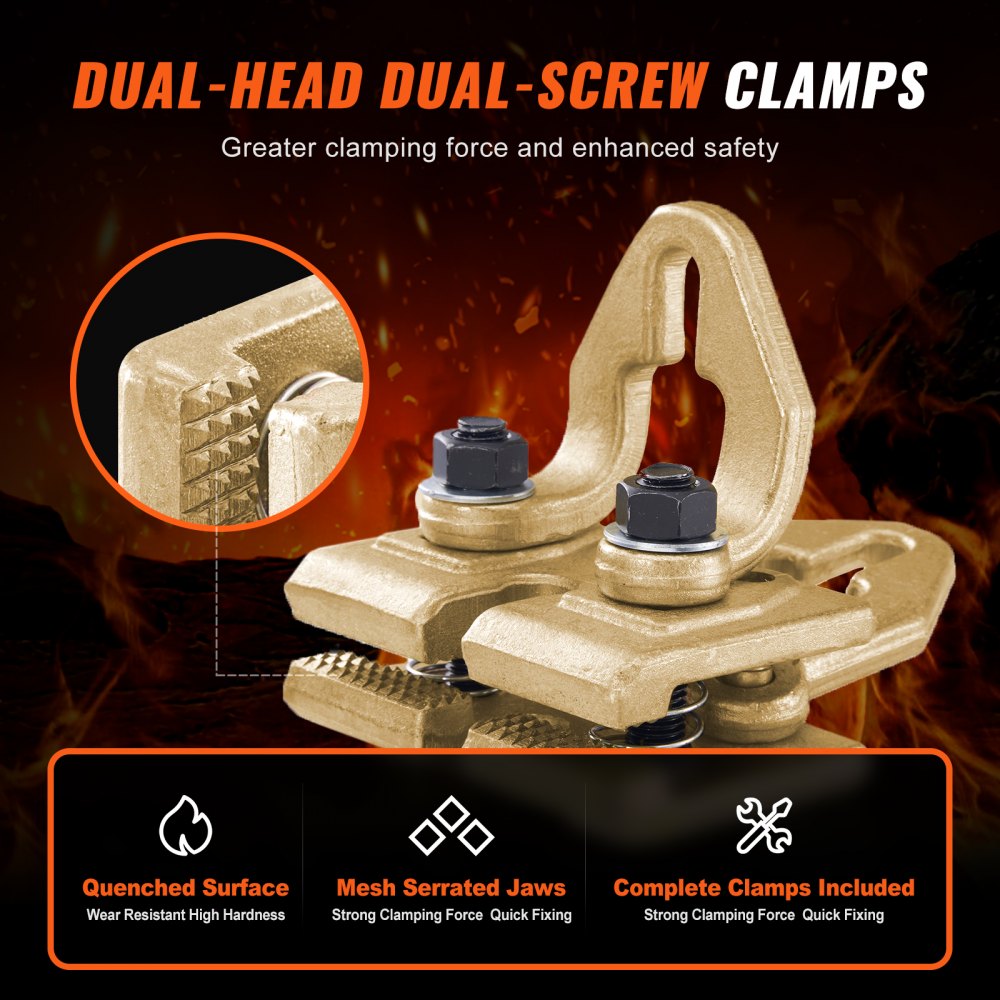

Durable Double-Screw Clamps: Featuring a quenching high-frequency treatment, the frame puller clamp boasts hardness and wear resistance. The double screw design enhances clamping force and stability, supported by a complete set of frame puller auto body tools for efficient maintenance.

Enhanced Mobility: The main frame and beam vice are mounted on 8 smooth casters, providing easy adjustment and stable support during repairs. With a 2.95" caster diameter, this frame puller auto body is ideal for working on SUVs, cars, trucks, and other vehicle models, ensuring mobility and stability.

Auto Body Frame Straightener, 6 Ton Tension Car Frame Puller, Auto Body Frame Machine with Swivel Post, Hydraulic Foot Pump, Airbag Jack and Pulling Clamp Set, for Auto Body Frame Repair
3-Ton Strong Tensile Force
Versatile Adjustment
High-Quality Airbag Jack
Comprehensive Auto Body Frame Puller
Universal Rotating Casters
Broad Utility

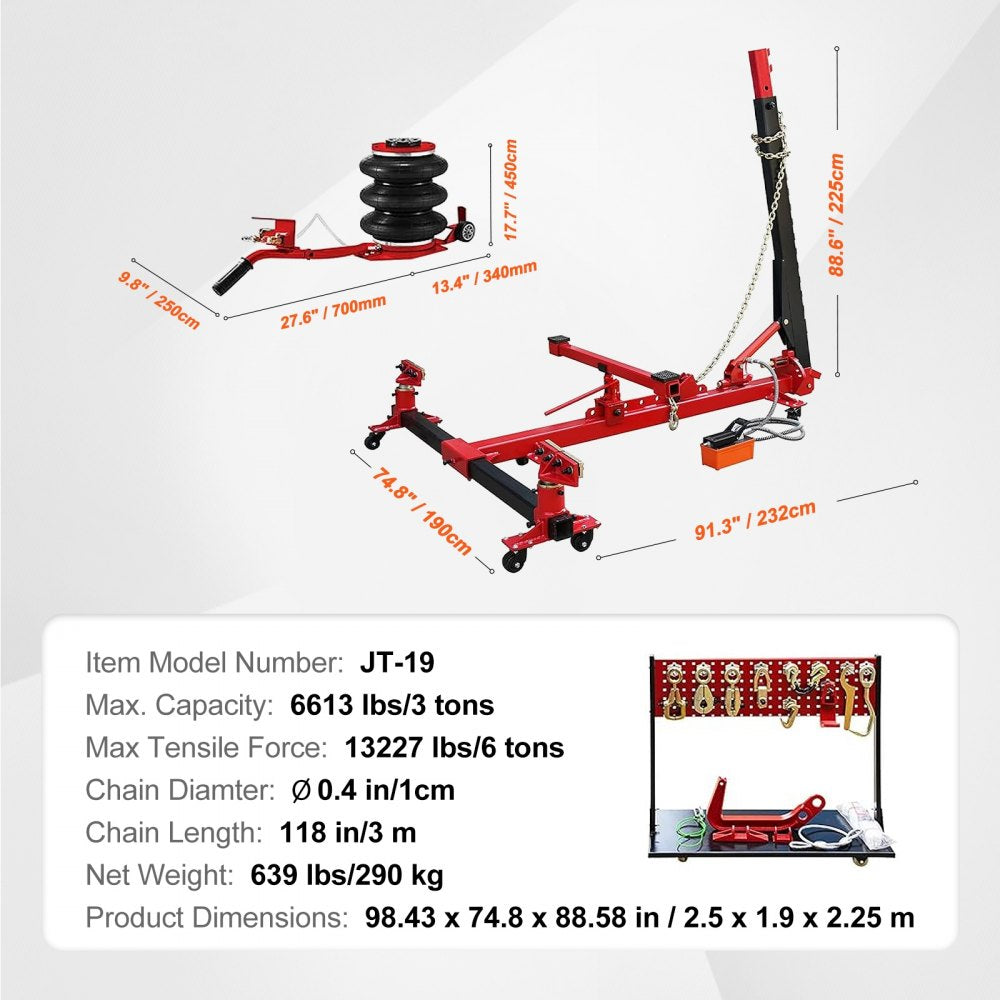

Caster Diameter: φ2.95 in/75 mm,Max. Tension: 13227 lbs / 6 ton,Number of Casters: 8 pcs,Airbag Jack:,Load Capacity of Hook: 6613 lbs / 3 tons,Max Thrust of Hydraulic Cylinder: 15432 lbs / 7 tons,Material: Rubber,Air Supply Required: 0.6-1 MPa,Product Dimensions: 40.55 x 10.55 x 5.5 in / 103 x 26.8 x 14 cm (Uninflated),Chain Length: 118 in / 3 m,Column Rear Tilt Angle: 35°,Position Adjustment: 8-hole,Column Swing Angle: -60°，-45°，-30°，-15°，0°，15°，30°，45°，60°,Max Pressure of Hydraulic System: 45 MPa,Load Capacity: 6613 lbs / 3 tons,Working Pressure: 0.8-1.0 MPa,Item Model Number: JT-19,Net Weight: 34.83 lbs/15.8 kg,Lifting Range: 5.7-15.75 inches / 14.5-40 cm,Chain Diameter: ∅0.4 in / 1 cm
