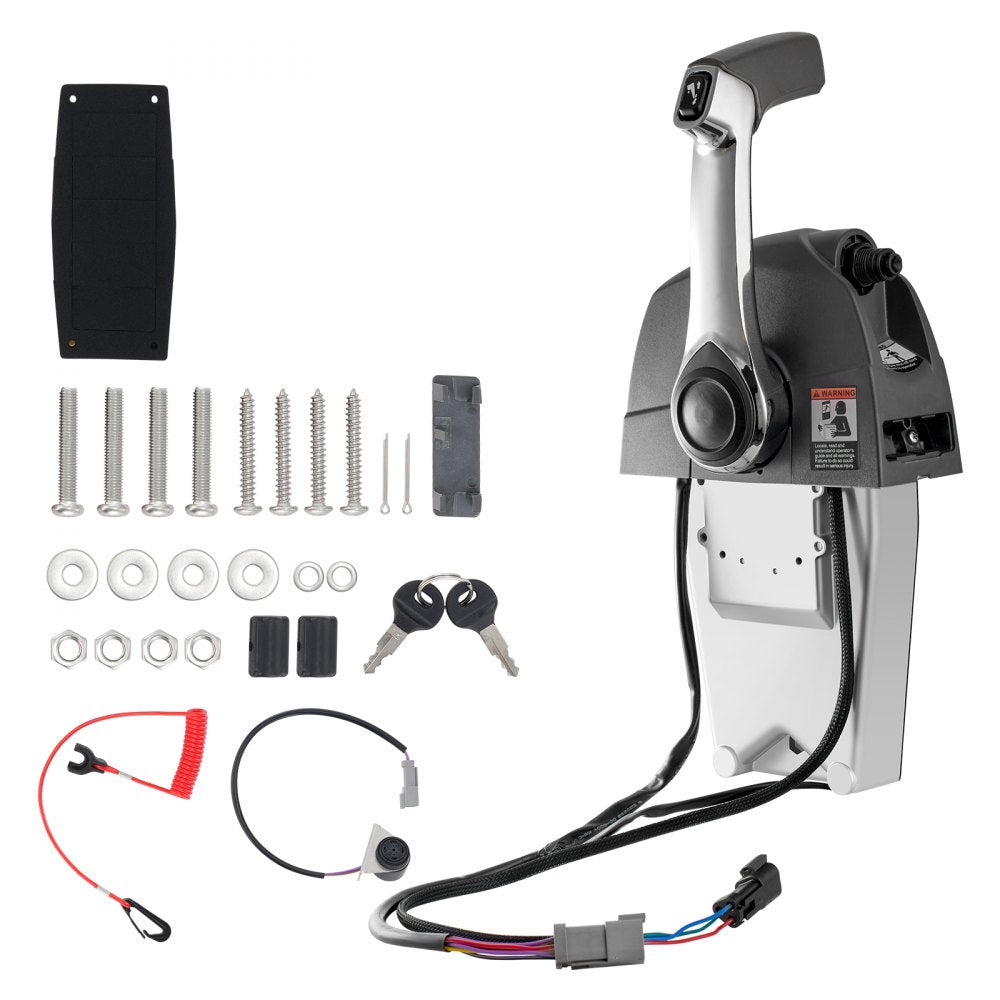

Boat Throttle Control, 5006186 Top-Mounted Outboard Remote Control Box for Evinrude Johnson, Marine Throttle Control Box with Power Trim Switch and Lanyard

Boat Throttle Control: Our top-mounted outboard remote control kit is compatible with Evinrude Johnson outboard motors. It`s made from aluminum ADC2+ASA and an ABS shell handle that resists cracking. The plastic button ensures firm and reliable operation. The Evinrude Johnson boat throttle control box is more robust and withstands multiple push-pull maneuvers.

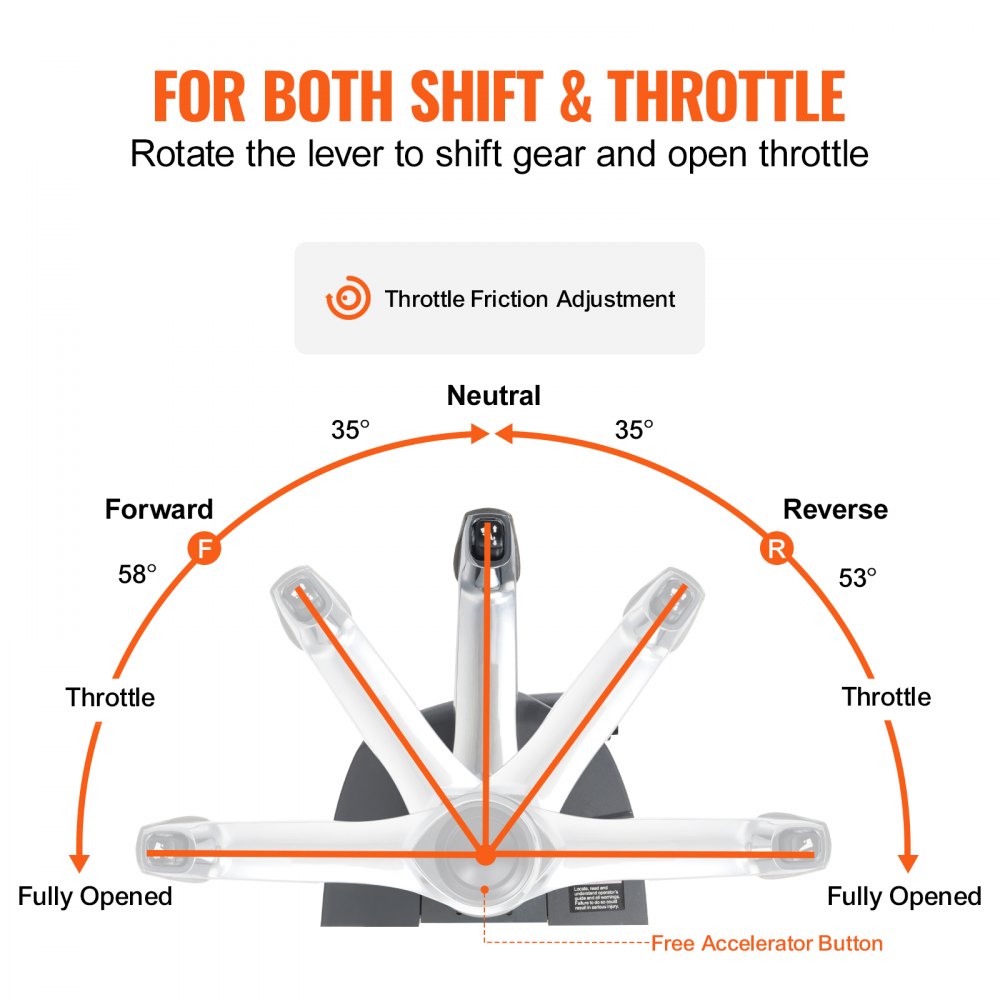

Smooth Operation: Press the neutral release button to shift into gear. Push forward about 35° into forward gear, and push back about 35° into reverse gear. The front-end friction adjustment knob provides personalized control over throttle operation, allowing you to manage speed and thrust with precision.

Trim and Tilt Switch: Enhance your boating experience with the power trim and tilt switch directly on the control lever handle. This design allows for easy adjustment of the stern engine`s position, aiding in cargo loading/unloading and preventing prolonged engine immersion. Press "↑" to tilt the engine upward and "↓" to tilt the engine downward. The outboard remote control is equipped with a low-temperature air-fuel ratio adjustment function, which can adjust the fuel and air mixture ratio in cold weather, helping to ensure that the vessel can operate reliably in extreme temperatures.

Emergency Stop Switch Lanyard: Our outboard engine throttle control box includes an emergency stop switch lanyard. This lanyard halts the engine automatically if the driver is unexpectedly displaced, preventing accidents. The lanyard can securely attach to the driver`s waistband or wrist for added security.

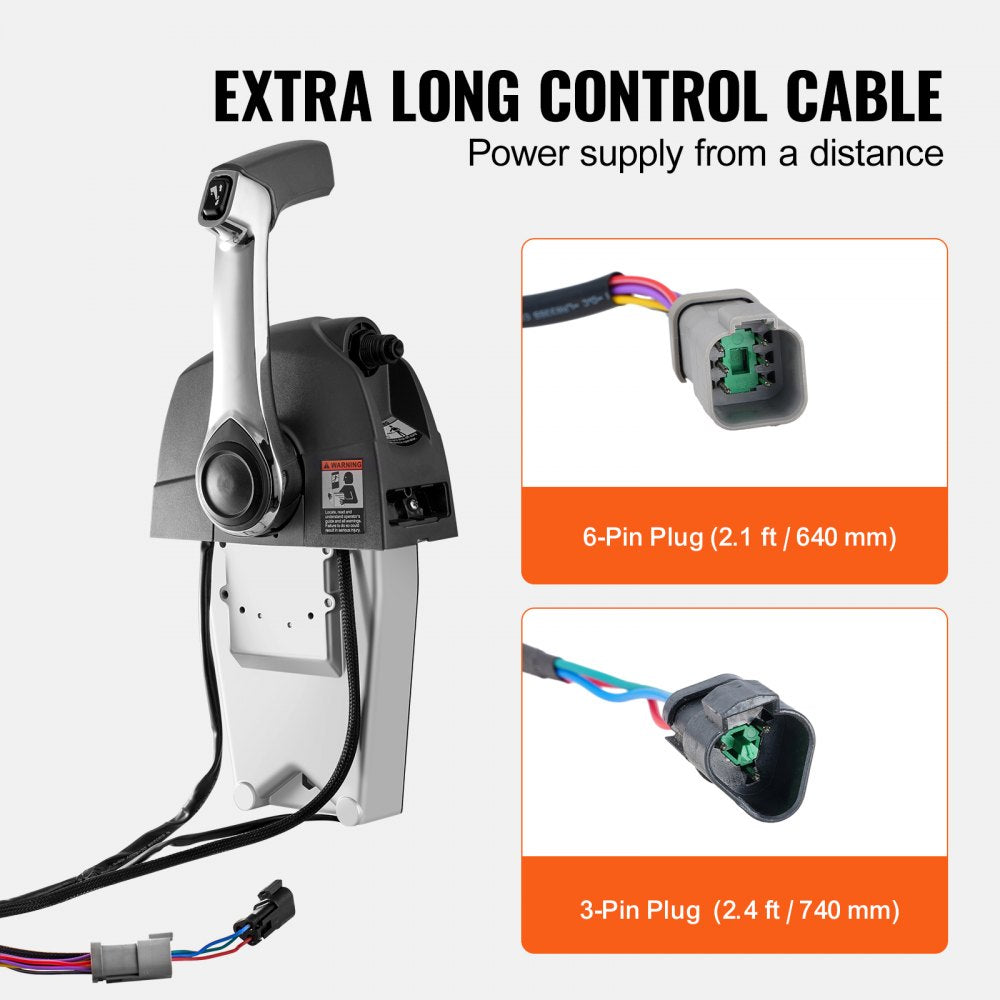

Long Control Cable: Our remote control box has a 2.1 ft/640 mm long harness with a 6-pin connector, and a 2.4 ft/740 mm long harness with 3-pin connector, ensuring ample reach for remote power supply setups. During installation, turn off the ignition, remove the key, disconnect all cables and power, and measure the cable length.

Boat Throttle Control, 5006186 Top-Mounted Outboard Remote Control Box for Evinrude Johnson, Marine Throttle Control Box with Power Trim Switch and Lanyard
Fit for Evanruder Johnson
Smooth Operation
Engine-Friendly Design
Safety Comes First
Installation Tips
Durable Key

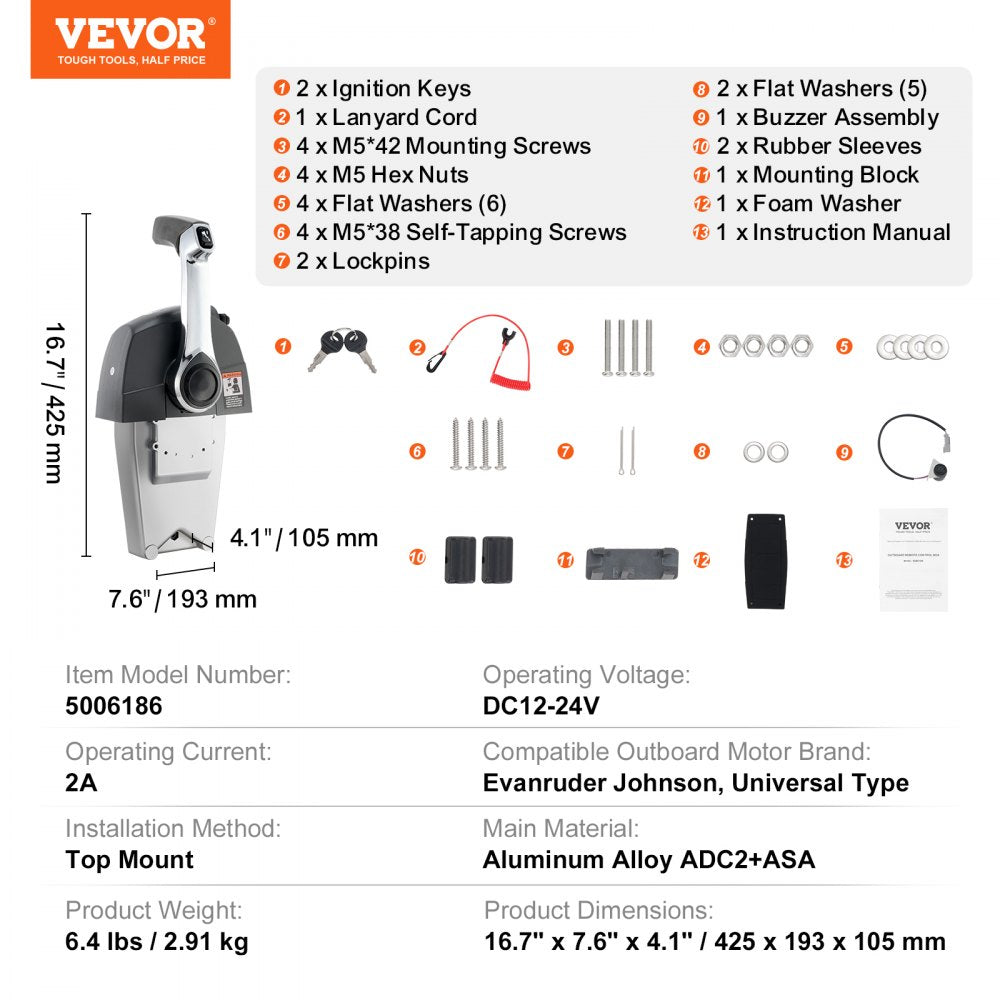

Installation Method: Top Mount,Compatible Outboard Motor Brand: Evanruder Johnson, Universal Type,Operating Voltage: DC12-24V,Item Model Number: 5006186,Product Weight: 6.4 lbs / 2.91 kg,Cable Length: 2.1 ft/640 mm, 2.4 ft/740 mm,Number of Cable Pins: 6-Pin Plug, 3-Pin Plug,Product Dimensions: 16.7" x 7.6" x 4.1" / 425 x 193 x 105 mm,Operating Current: 2A,Main Material: Aluminum Alloy ADC2+ASA
