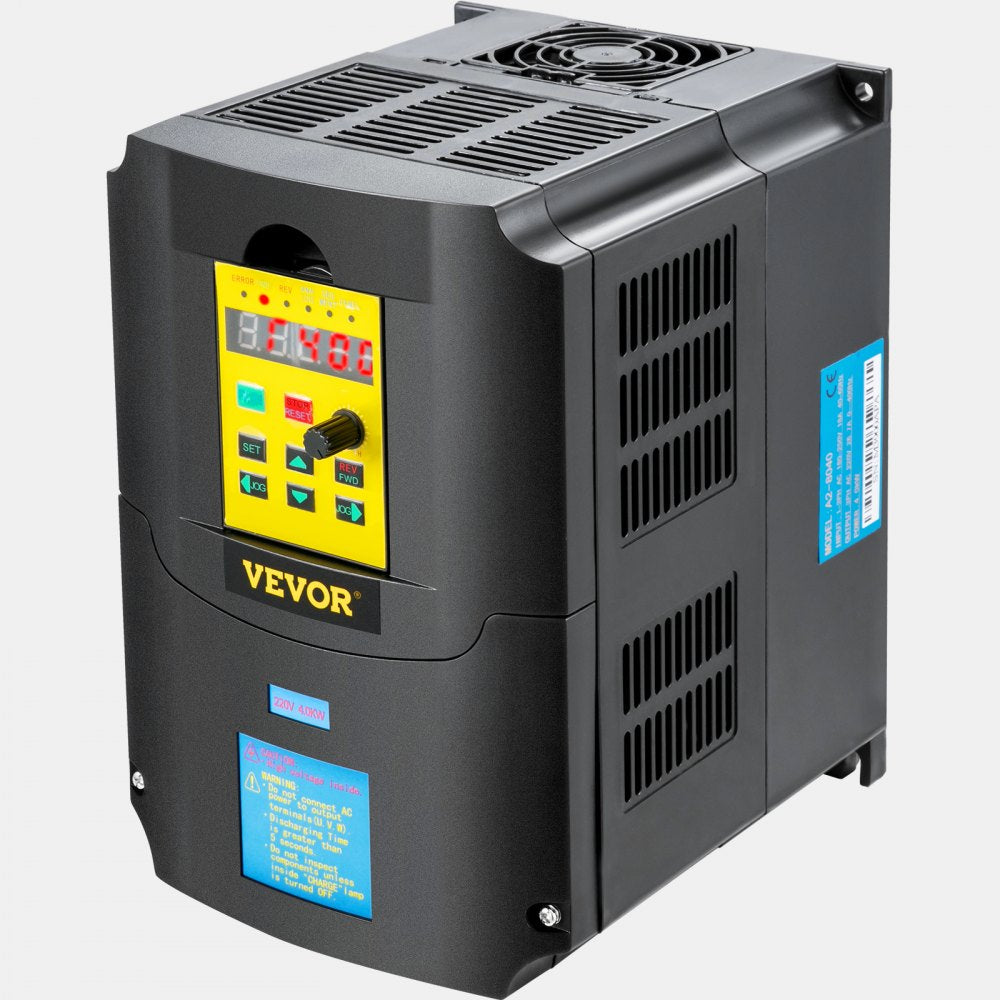

4 KW Variable Frequency Drive
Stable Performance & Digital Display & Mute Operation
This VFD converter can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). In addition, it can be used as a motor speed control and a phase converter. The input for this VFD is 1 or 3 phase, and the output is 3 phase. You can control the different speeds you like when you use this VFD. This item uses Sine wave PWN(SVPWM) for the control system and performance excellently. It also has passed CE certification.
- Note: This product is delivered randomly in black and white.
- Powerful Function
- Low-Noise Operation
- Smart Digital Display
- Multiple Protection

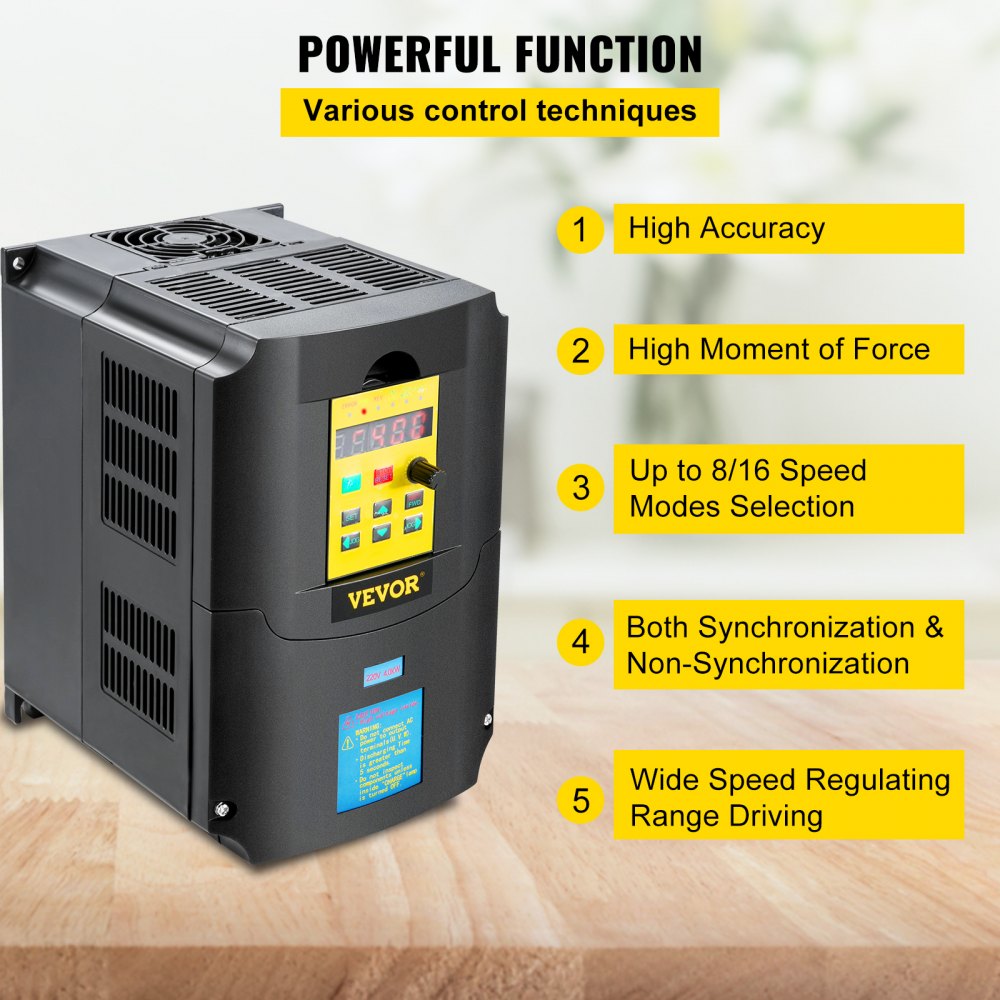

Unique Control Method
This VFD uses a unique control method to achieve the high moment of force, high precision, and wide speed regulating range driving. It can realize functions like up to 8/16-segment speed control, a program running, 4-segment acceleration/deceleration switching, etc.
High-Quality Material
The case of CNC VFD is made of ABS flame retardant material which features strong crash-proof capabilities, good flame retardancy with a non-corrosive coating. In addition, it has good tripping prevent performance and the ability to adapt to rough power, temperature, humidity, and dust interference, greatly improved stability. The capacitor can withstand temperatures up to 105℃, higher than ordinary ones (80℃).

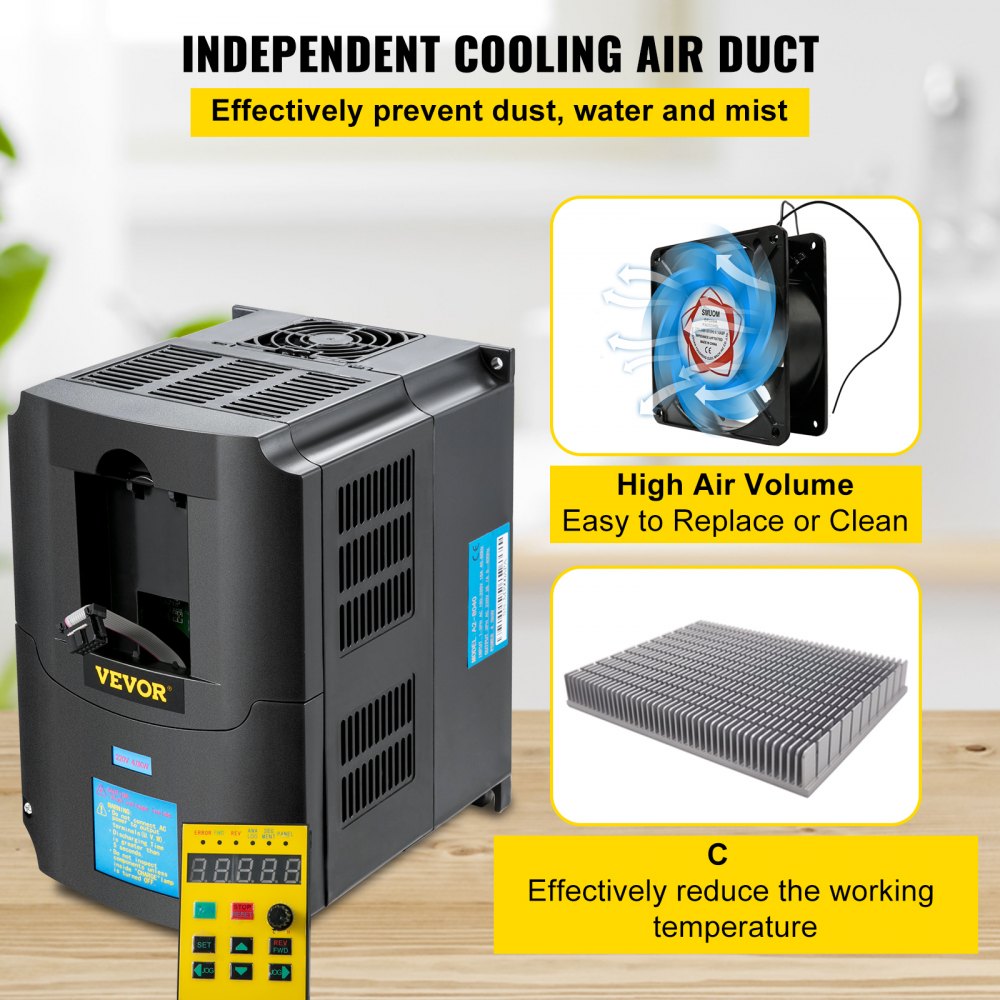

High Air Volume
The VFD drive is equipped with fan cooling and a built-in radiator. It has an efficient heat dissipation ability, ensuring a suitable temperature inside the VFD. In addition, the independent air duct is designed for electrical and contaminant isolation, allowing the product to be used in harsh environments.
Smart Digital Display

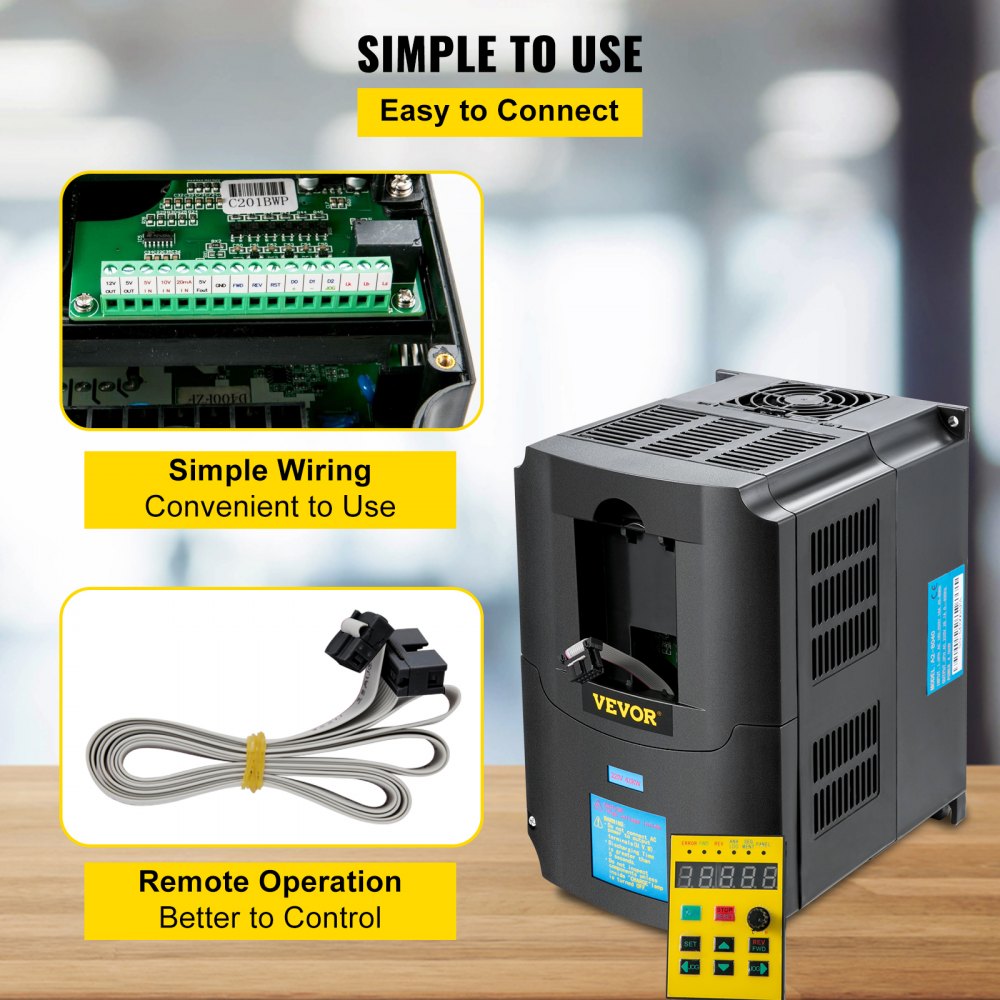

After the panel is disassembled, it can be connected to the corresponding interface to achieve remote control. Reasonable layout and intuitive & clear digital display increase the convenience of daily use.
Multiple Protection
Many protection ways are adopted to ensure the stable and reliable operation of the CNC variable frequency drive inverter, like overload protection, fuse protection, over-voltage or under-voltage protection, etc.

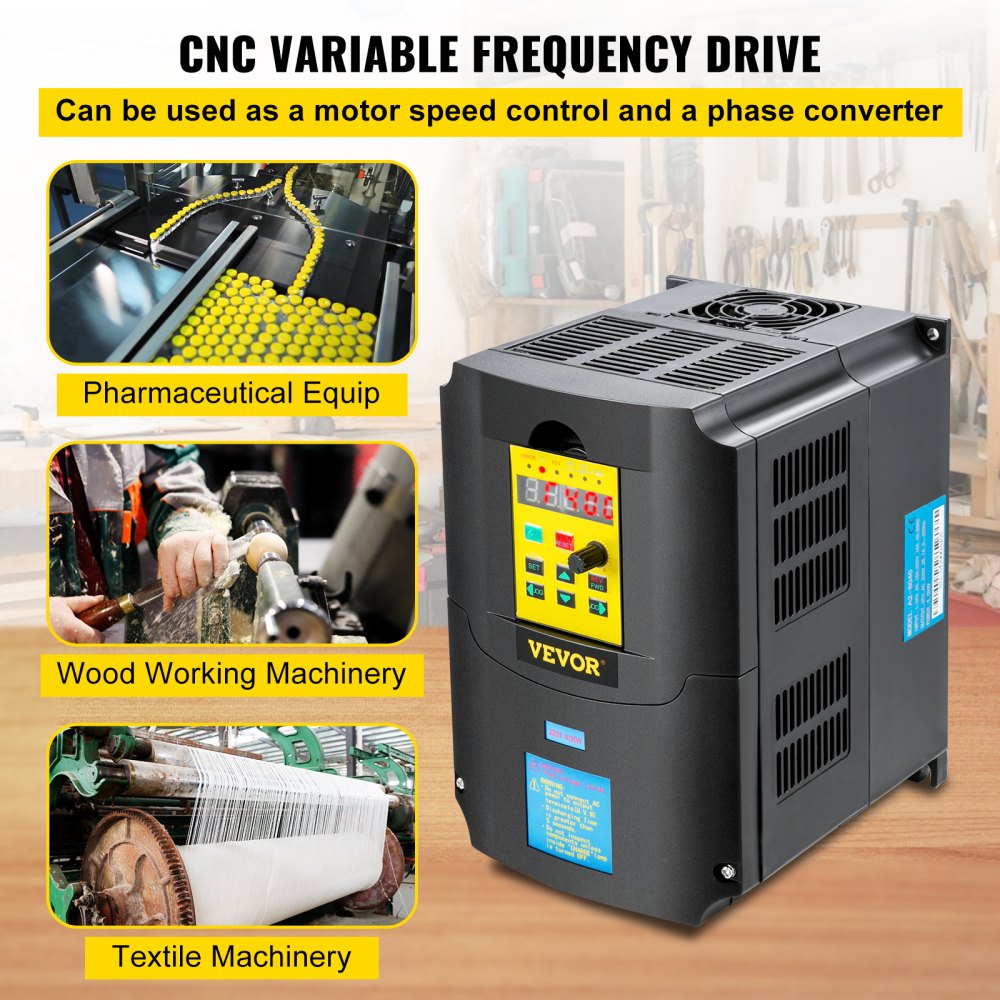

Wide Application
The variable frequency drives are applied in machinery winding machines, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, elevator, and other speed control machines.
Specifications
- Model: H100-4S2-1B
- Power: 4 kW
- Input Voltage: 220V
- Output Voltage: 0-220V
- Input Current: 0-17A
- Output Current: 0-17A
- Input Phase: 1 or 3 Phase
- Output Phase: 3 Phase
- Input Frequency: 50/60 Hz
- Output Frequency: 0-1000 Hz
- Horsepower: 5.5 HP
- Working Temperature: 23~104℉/-5 ~ 40 ℃
- Humidity: 0-90% Relative Humidity (without dew)
- Vibration: Below 0.5 G
- Net Weight: 5.73 lbs / 2.6 kg

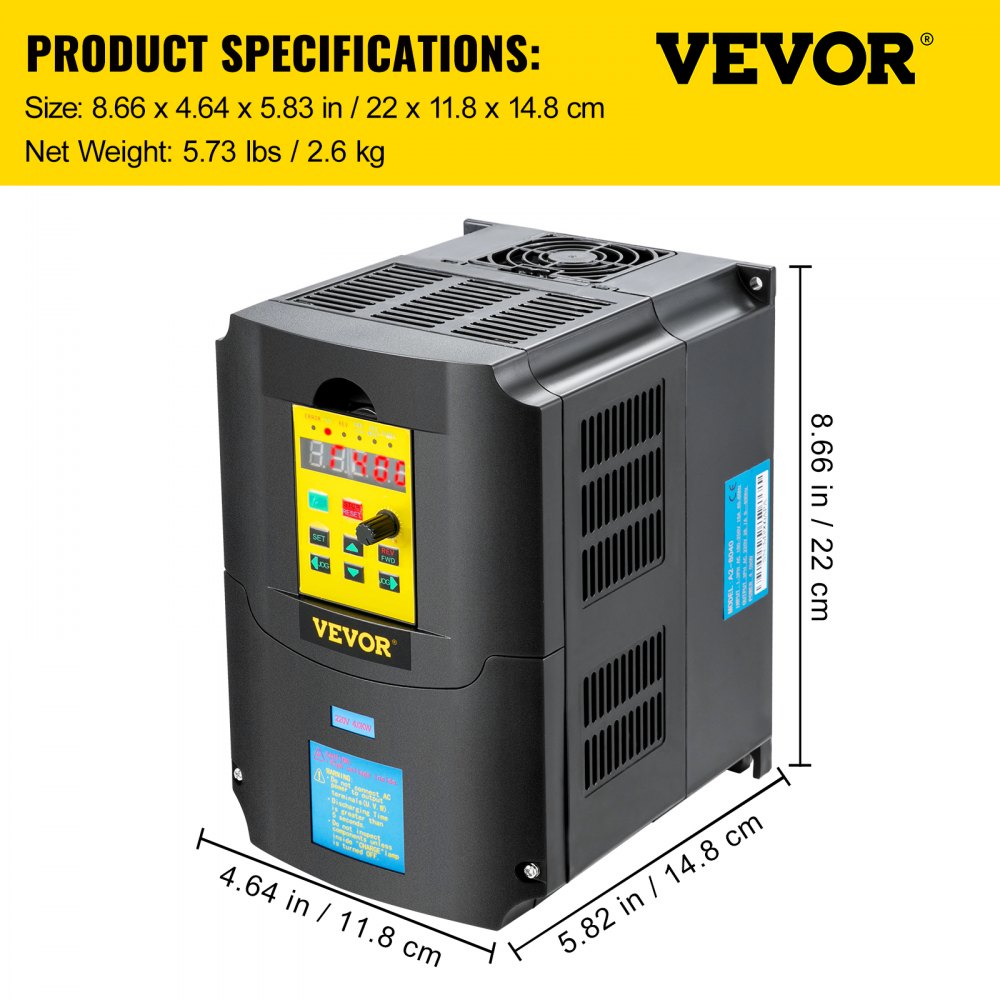

- Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm
Package Content
- 1 x 4 KW Variable Frequency Drive Inverter
- 1 x English Manual
- 1 x Extension Wire
