Description

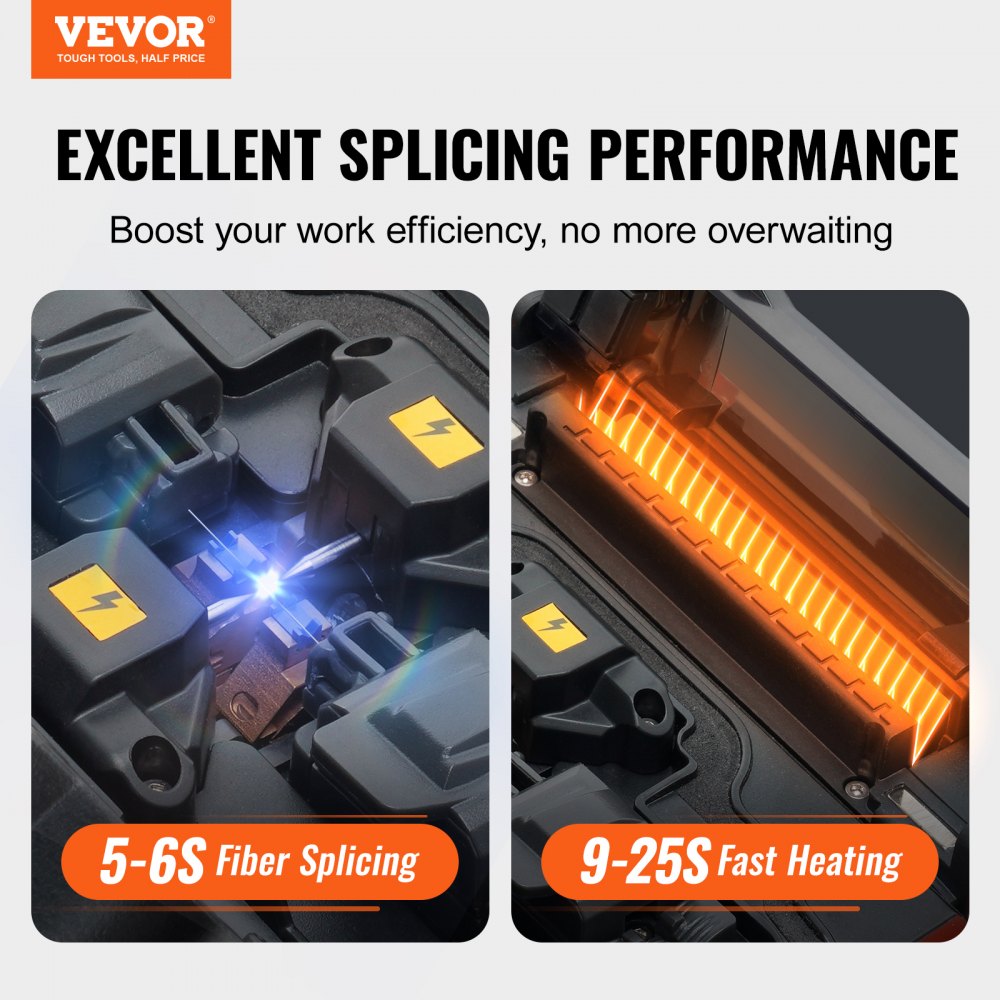

xHighly Splicing Efficiency: fiber fusion splicer boasts 6 high-precision motors, core alignment and autofocus function, supporting rapid splicing in as fast as 5-6 seconds and quick heating in 9-25 seconds, with fusion loss as low as 0.01dB(MM).

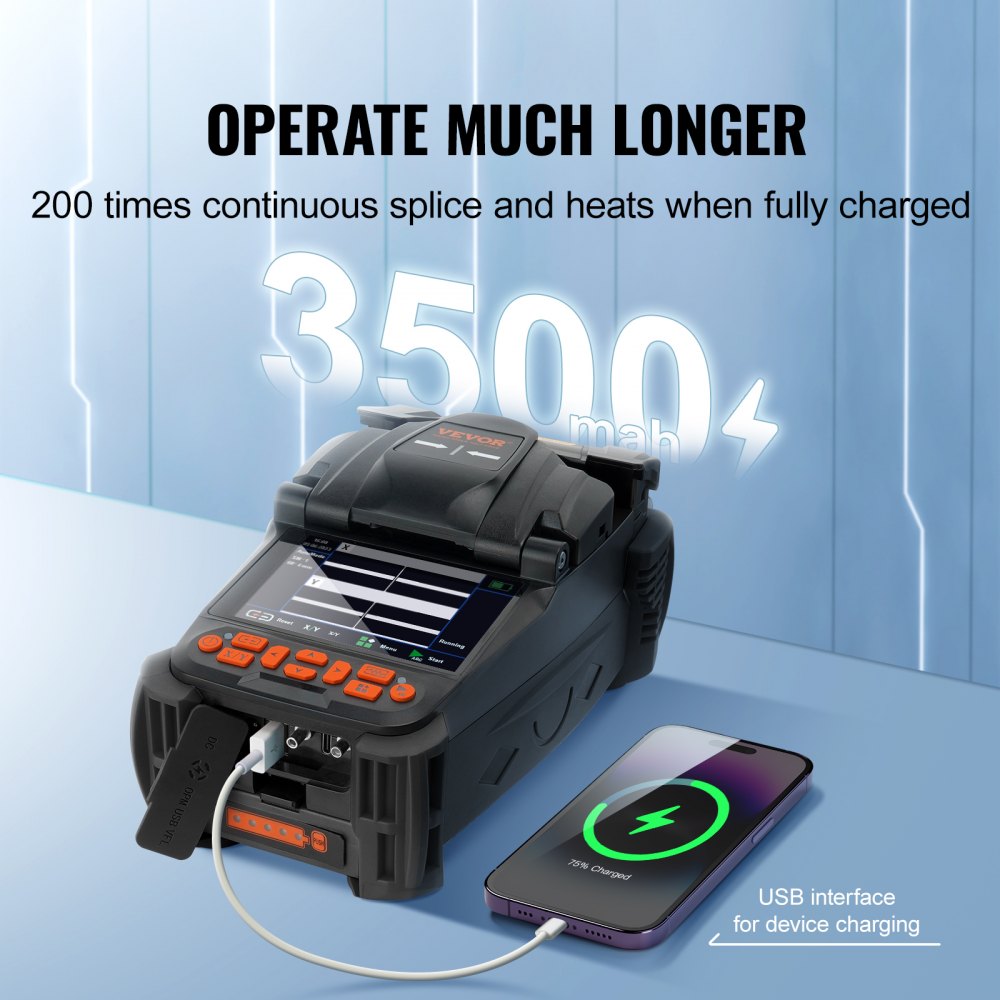

Operate Much Longer: Built in 3500mAh high-capacity rechargeable battery can perform over 200 continuous fusion splicing and heating cycles on a full charge. There is a USB port on the side, allowing for charging mobile phones, lighting devices, and more.

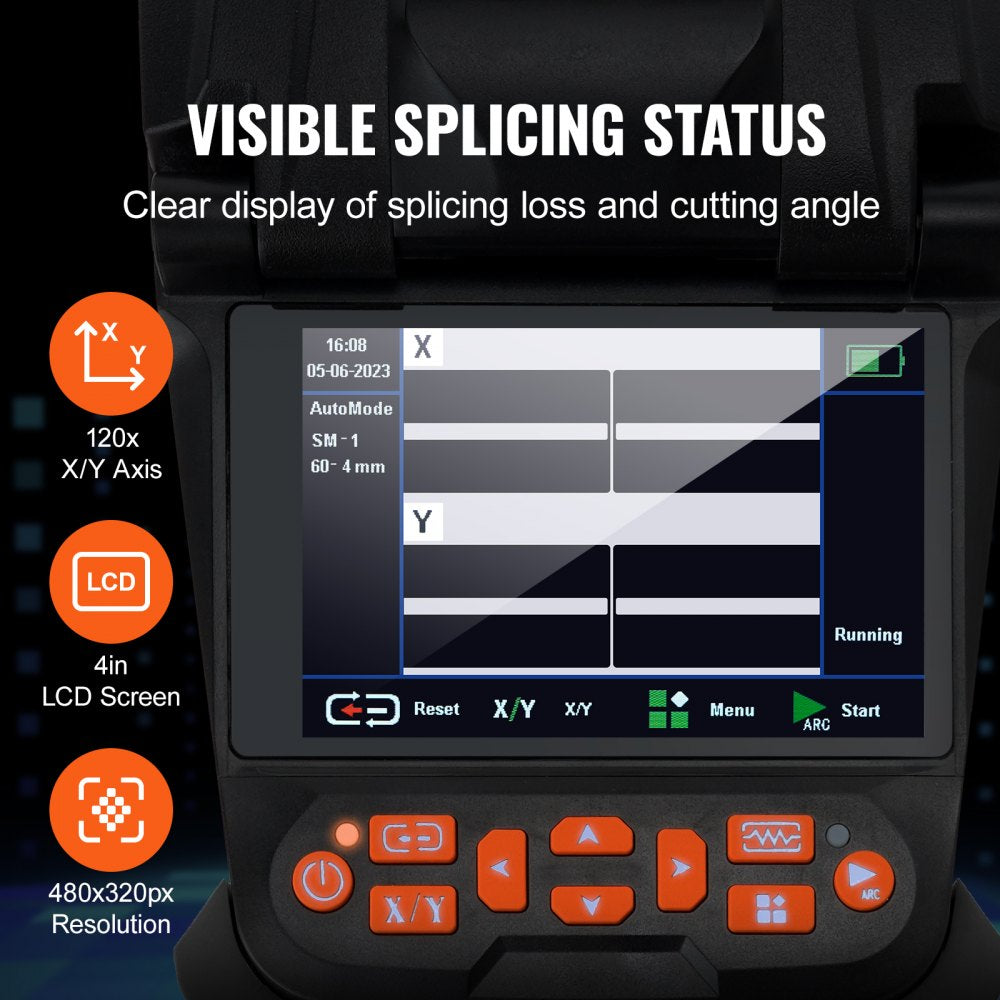

Image Storage: Automatically capture and save crucial images during the fiber fusion process, providing you with a visual record. 4-inch high-resolution LCD screen offers independent 240x X or Y magnification display and simultaneous 120x X/Y display, ensuring clear and visible fiber cores.

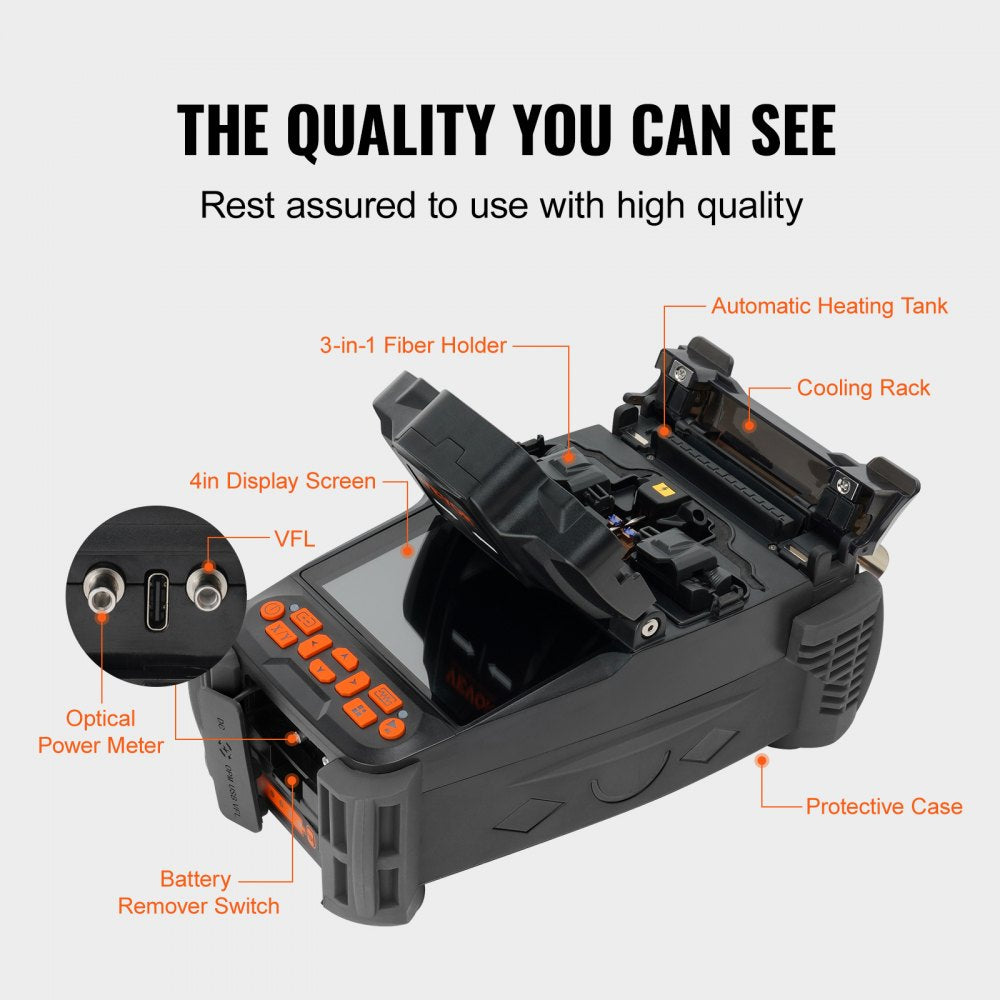

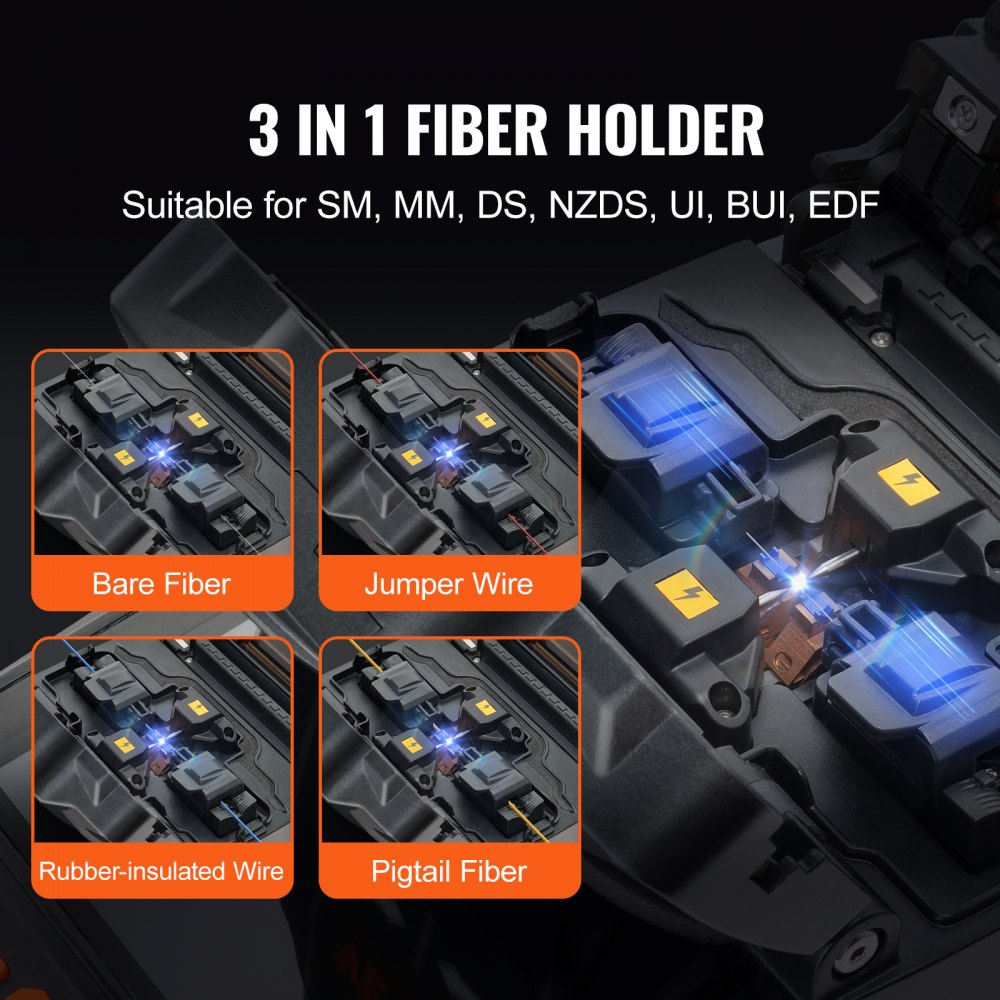

Wide Applications: 3 in 1 optical fiber holder is widely compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers. Built-in OPM and VFL can effectively measure connection loss, verifying continuity and assessing fiber link transmission quality.

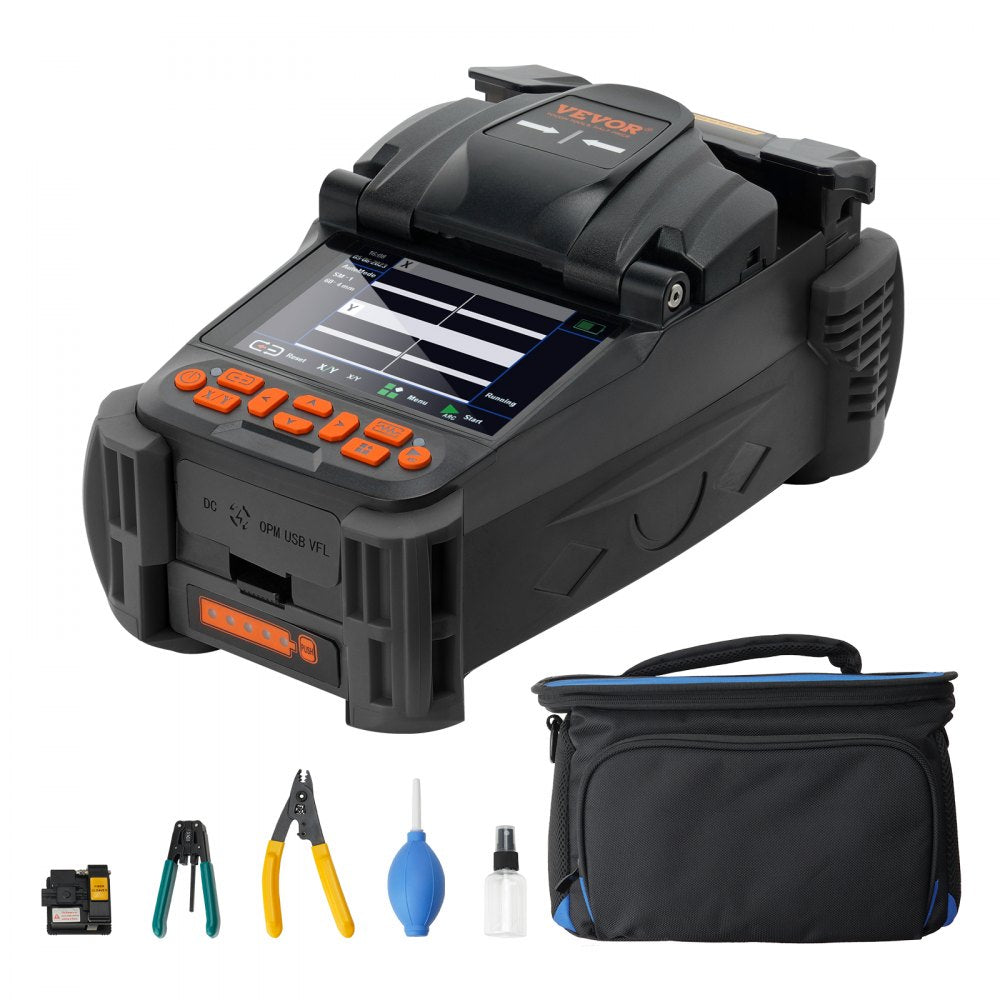

All-in-One Versatile Kit: Necessary tools are all ready for your fiber fusion work. Each optical fusion splicer kit includes a main unit, fiber cleaver, wire stripper, 3-hole stripper, alcohol dispenser, blowing ball, power adapter, power cord, cooling tray, and a portable carrying bag.
Fiber Fusion Splicer 6 Motors, Core Alignment Fiber Optic Fusion Splicer with 4" Digital LCD Screen, Image Storage, 3 in 1 Auto Focus Optical Fiber Holder Cleaver Kit 5-6s Splicing 9-25s Heating
6 High-Precise Motor
Fast Efficiency
Built to Last
Wide Applications
Bright in the Night
Board Applications
Applicable Fiber Diameter: 125-150μm (Cladding)
250-1000μm (Coating),Splicing Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS),Fiber Heat Shrink Tubes: 25 mm, 40 mm, 45 mm, 50 mm, 60 mm,Item Model Number: ALK-T1,Focus Mode: Arc Fusion Splicing,Product Weight: 7.05 lbs/3.2kg,Product Dimensions: 8.3 x 5.2 x 4.1 in / 210 x 133 x 105 mm,Applicable Fiber Types: SM, MM, DS, NZDS, UI, BUI, EDF,Number of Motors: 6
Operate Much Longer: Built in 3500mAh high-capacity rechargeable battery can perform over 200 continuous fusion splicing and heating cycles on a full charge. There is a USB port on the side, allowing for charging mobile phones, lighting devices, and more.
Image Storage: Automatically capture and save crucial images during the fiber fusion process, providing you with a visual record. 4-inch high-resolution LCD screen offers independent 240x X or Y magnification display and simultaneous 120x X/Y display, ensuring clear and visible fiber cores.
Wide Applications: 3 in 1 optical fiber holder is widely compatible with SM, MM, DS, NZDS, UI, BUI, and EDF fibers. Built-in OPM and VFL can effectively measure connection loss, verifying continuity and assessing fiber link transmission quality.
All-in-One Versatile Kit: Necessary tools are all ready for your fiber fusion work. Each optical fusion splicer kit includes a main unit, fiber cleaver, wire stripper, 3-hole stripper, alcohol dispenser, blowing ball, power adapter, power cord, cooling tray, and a portable carrying bag.
Fiber Fusion Splicer 6 Motors, Core Alignment Fiber Optic Fusion Splicer with 4" Digital LCD Screen, Image Storage, 3 in 1 Auto Focus Optical Fiber Holder Cleaver Kit 5-6s Splicing 9-25s Heating
6 High-Precise Motor
Fast Efficiency
Built to Last
Wide Applications
Bright in the Night
Board Applications
Applicable Fiber Diameter: 125-150μm (Cladding)
250-1000μm (Coating),Splicing Loss: 0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB (NZDS),Fiber Heat Shrink Tubes: 25 mm, 40 mm, 45 mm, 50 mm, 60 mm,Item Model Number: ALK-T1,Focus Mode: Arc Fusion Splicing,Product Weight: 7.05 lbs/3.2kg,Product Dimensions: 8.3 x 5.2 x 4.1 in / 210 x 133 x 105 mm,Applicable Fiber Types: SM, MM, DS, NZDS, UI, BUI, EDF,Number of Motors: 6
