Charging Station Box
28`` x 20`` x 10`` & Anti-Theft & Efficient Heat Dissipation
The charger station box is made of high-quality carbon steel. A combination lock design, high-strength hinges, and IP32 protection level are all used to secure your EV charger/home charger station. It also can keep cables and power supplies secure and tidy. Breathable air outlets facilitate you to experience less heat build-up, so you can continue to experience consistent high performance. Get ready for all-around great protection that can`t be beaten, and Choose a name you can trust, .
- Built to Last
- Reinforced Lock & Hinge
- Exquisitely Designed
- Hassle-Free Operation
- Waterproof & Breathable

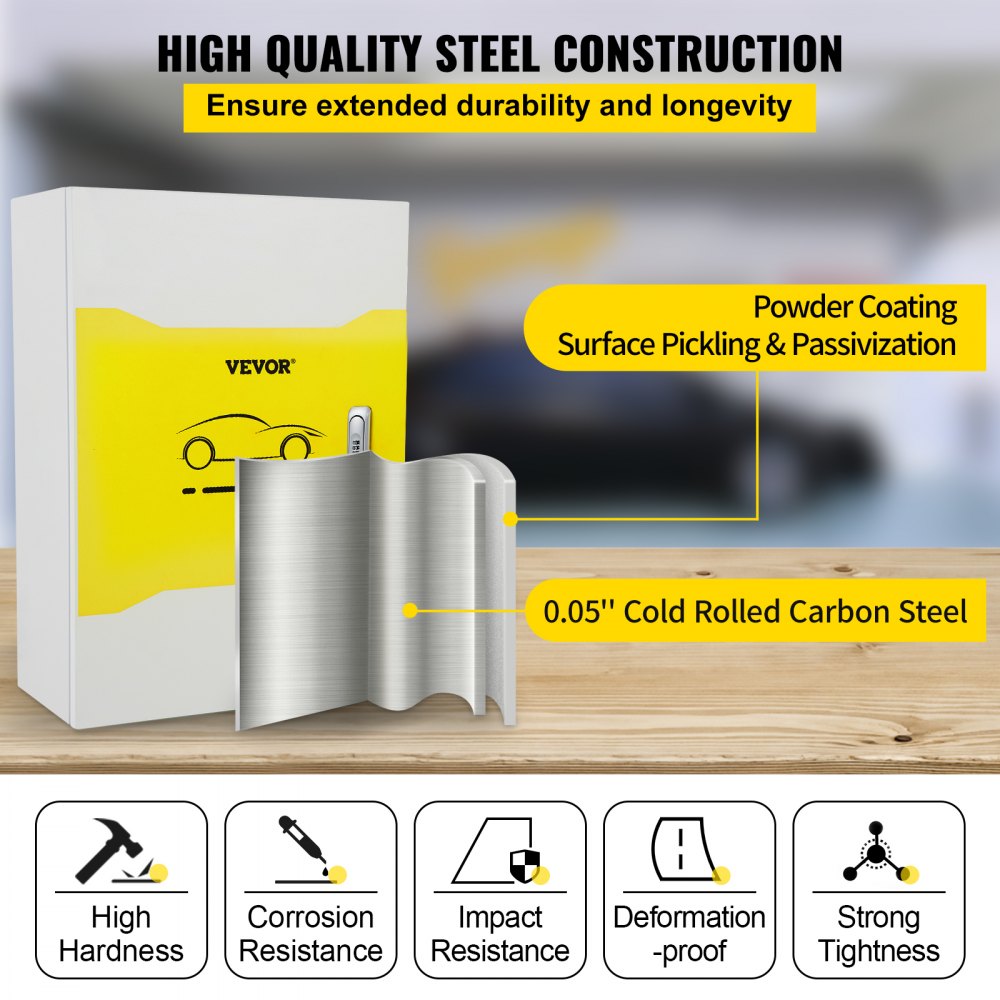

Premium Steel Material
The charger storage case features 0.05`` / 1.2 mm cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating, which has superb mechanical properties.

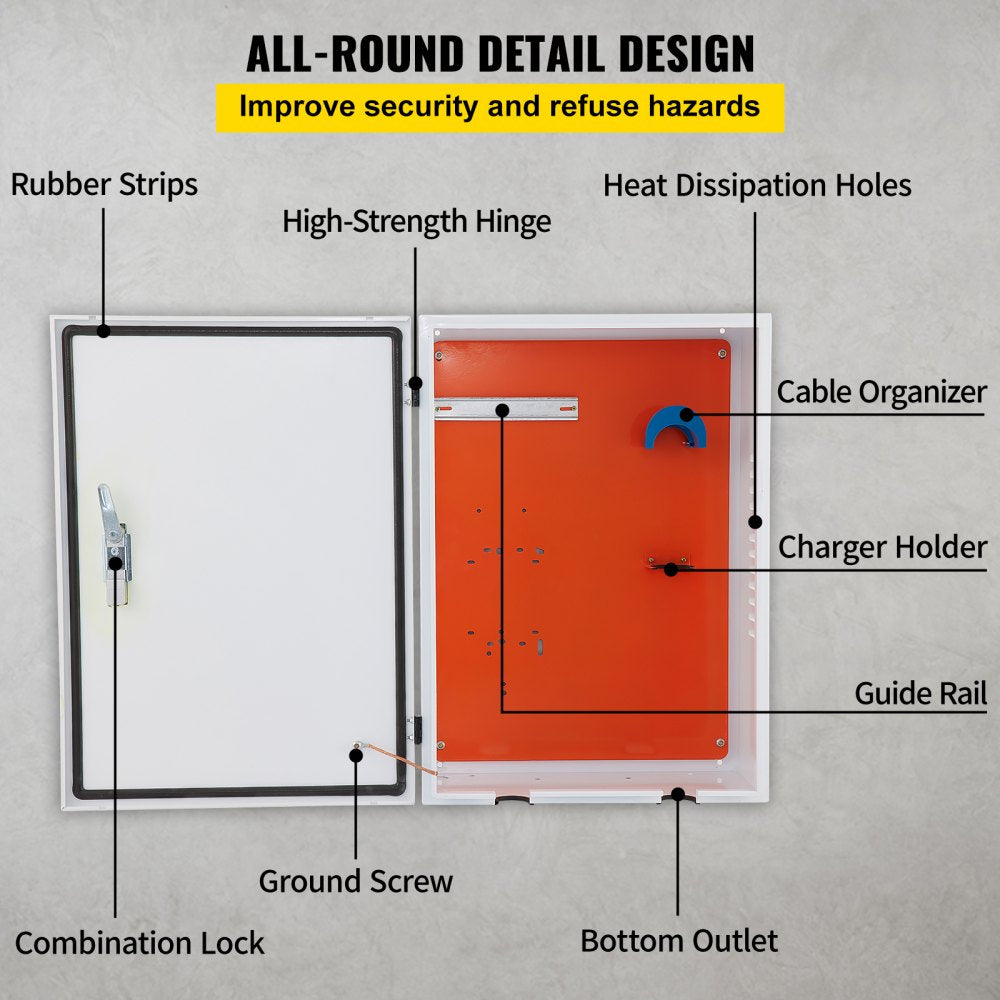

Enhanced Security
The reinforced hinge ensures that repeated opening and closing will not cause damage. The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening.

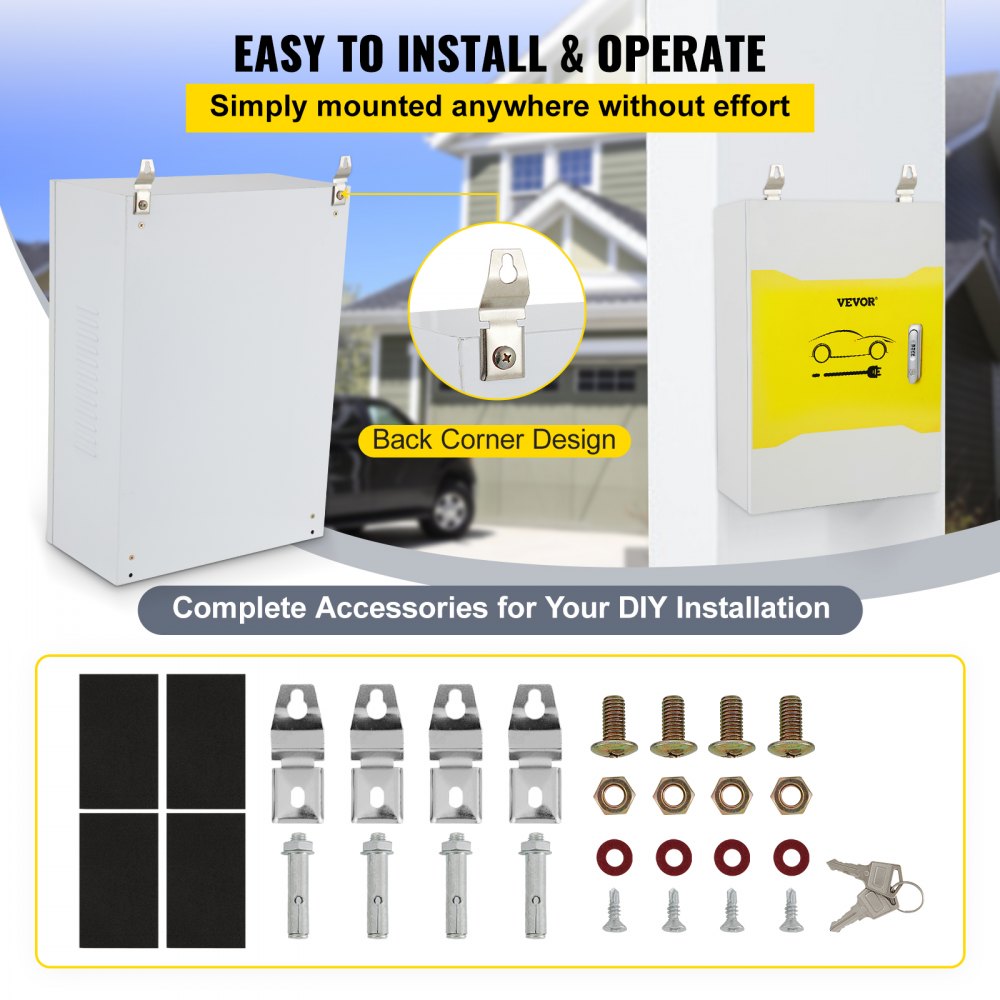

Set Up in Minutes
The combination lock can be set easily and used according to the instructions. We provide two keys, so you can open the outdoor charger station immediately if you forget the password.
Designed with You in Mind
The bottom outlet holes facilitate cable entering and exiting. Pre-installed guide rail allows electrical components to be installed effortlessly, and the cable organizer avoids tangles.

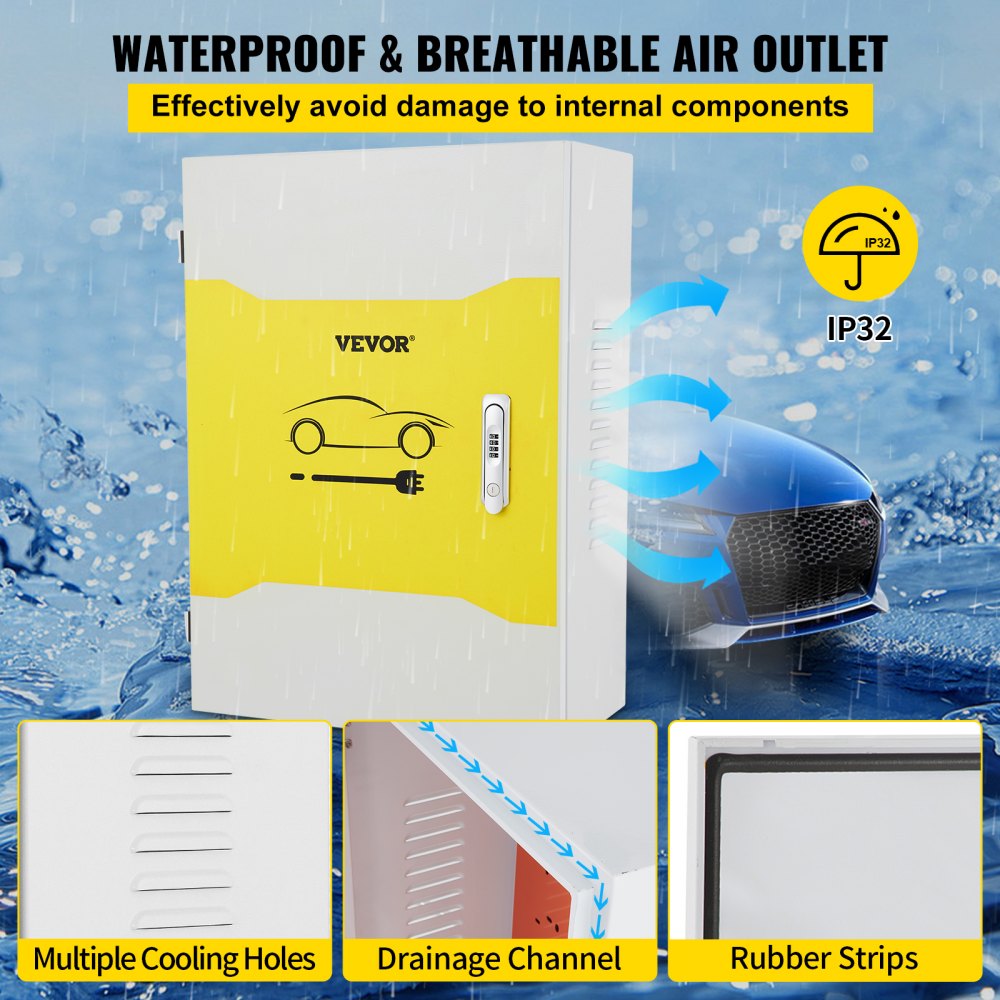

Let the Heat Out
There are multiple cooling holes on both sides of the EV charger lock box, allowing heat to be dissipated while charging. It also effectively blocks water from entering when it rains.
Extensive Application?

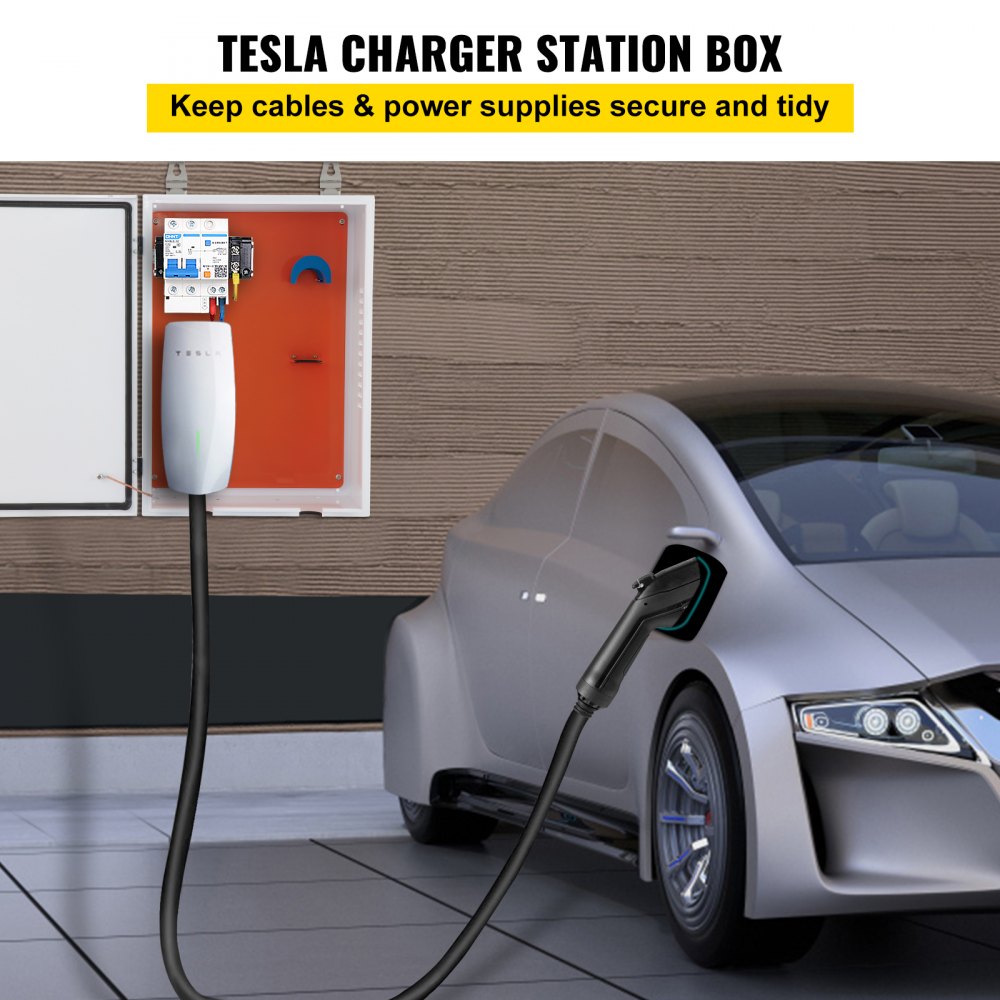

Our tesla charger box protects your EV charger from damage while keeping your space organized. You can install it anywhere you like, such as garage, underground parking, courtyard, etc.
Specifications
- Model: BOX-70x50x25
- Color: White RAL 7032
- Body Material: 0.05 in / 0.12 cm Cold-Rolled Carbon Steel
- Finish: Powder Coating (Surface Pickling and Passivization)
- IP Rating: IP32
- Mounting Hole Dia.: 0.3 in / 0.8 cm
- Galvanized Backplate Dimensions(H x W): 25.6 x 18.1 in / 65 x 46 cm

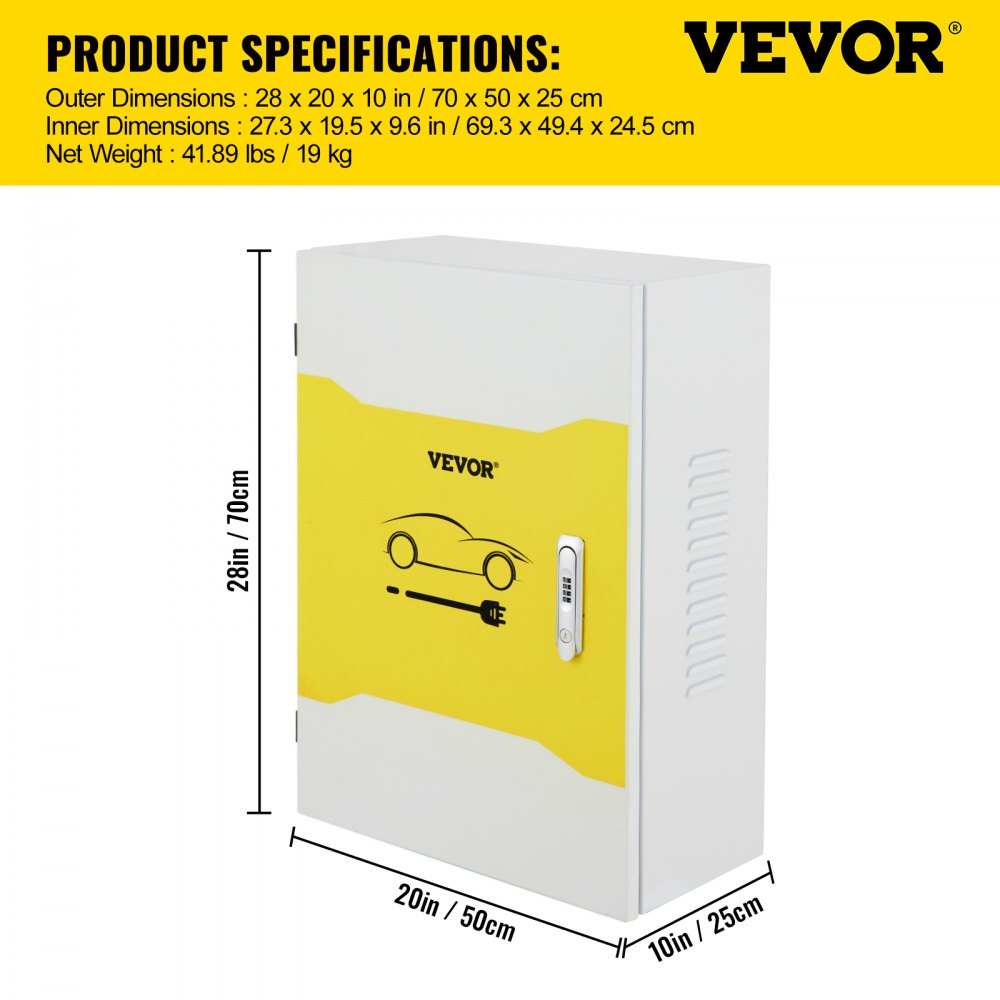

- Outer Dimensions (H x W x D): 28 x 20 x 10 in / 70 x 50 x 25 cm
- Inner Dimensions(H x W x D): 27.3 x 19.5 x 9.6 in / 69.3 x 49.4 x 24.5 cm
- Package Dimensions(H x W x D): 29.9 x 21.7 x 12.2 in / 76 x 55 x 31 cm
- Net Weight: 41.89 lbs / 19 kg
- Certification: ISO9001
- Ambient Temperature: -4℉ to 140℉ / -20℃ to 60℃
- Gasket Material: Insulating Rubber
- Mounting Type: Panel Mount
- Type: Hinged
- Configuration: With Coded Knock-Outs

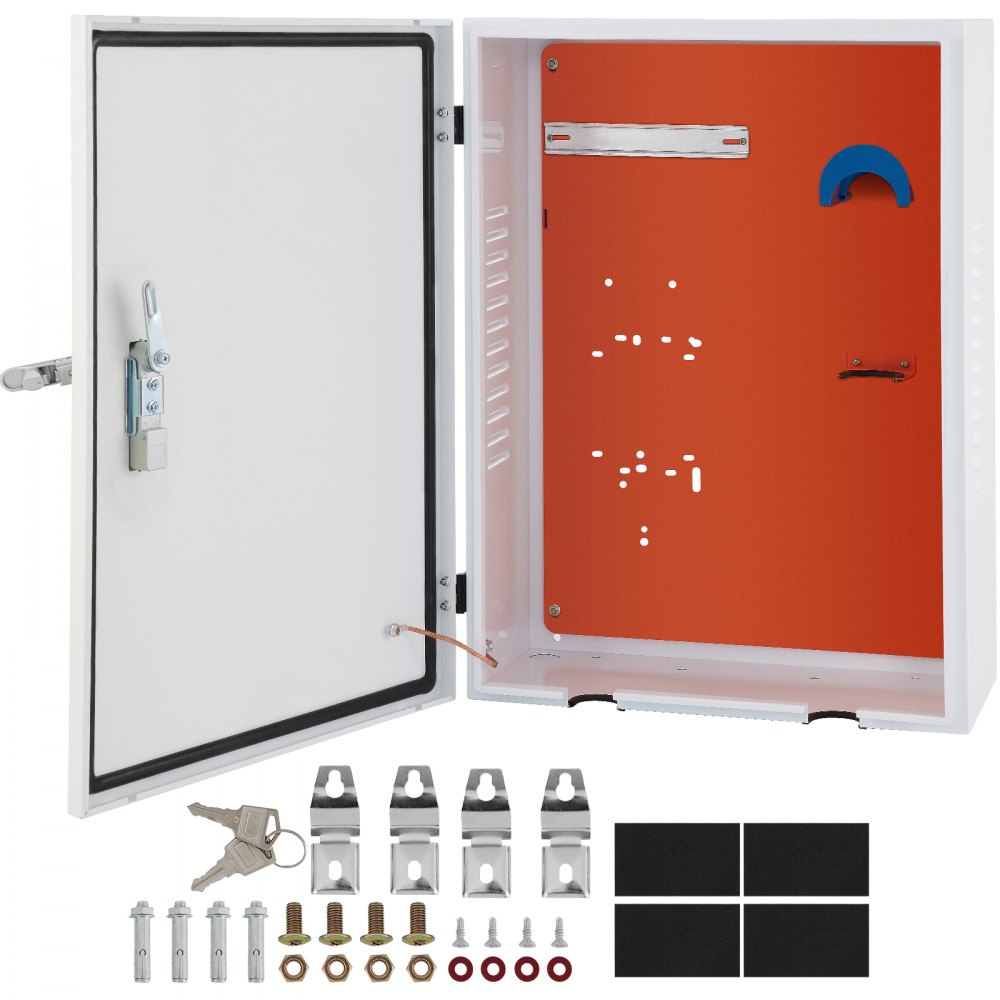

Package Content
- 1 x Charger Station Box
- 4 x Expansion Bolt
- 4 x Hanging Lug
- 4 x Waterproof Pad
- 4 x Anti-collision Pad
- 4 x Screw
- 2 x User Manual
