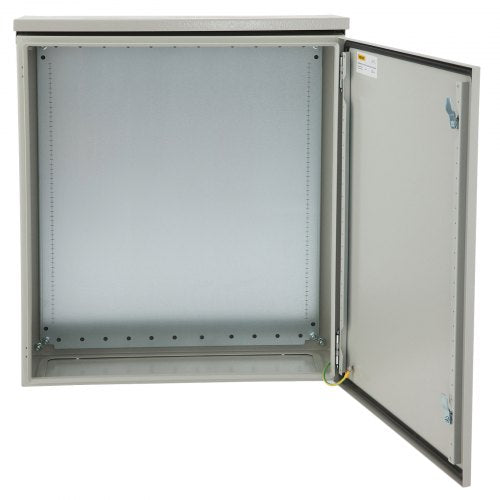

Electrical Enclosure Box--Begin your security setups!
24 x 24 x 8 in & Certified & IP65 Grade
The electric enclosure box is crafted from high-quality carbon steel. Precise lock design, high-strength hinges, and rain hood are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure box provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, .
- Sturdy Steel Construction
- IP65 Waterproof Grade
- Reinforced Lock & Hinge
- Convenient Operation
- Exquisitely Designed Details
Premium Steel Material
The electrical junction box metal features cold-rolled carbon steel for high toughness and rust resistance. Finish: Powder Coating (Surface Pickling & Passivization), has superb mechanical properties.
IP65 Protection Level
The IP65 protection level ensures protection from dust, moisture, water, rain, snow, oil, etc. It keeps all your electrical equipment dry and ensures greater security on construction sites.
Hinge and Lock Security
The inner lock core is made of metal to avoid damage caused by excessive force or unauthorized opening. The reinforced hinge ensures that repeated opening and closing will not cause damage.
Effortless Installation
The detachable galvanized backplate is easy to install on PCB boards, terminals, or any other electrical components that need a fixed position. There are also four mounting holes on the back for easy wall mounting.
Thoughtful Design
The detachable outlet hole at the bottom is convenient for cable entry and exit; the ground wire in the box has been installed in advance, and the rounded corners are designed to avoid damage to the cables.
Extensive Application
A hinged electrical enclosure is suitable for indoor and outdoor applications, which require the protection of circuits and other electrical components. Applicable to factories, construction sites, shopping malls, squares, etc.
Specifications
- Model: ST6620
- Color: RAL 7035 (White Gray)
- Body Material: 0.06 in / 0.15 cm Cold-Rolled Carbon Steel
- Inner Plate: 0.06 in / 0.15 cm Galvanized Plate
- Finish: Powder Coating(Surface Pickling and Passivization)
- Certification: TUV, CE, 508A (CSA C22.2 No. 14-13.)
- Ratings: NEMA Type 4
- Protection Grade: IP65, IK10
- Construction: Continuously Welded
- Ambient Temperature: -40 to 122℉ / -40 to 55°C
- Gasket Material: Seamless Foam/ Nylon(washer or plug)
- Outer Dimensions(H x W x D): 24 x 24 x 8 in / 60 x 60 x 20 cm
- Inner Dimensions(H x W x D): 23.5 x 23.5 x 7 in / 59.7 x 59.7 x 17.7 cm
- Galvanized Backplate Dimensions(H x W): 22.2 x 22 in / 56.5 x 55 cm
- Mounting Hole Diameter(± 0.2 cm): 0.35 in / 0.9 cm
- Net Weight: 55.56 lbs / 25.2 kg
Package Content
- 1 x Guide Rail
- 1 x Rain Hood
- 4 x Hanging Lug
- 1 x Gasket (For Enclosing Plate)
- 1 x Earth Wire
- 3 x Earth Label
- 2 x Key
- 8 x Plug
- 1 x Set of Accessories Package
- 1 x Set of Fasteners(Quantity Various on Type)
