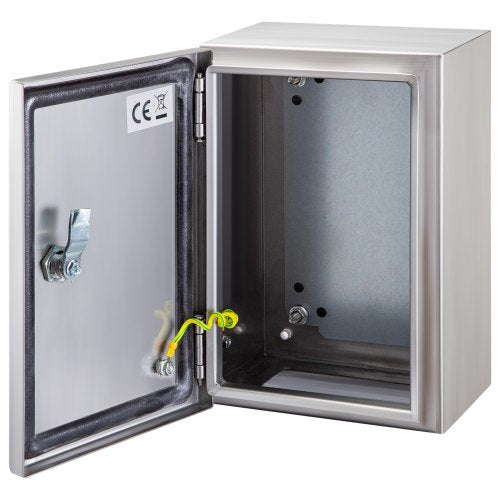

Electrical Enclosure Box--Begin your security setups!
16" x 12" x 8" & High Security & DIY Projects
The electric enclosure box is made of high-quality 304 stainless steel. Precise lock design, high-strength hinges, and sealing strips are all used to secure your plug-ins, power cords, and other equipment from harsh weather effects. Widely used for indoor and outdoor applications, such as electricity, construction, and other industries. A robust well-crafted electrical enclosure provides optimal protection and ensures consistent performance all year long. Choose a name you can trust, .
- Sturdy Steel Construction
- IP66 Waterproof Grade
- Reinforced Lock & Hinge
- Convenient Operation
- Exquisitely Designed Details
304 Stainless Steel
The junction box is made of 1.5 mm/0.059`` 304 stainless steel, features high toughness and rust resistance. The electrical enclosure is polished smoothly, and the drawing effect is beautiful and delicate.
Thickened Dust Lock
The inner lock core uses metal to prevent damage caused by excessive force. The durable and reliable cabinet door lock is applied for a convenient opening with longer service life.
High Strength Hinge
The electrical box adopts reinforced hinges, which will not be damaged if it is repeatedly opened and closed. The copper core spring can relieve the pressure when opening and closing the box door.
Rubber Sealing Strip
The sealing rubber strip is close to the box door with strong sealing performance to prevent dust and raindrops from dripping into the box and causing electricity leakage.
IP 66 & Protective
The IP66 waterproof design can effectively block splashing water, rain, dust, snow, oil into the electrical enclosure and causing damage. It can keep your equipment well-protected in harsh environments.
Effortless to Install
2MM detachable galvanized back plate can be removed and installed simply with high hardness and oxidation resistance. Four mounting holes on the back are convenient for wall-mounting.
Specifications
- Model: SP-B3 403020
- Material: 1.5 mm/0.059`` 304 stainless steel
- IP Rating: IP66
- NEMA Rating: NEMA 4X
- Mounting Type: Wall-Mount
- Mounting Plate: 2 mm/0.079`` Detachable Galvanized Back Plate
- Dimensions (H x W x D): 16 x 12 x 8"/400 x 300 x 200 mm
- Net Weight: 7.7 kg/16.98 lbs
- Application: Indoor/Outdoor
Package Content
- 1 x Electrical Box
- 1 x Mounting Plate(The mounting plate has been fixed in the box with screws and nuts)
- 1 x Set of Bottom Sealing Plate (including 1 x Sealing Plate, 1 x Waterproof Sponge, 6 x M5 Tapping Screws)
- 2 x Keys
- 1 x Set of Wall Mounting Pendants (including 4 x Pendant Sheets, 4 x M8 Screws, 4 x M8 Nuts, 4 x Seal Rings)
- 1 x Product Manual
- 1 x Installation Diagram
