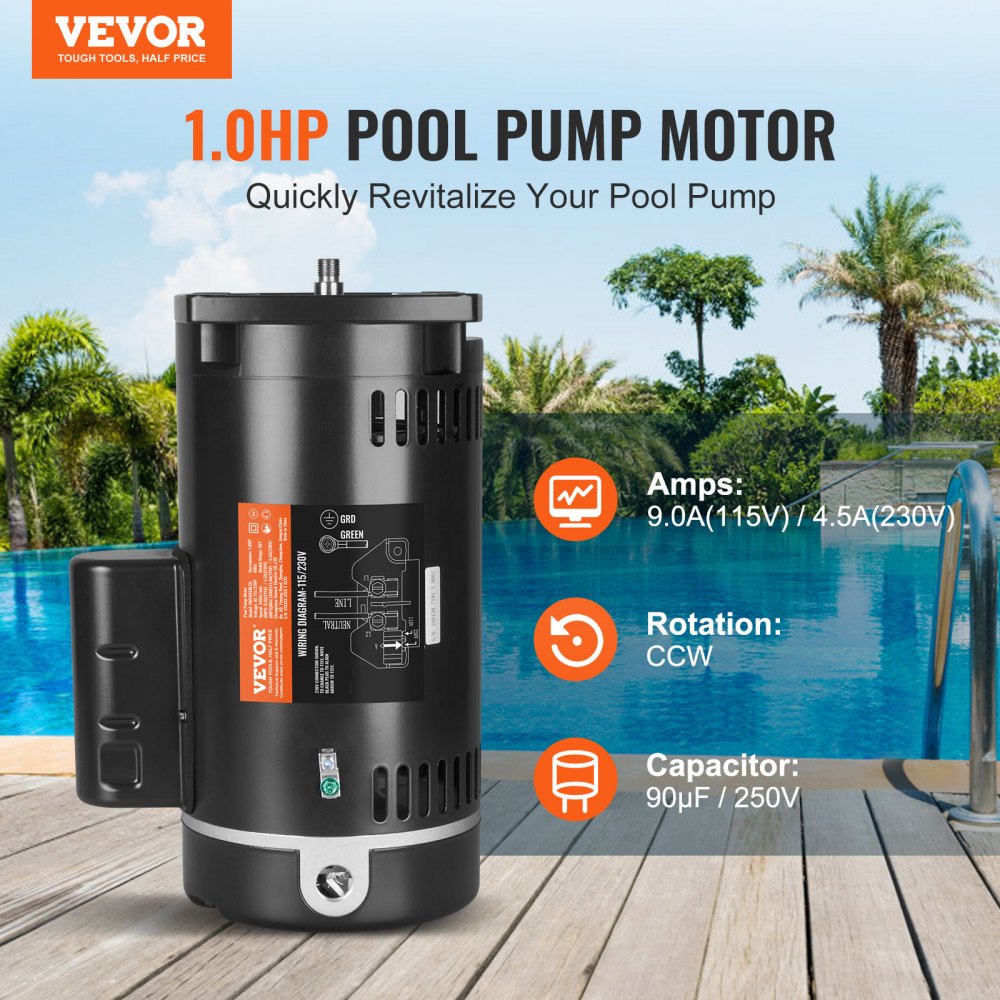

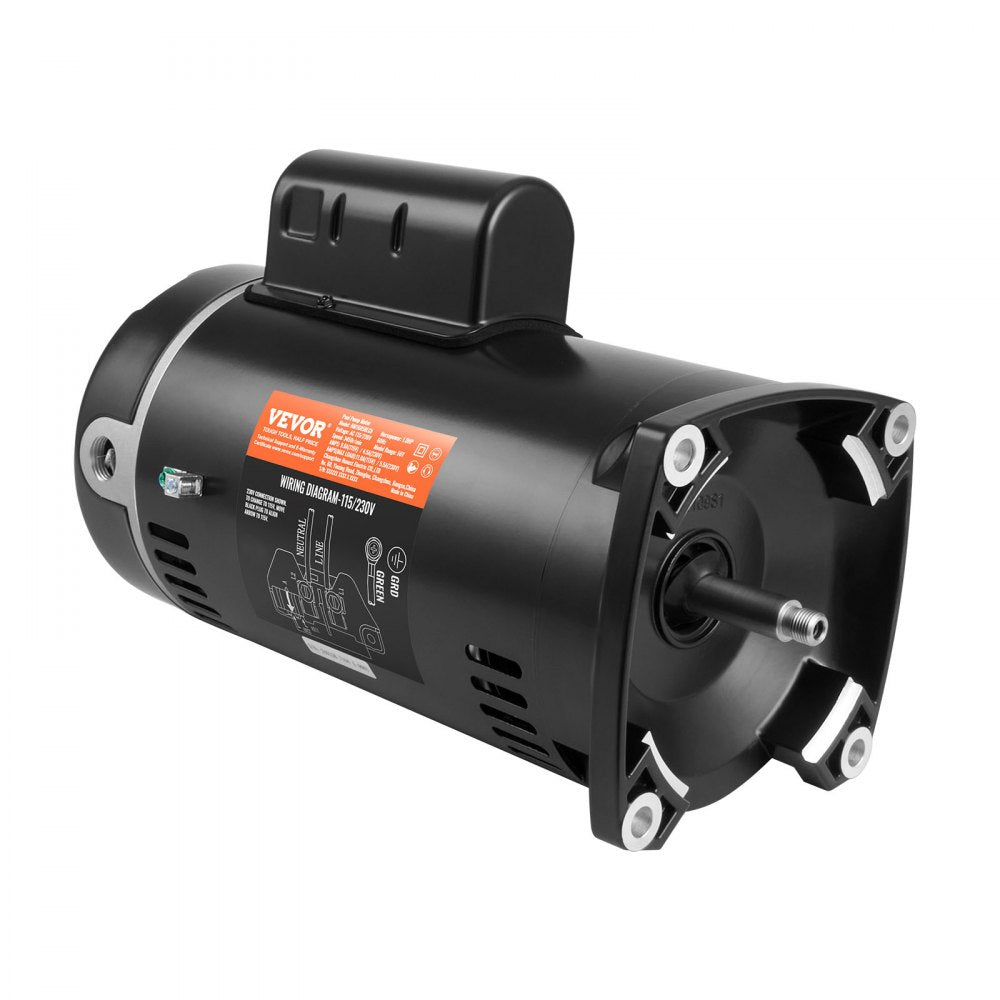

1 HP Pool Pump Motor, 56Y Frame, 115V(9 Amps)/230V(4.5 Amps) 3450RPM, 60Hz, 1.25 Service Factor, 90μF/250V Capacitor, CCW Rotation Square Flange Replacement Motor

Reliable Performance: 1HP pool pump motor runs at 3450RPM high speed, delivering high-efficiency water circulation and a refreshing pool pump system. Voltage - AC 115/230V

Amps: 9/4.5A

Amps (Max Load): 11/5.5A

SF: 1.25

Capacitor: 90μF/250V

Model Flange: 56Y.

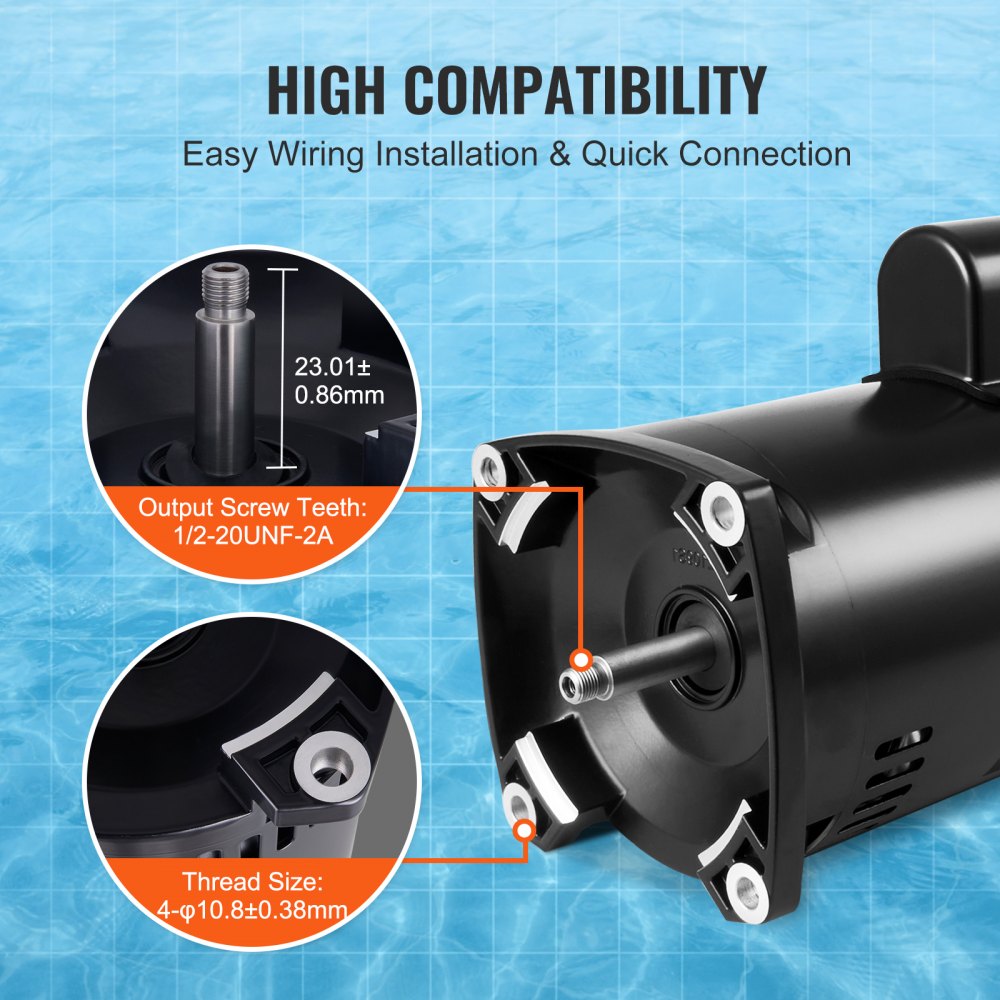

Easy Installation: Installing our pool pump motor is a breeze with a thread size of 4-φ10.8mm, output screw teeth of 1/2-20UNF-2A, and a 0.9-inch shaft extension. Get detailed installation instructions with the included user manual.

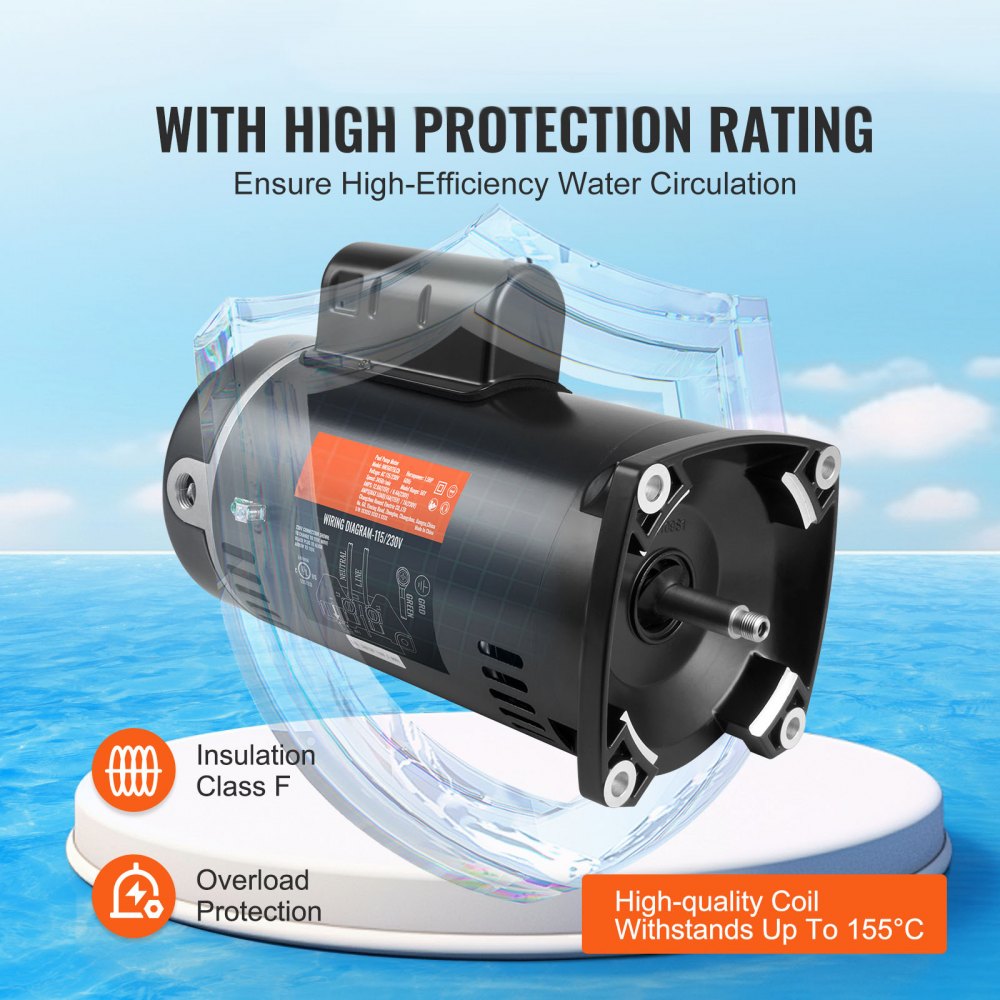

Safety and Durability: Our pool pump motor is fortified with corrosion-resistant steel housing, low starting torque, and ball-bearing construction. Combined tested to UL standards and overload protection, it ensures safe and enduring power support for pool system.

High Efficiency, Energy-Efficient: pool pump motor combines powerful performance with minimal energy consumption, operating at 3450RPM high speed while maintaining 70db low noise level. Dive into a refreshing pool experience with reliability and tranquility.

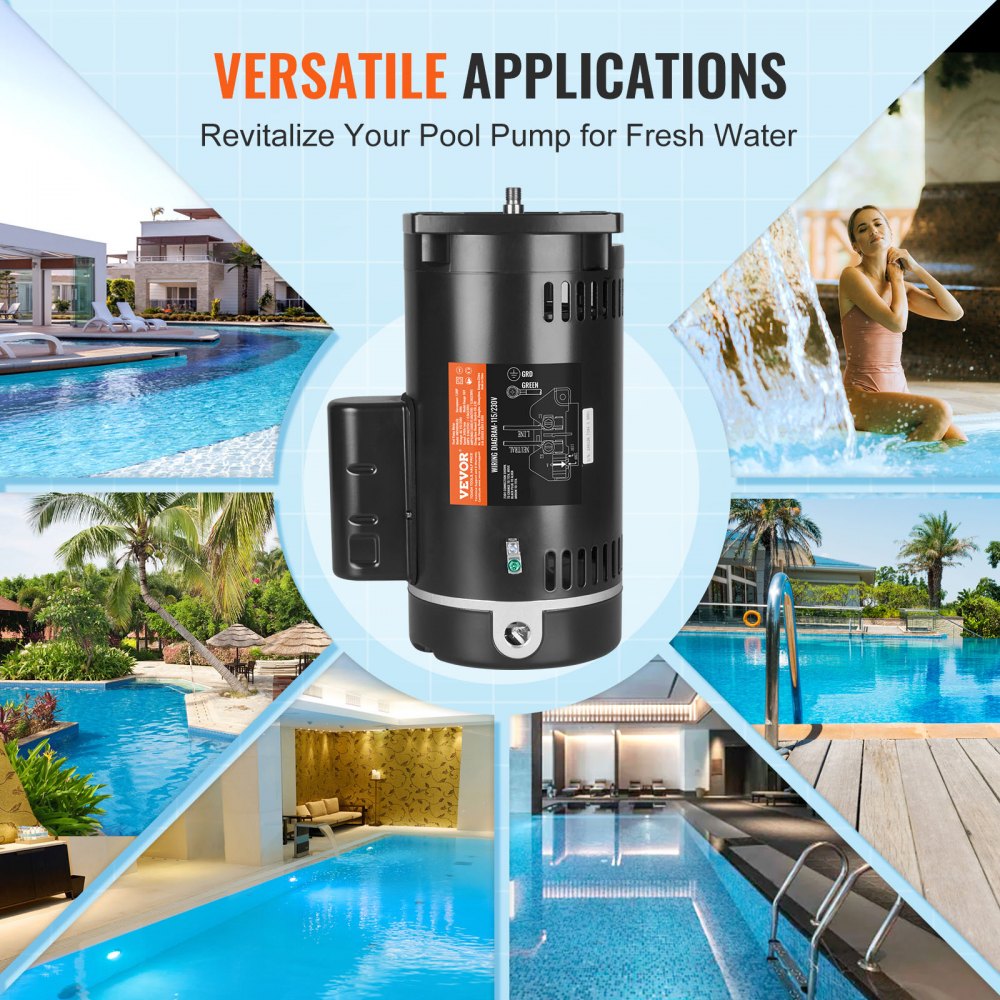

Revitalize Your Pool Pump: Pump it up for all your pools. Our versatile pool pump motor caters to various types of pools - from residential to commercial settings, bringing you a clean and clear swimming water environment, thereby enhancing pool performance and vitality.

1 HP Pool Pump Motor, 56Y Frame, 115V(9 Amps)/230V(4.5 Amps) 3450RPM, 60Hz, 1.25 Service Factor, 90μF/250V Capacitor, CCW Rotation Square Flange Replacement Motor

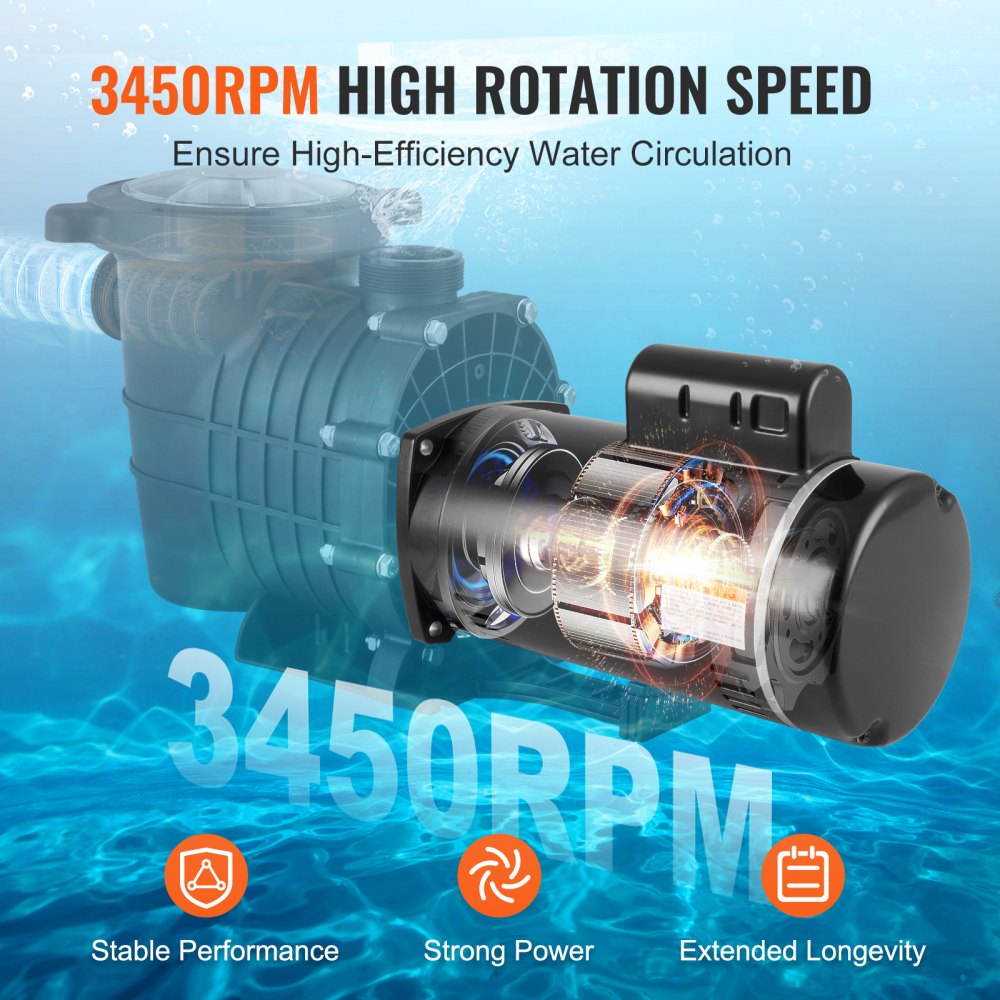

High-Speed Performance
Effortless Installation
Exceptional Durability
Stable Operation
Quiet Performance
Enhanced Swimming Experience

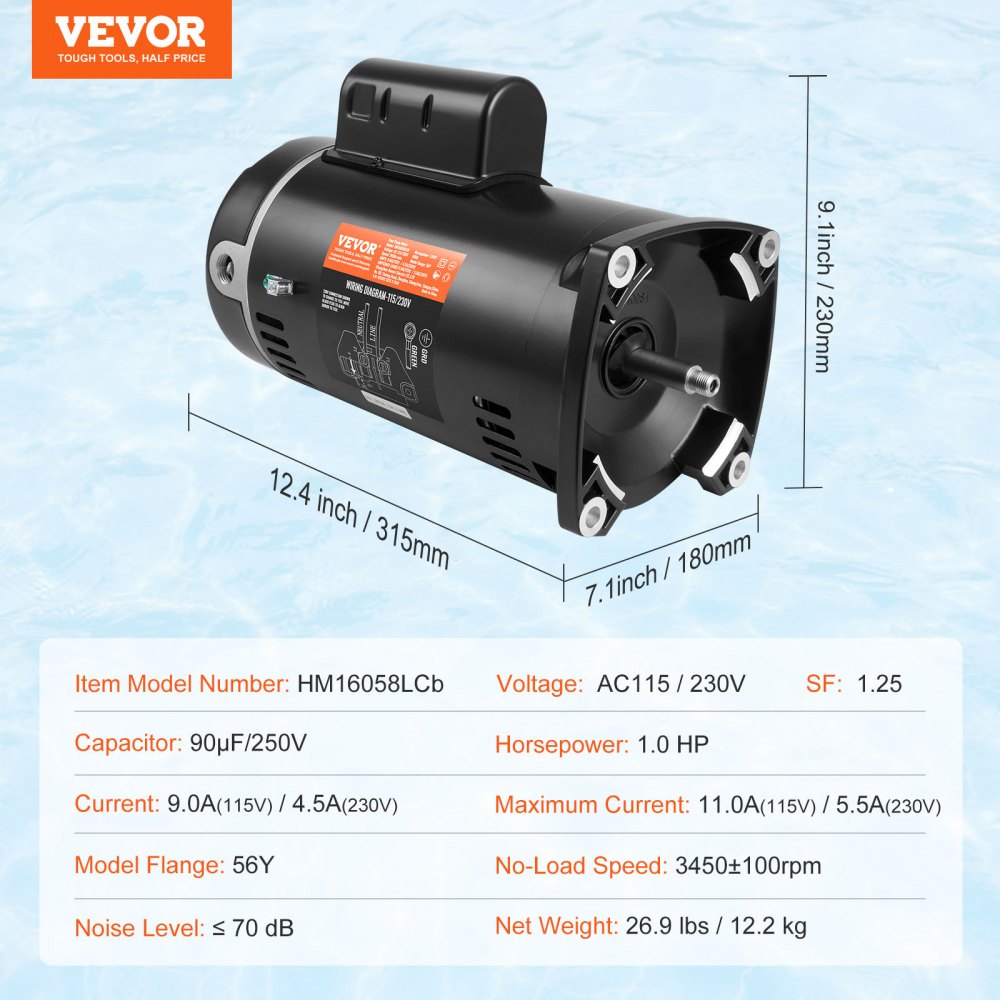

Noise Level: ≤ 70 dB,Horsepower: 1 HP,Voltage: AC 115/230V,Item Model Number: HM16058LCb,Model Flange: 56Y,No-Load Speed: 3450 RPM,Product Dimensions: 12.4 x 7.1 x 9.1 inch / 315 x 180 x 230 mm,Capacitor: 90μF/250V,Current: 9.0A(115V) / 4.5A(230V),Current (Max Load): 11.0A(115V) / 5.5A(230V)
