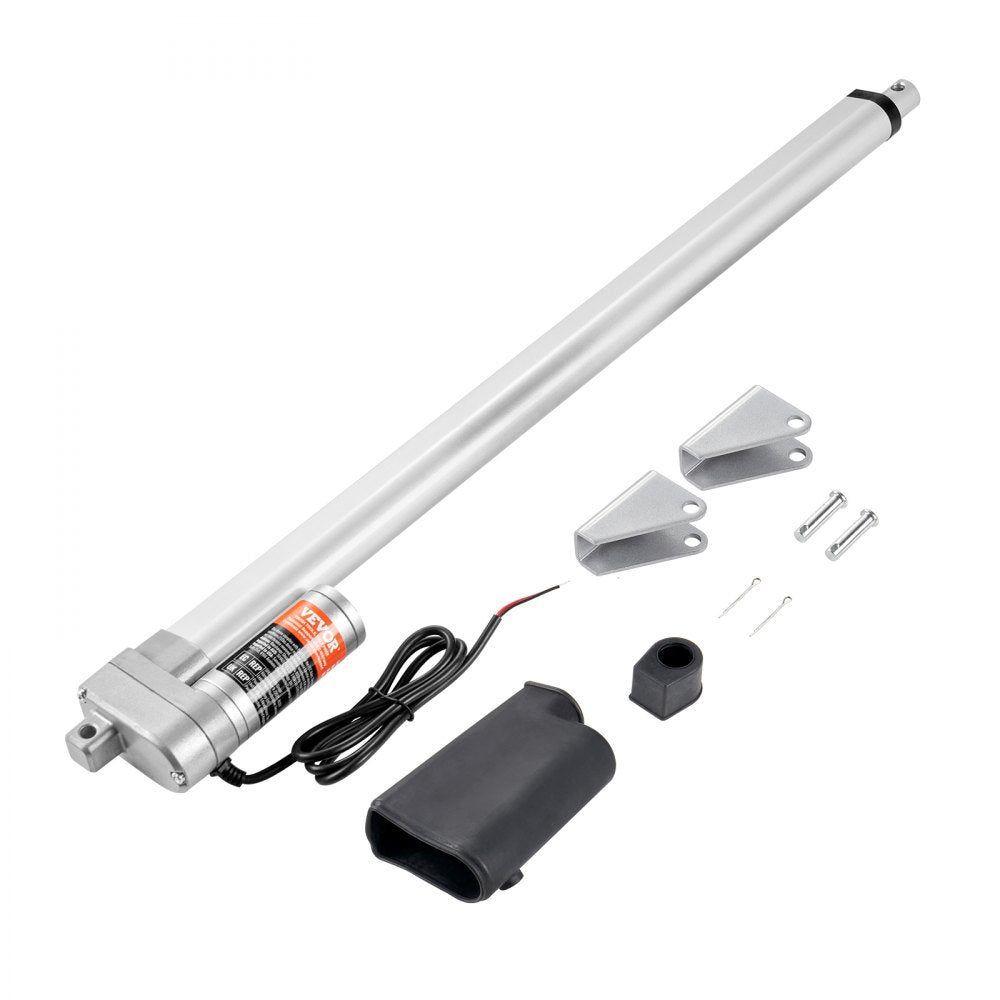

Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use

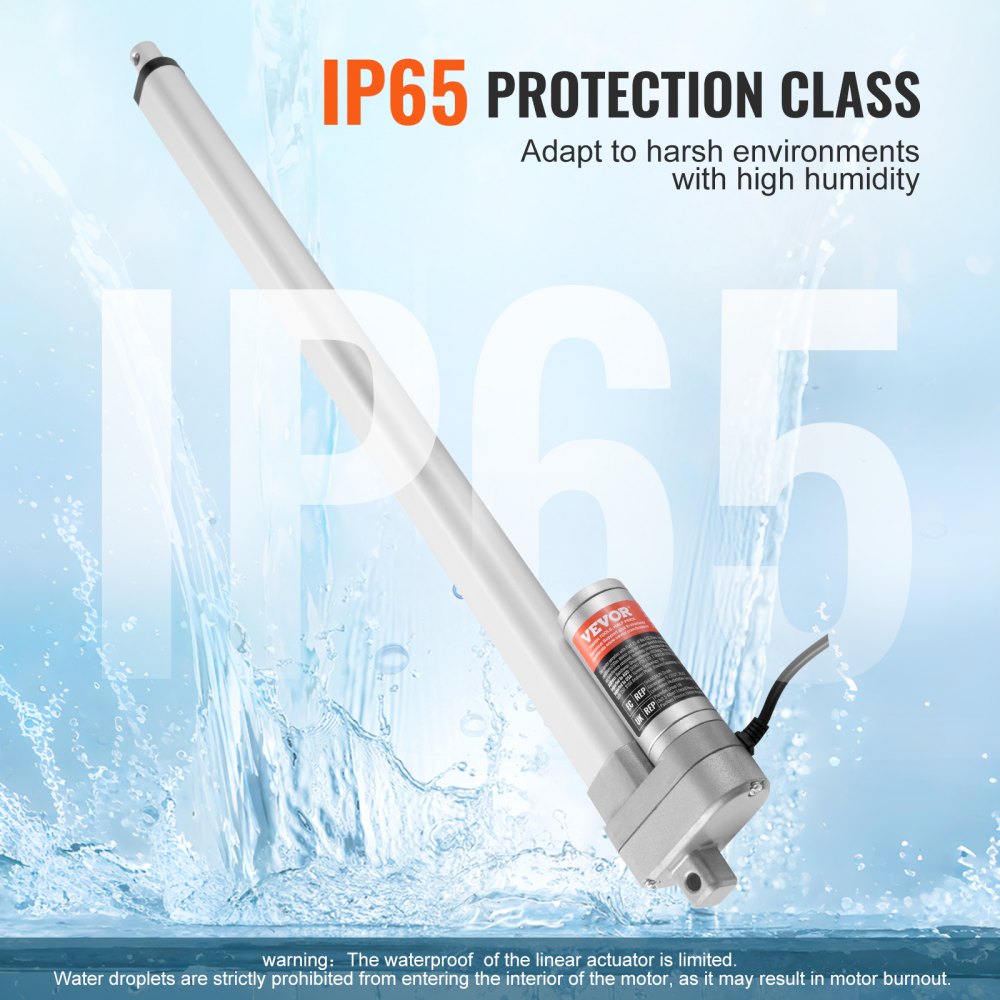

Superior IP65 Protection Rating: Featuring an impressive IP65 protection rating, `s 12V linear actuator delivers excellent resistance to dust and water. It excels in moist and high humidity conditions, perfect for outdoor applications and humid environments like lawn mowers, solar panel tracking systems, and irrigation systems.

High Torque Output: With a torque output of 660lbs/3000N, our linear motion actuator is perfect for tasks requiring substantial torque, such as agricultural equipment, construction machinery, and industrial automation.

Extended Range of Motion: With a generous 20-inch (500mm) stroke, our electric linear actuator provides a longer range of motion, making it suitable for tasks requiring extensive movement.

Versatile Applications: With a noise level below 60db, 12V linear actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation and more. It`s versatile and ready for various tasks.

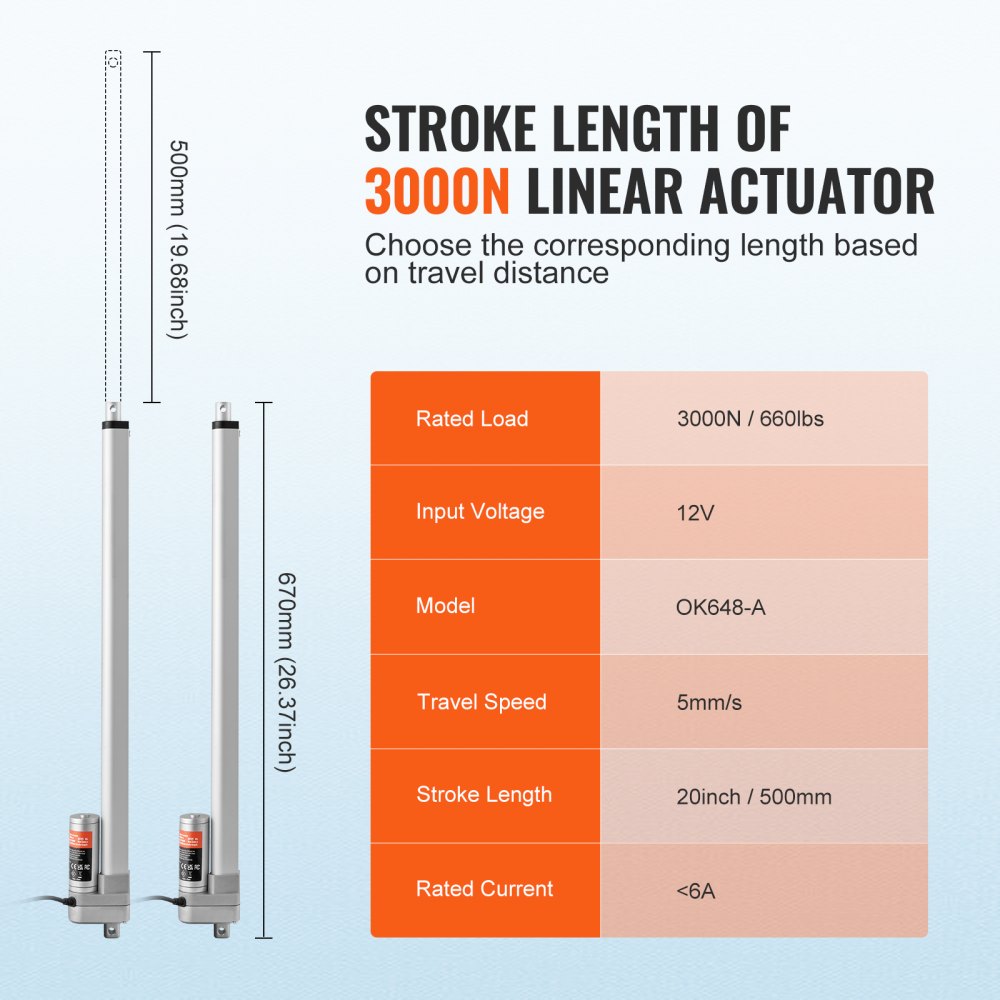

Key Specifications: Stroke Length: 20 inch (500mm)

Travel Speed: 0.19 in/s (5mm/s)

Retracted Length: 26.37" (670mm)

Extended Length: 46.37" (1170mm)

Current Draw: 6amps

Rated Voltage: DC12V

Duty Cycle: 25%.

Linear Actuator 12V, 20 Inch Waterproof IP65 Linear Actuator, 660lbs/3000N 0.19"/s Linear Motion Actuator with Mounting Bracket for Outdoor Use
Enable Automation in Every Step
IP65 Protection
High-Quality & Durable
Easy Installation
Expanded Motion Range
Wide Range of Uses
Protection Class: IP65,Noise Level: ≤60dB,Maximum Load/Actuation Force: 3000N,Item Model Number: OK648-A,Travel Speed: 0.19inch/s / 5mm/s,Stroke Length: 20 inch / 500 mm,Product Dimensions: 26.37 x 3.03 x 1.57 inch / 670 x 77 x 40 mm,Net Weight: 3.81 lbs / 1.73 kg (including all accessories),Main Material: Aluminum Alloy,Rated Voltage: DC12V
