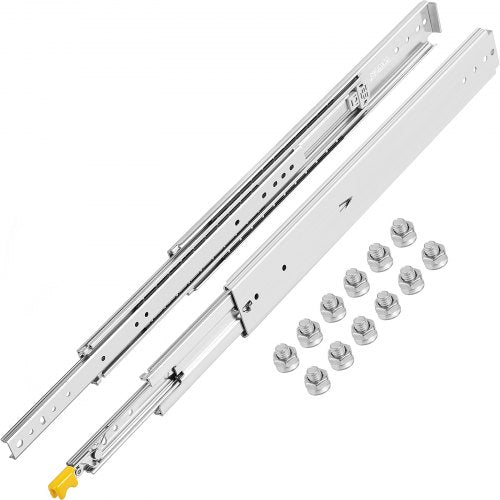

18 in Locking Slide Drawers
Smooth Slide & Low Noise & Durable
Our cold-rolled steel draw slides achieve high hardness, durability, and stability. Drawers come and go, but these are here to stay. Our ultra-secure design also ensures low noise while operating the drawer, so you don`t have to worry about replacing it over time. Install your drawers at in cabinet warehouse containers, industrial drawers, commercial equipment, retrofitted vehicles, and get ready to slide, lock, and close. Stability and durability are achieved for a high-quality performance you can trust.
- Three-Section Drawer Slides
- Sturdy Steel & 500 lbs Bearing
- Softly & Quietly Slides with Lock
- Choose the Right Size
Lock Feature Included
Inner slide, middle slide, and outer slide are all included. The drawer slide can be locked only in a fully closed or fully expanded state by the yellow locking handle.
Quiet Design Details
Nylon buffer can reduce the direct contact between the outer and the inner channel. The ball-bearing action can create a quiet environment at work.
Cold Rolled Steel
High-grade cold-rolled steel with an electroplated finish can effectively prevent the drawer rail from scratches, deformation, and rust.
Right Size Table
Please refer to the above guide for choosing the right size of drawer slides. The length of slides can`t be longer than the cabinet case depth.
Easy & Quick to Assemble
During installation, it`s better to tighten the bolt between the slide and the drawer from outside to inside. The bolt between the drawer and cabinet should be fixed from inside to outside.
Extensive Usage
The side mount drawer slides are for various applications: goods shelf, cabinet, industrial used drawer, RV, truck, vending machine, etc.
Specifications
- Length: 18"/ 45.7
- Fully Pull-Out Length: 36"/ 91.4 cm
- Material: Cold Rolled Steel
- Load Capacity: 500 lbs/ 225 kg
- Install Distance(Each Side): 0.7"/ 19.2 ± 0.3 mm
- Slide Lock: Support
- Product Width: 3"/ 7.6 cm
- Product Thickness: 19 mm / 0.75"
Package Content
- 1 x Heavy-Duty Drawer Slide Kit
- 1 x Screw Kit
- 1 x User Manual
