24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection

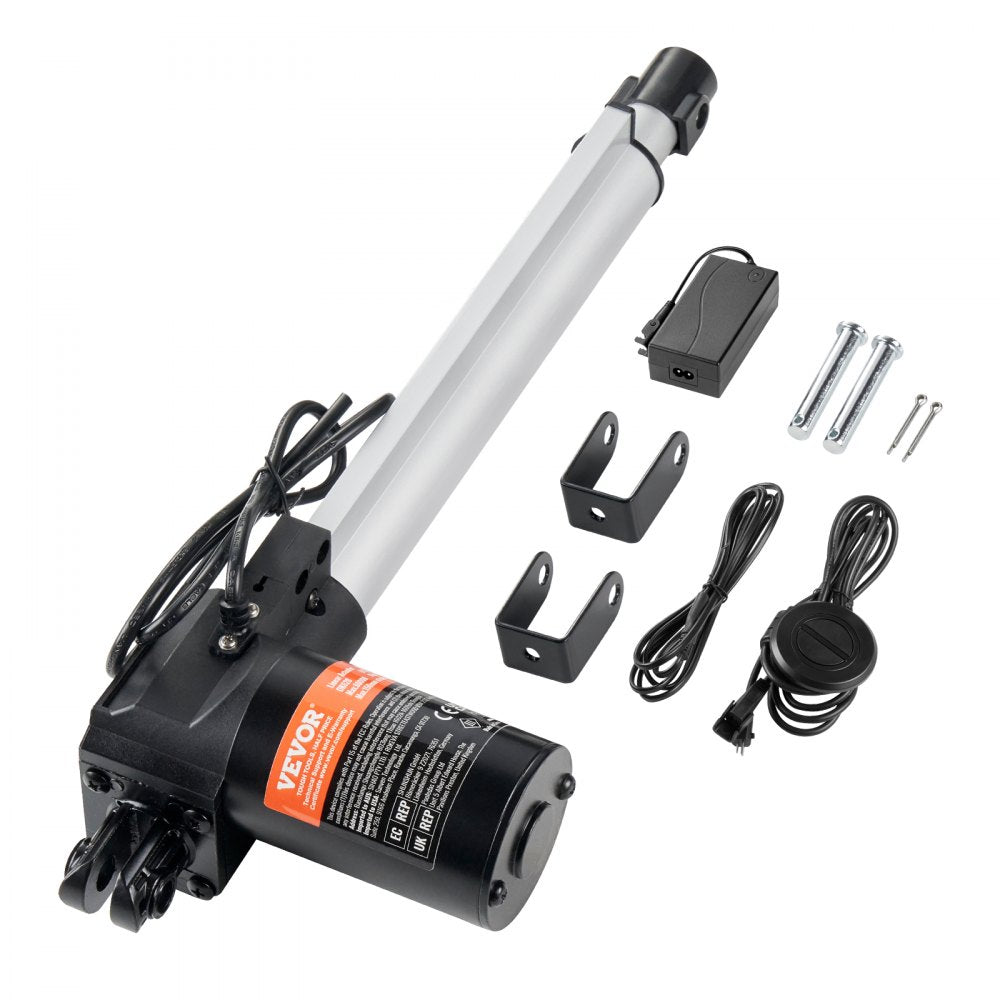

Complete Electric Actuators Kit: linear actuator kit includes necessary components for easy assembly. 220lbs/1000N robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows, versatile for both home and industrial use.

Reliable Torque Output: 220lbs robust torque output ensure stable thrust for medium-duty tasks like lifting platforms and motorized doors and windows. Versatile for both home and industrial use, it delivers exceptional performance.

Versatility Unleashed: Get ready for a quiet revolution! `s linear motion actuator, with a noise level below 50db, are your go-to for furniture adjustment, automation systems, mechanical equipment, transportation and more. Enjoy seamless functionality wherever you need it!

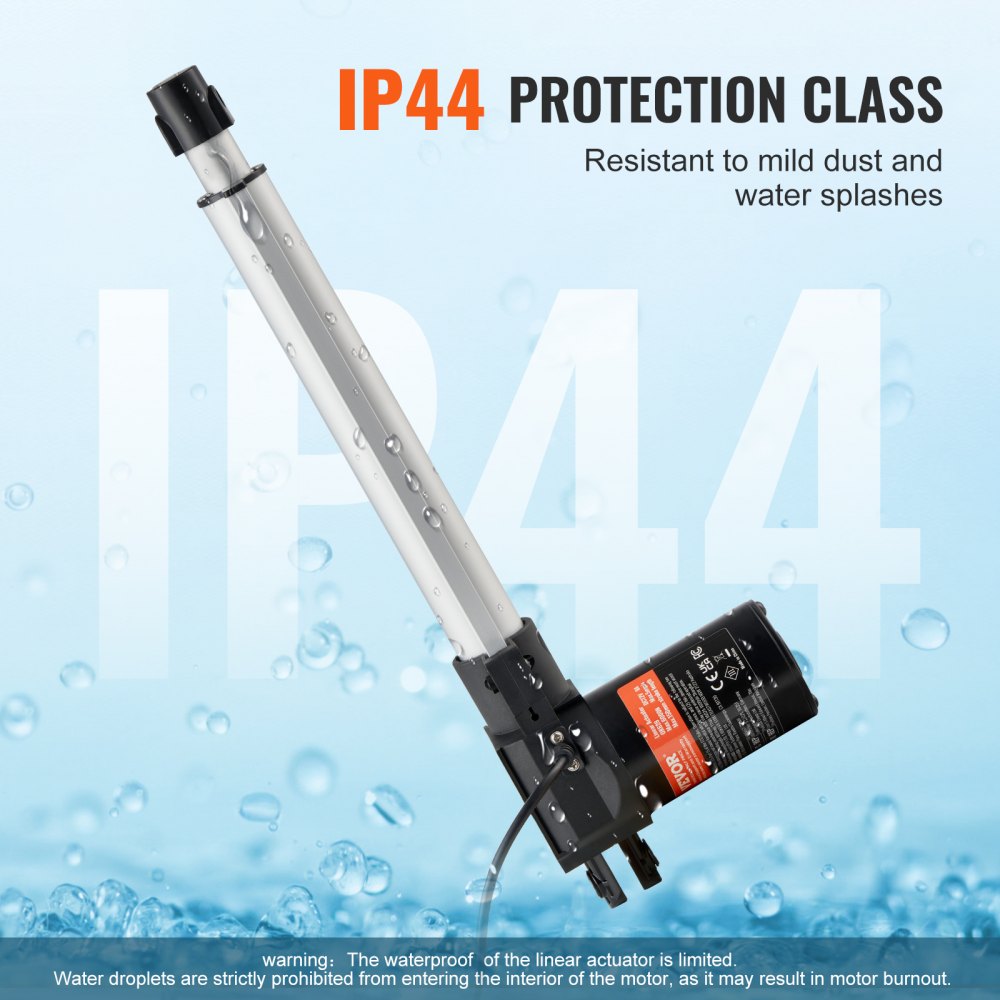

IP44 Protection Rating: Featuring an IP44 protection rating, motion actuator kit excels in environments with dust, solid particles, and light-splashing water. Count on it to withstand dust and moisture in general industrial and household applications. (Caution: Water should not penetrate the interior of the motor)

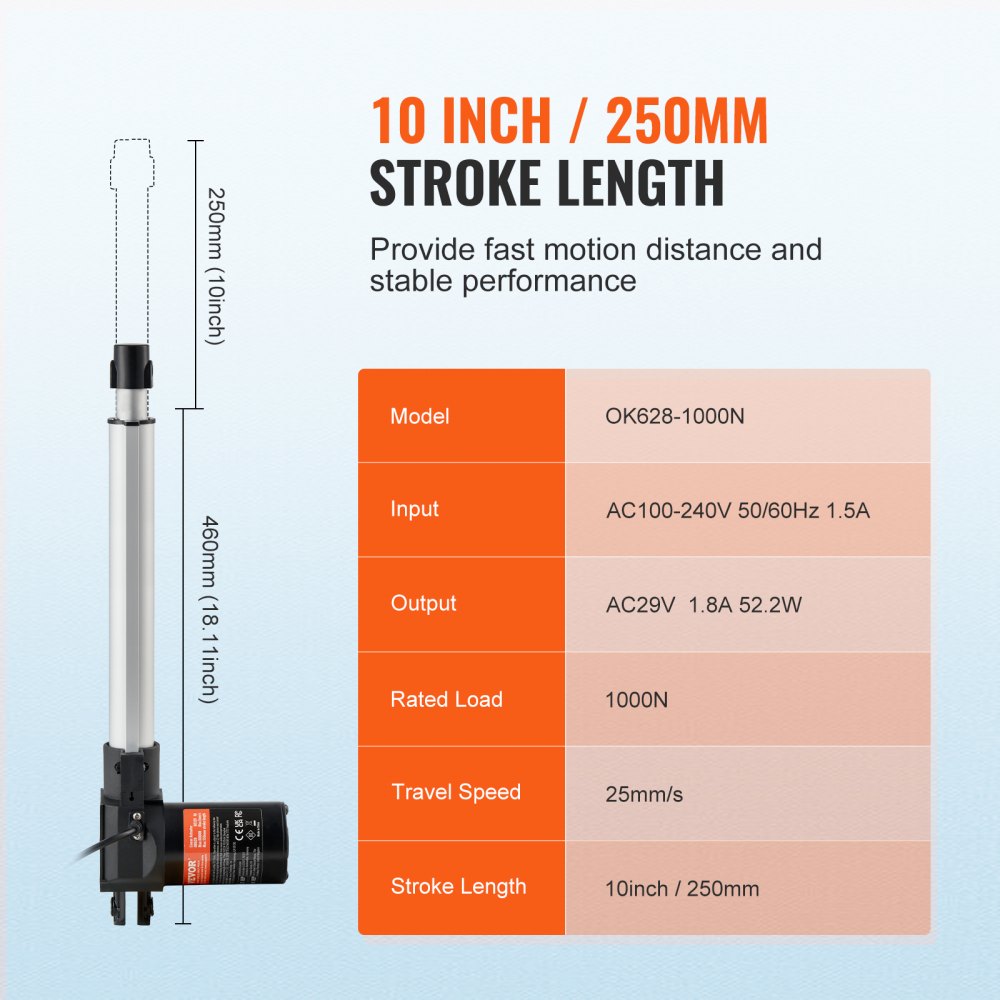

Key Specifications: Stroke Length: 10 inch (250mm)

Travel Speed: 0.98 in/s (25mm/s)

Retracted Length: 18.11" (460mm)

Extended Length: 28.11" (710mm)

Input Voltage: AC100-240V

Duty Cycle: 10%. Efficiency is at its highest when the actuation force is approximately 75% of its maximum value.

24V Linear Actuator Kit 10 Inch 0.98"/s 220lbs/1000N with IP44 Protection
Enable Automation in Every Step
IP44 Protection

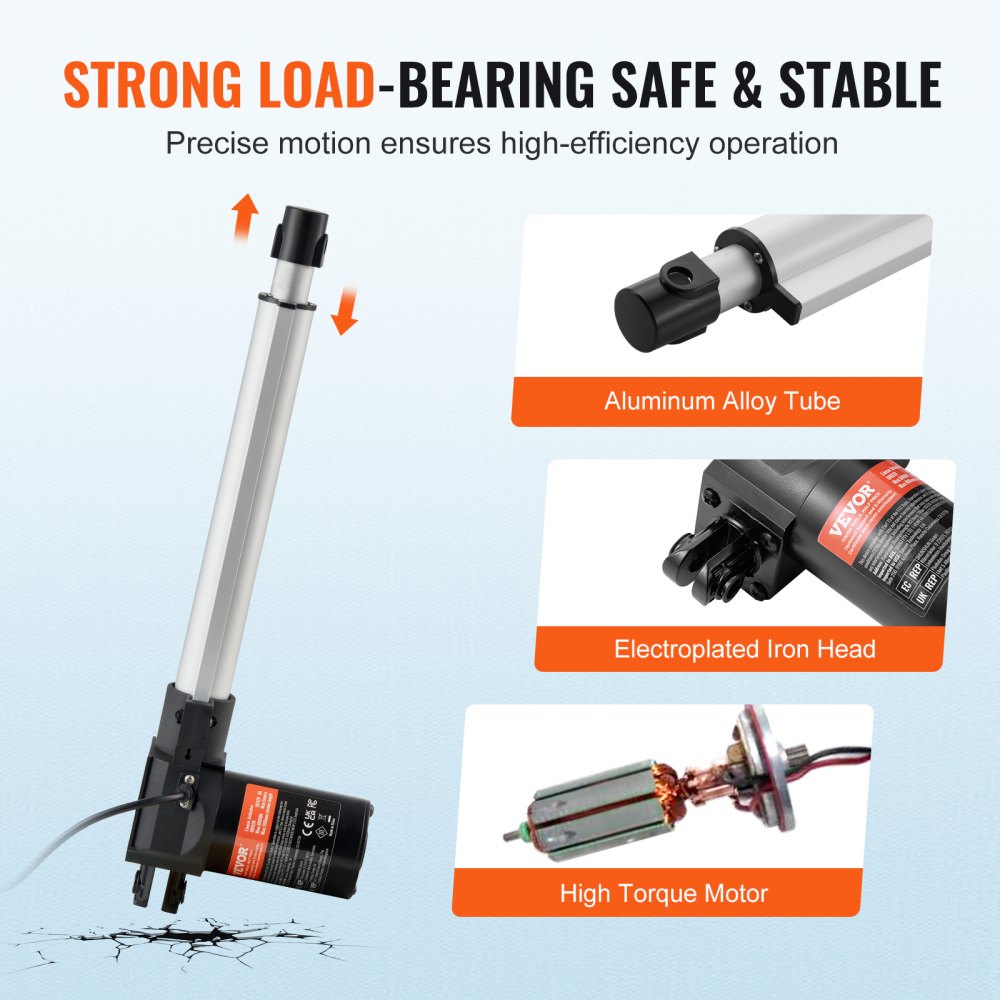

High-Quality & Durable

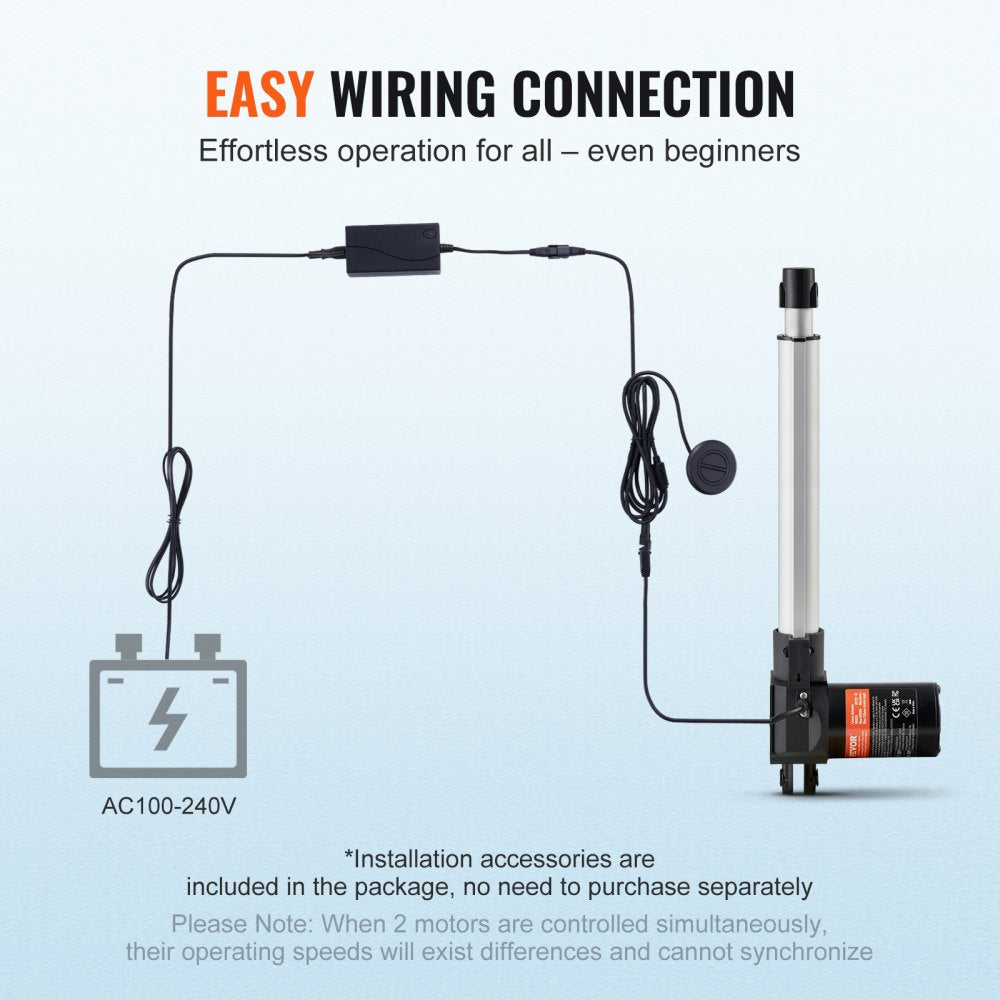

Easy Installation
Warm Tips
Wide Applications

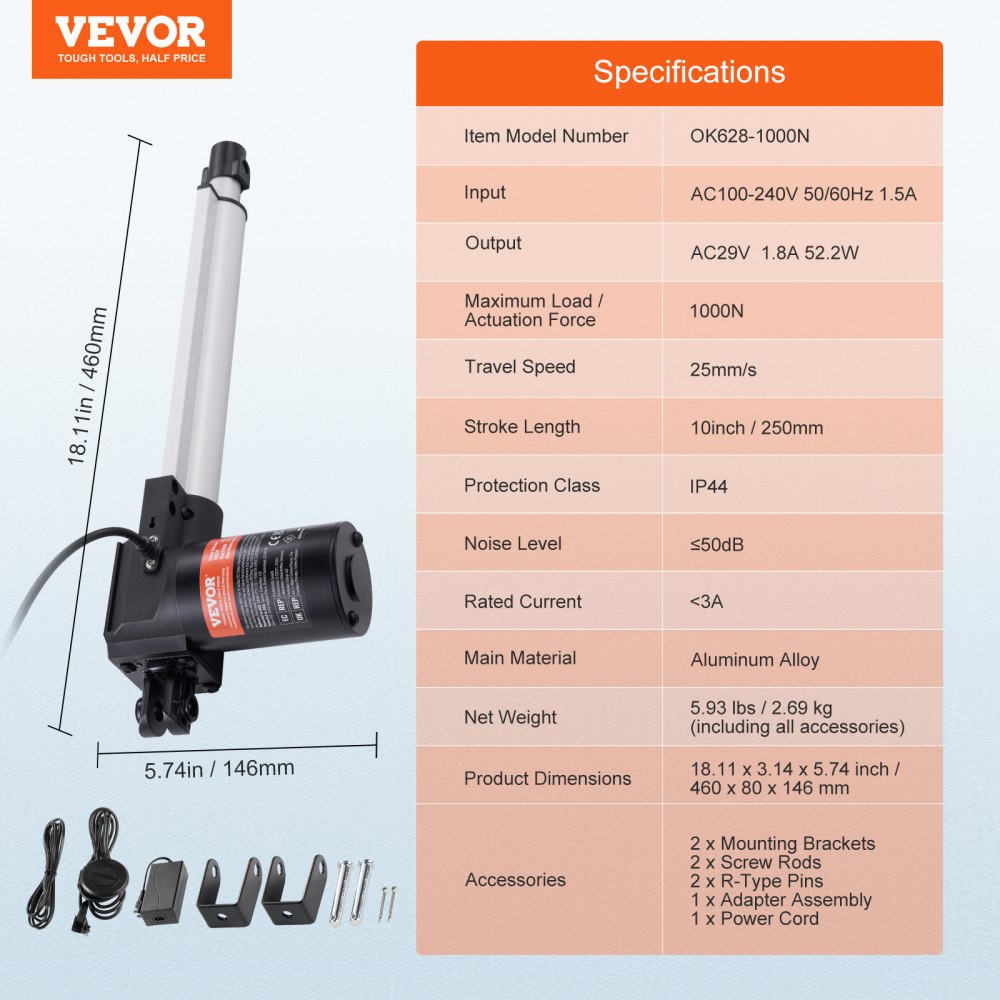

Protection Class: IP44,Noise Level: ≤50dB,Input: AC100-240V 50/60Hz 1.5A,Maximum Load/Actuation Force: 1000N,Item Model Number: OK628,Travel Speed: 0.98inch/s / 25mm/s,Stroke Length: 10 inch / 250 mm,Product Dimensions: 18.11 x 3.14 x 5.74 inch / 460 x 80 x 146 mm,Net Weight: 5.93 lbs / 2.69 kg (including all accessories),Main Material: Aluminum Alloy
