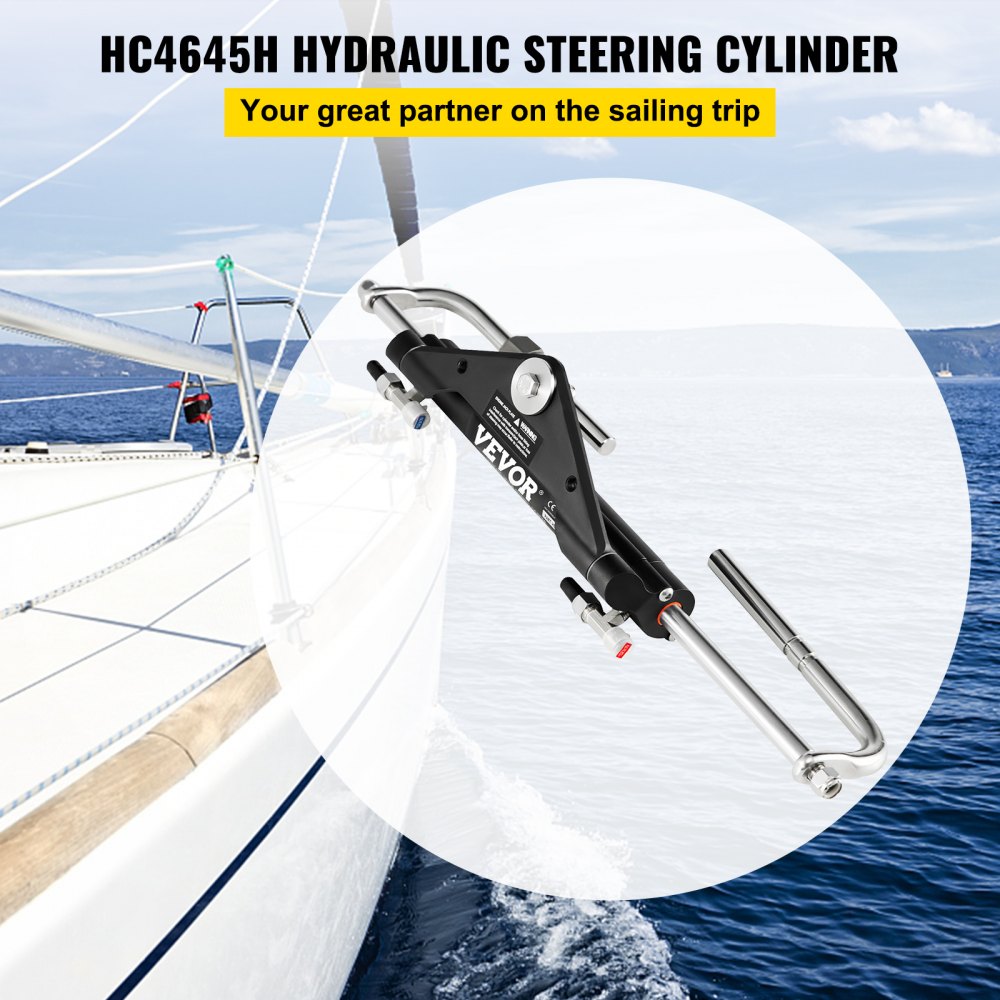

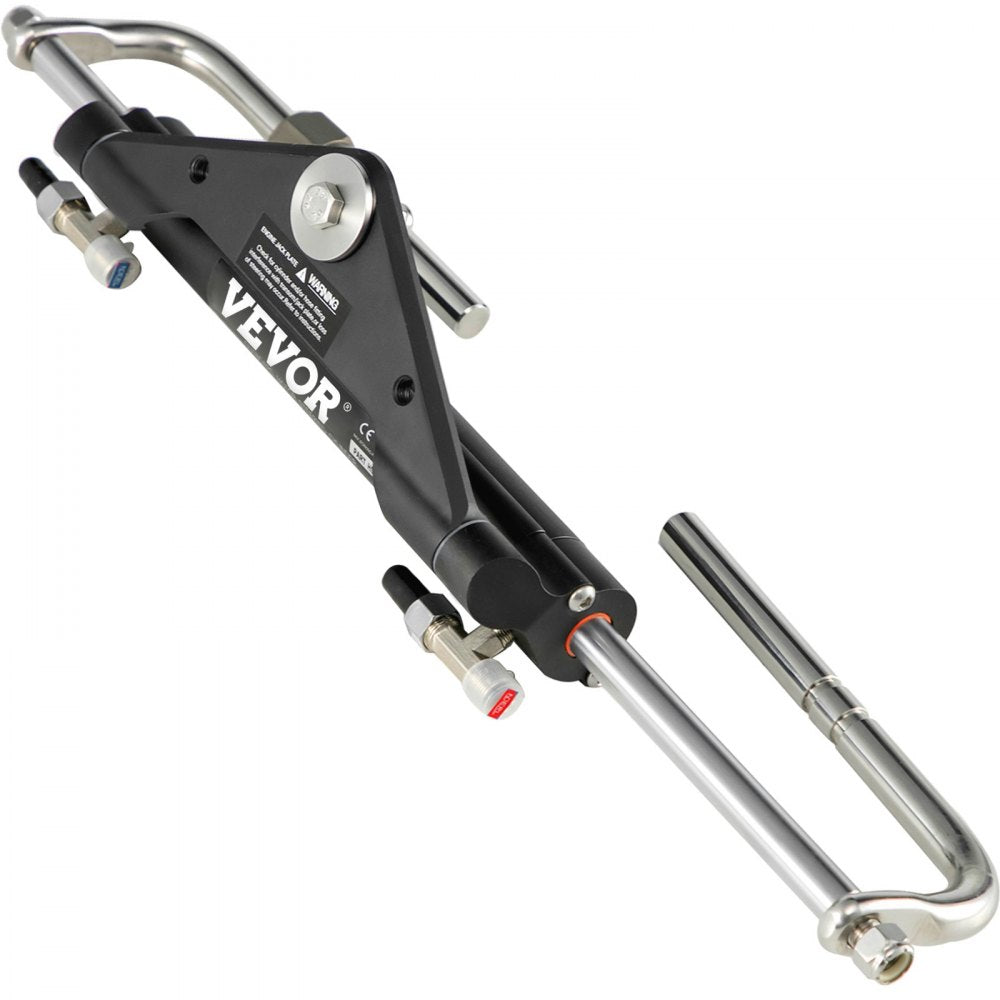

Bostome HC4645H Hydraulic Outboard Steering Cylinder – Up to 150HP

Navigating rough waters with an outboard motor can strain standard steering systems, leading to unreliable control and premature wear in harsh marine environments.

This issue compromises safety and performance, especially for boats up to 150 HP, where repeated compression and corrosion accelerate component failure, increasing maintenance costs and downtime for busy boaters.

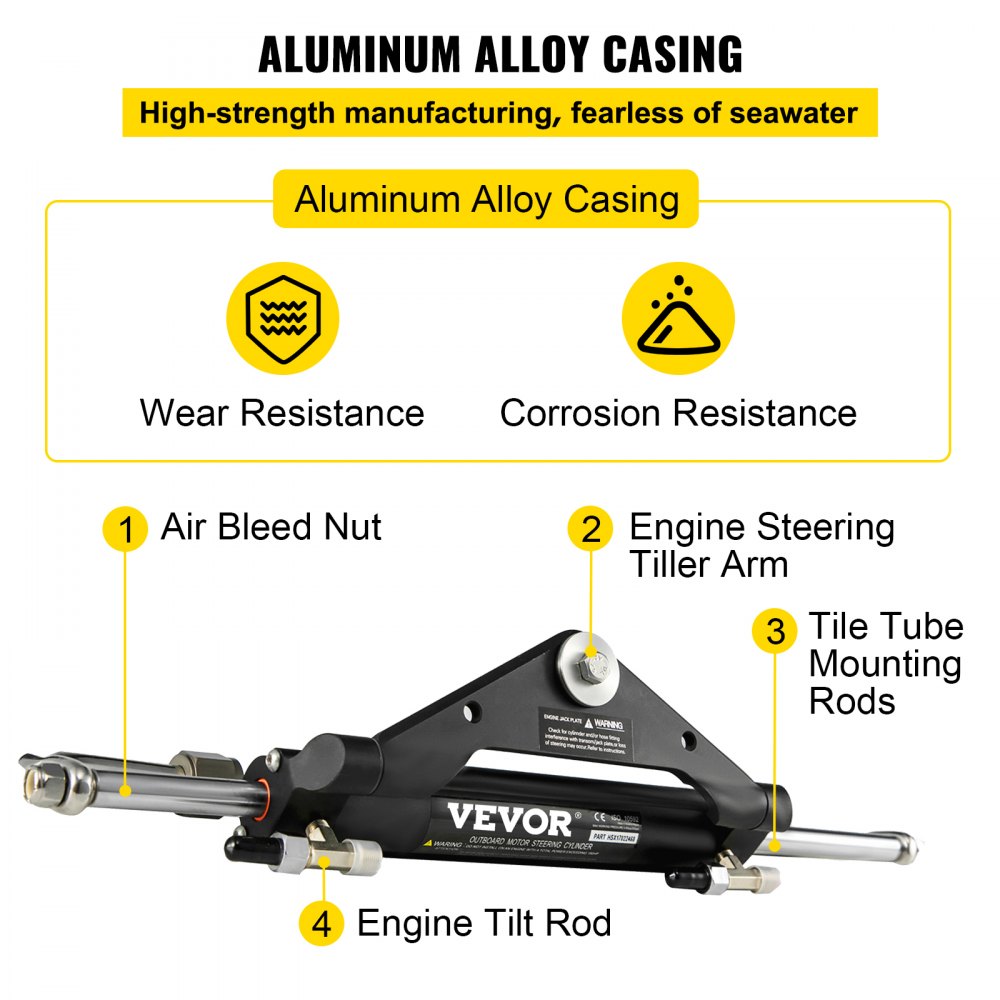

The Bostome HC4645H Hydraulic Outboard Steering Cylinder delivers a robust solution designed for single-outboard boats rated up to 150 HP. Engineered with advanced crush resistance, it withstands repeated compression sets while its high-strength aluminum alloy casing ensures superior corrosion and wear resistance in demanding conditions.

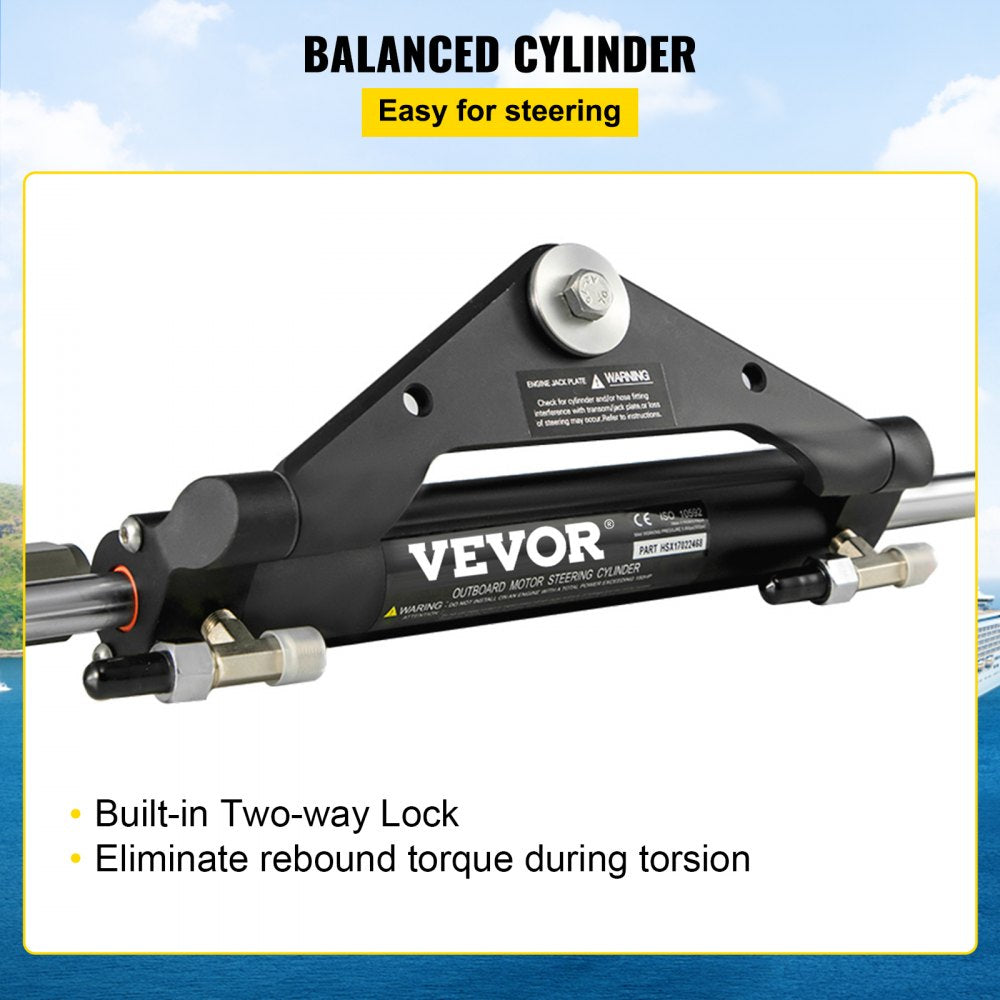

• Built-in two-way lock eliminates rebound torque for precise handling.

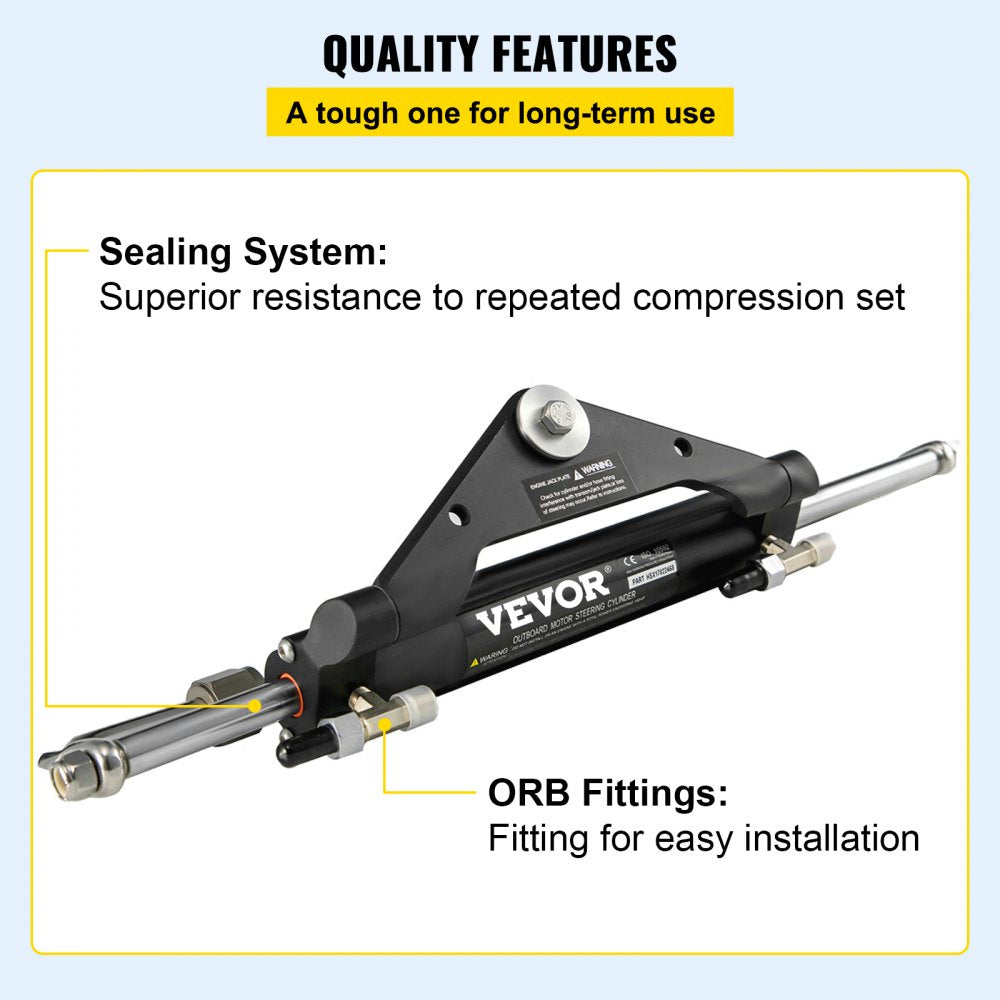

• Positionable stainless steel ORB fittings simplify hose routing.

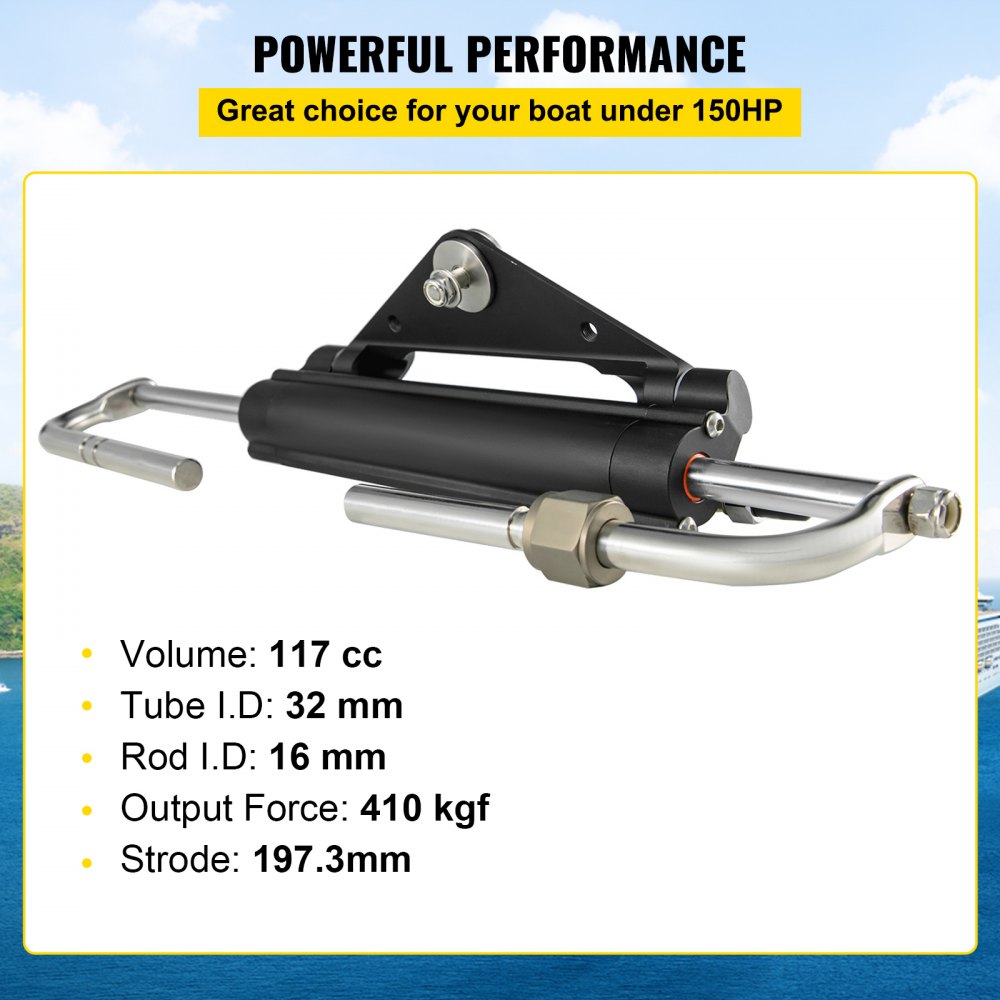

• Operates at up to 10.3 MPa (1500 psi) with 117 CC volume, 32 mm tube I.D., 16 mm rod I.D., 409.7 kgf output force, and 197.3 mm stroke.

Ideal for center consoles, offshore fishing boats, bass boats, and more, this steering cylinder provides reliable power steering. Upgrade your setup today for enhanced durability and control—add the Bostome HC4645H to your cart now.
