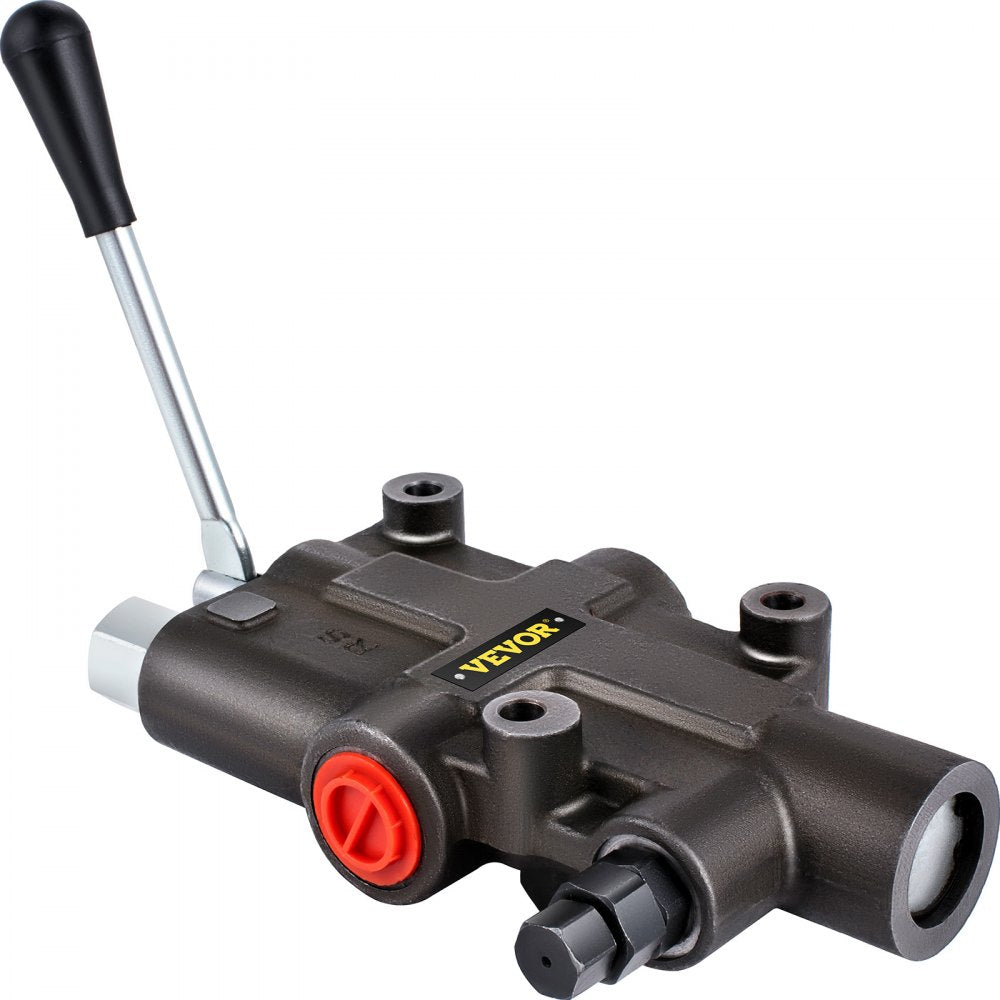

1 Spool 21gpm Hydraulic Directional Control Valve
Our hydraulic spool control valve has been specifically designed for use in mobile hydraulic applications. It is compact but has a flow capacity of 21GPM at 4300psi. This valve is an alternative to currently available monoblocks. It is supplied with an adjustable relief valve and levers as standard.
- Hydraulic Spool Valve
- Automatically Reset
- Great Inner Valve
- Compact Structure
Hydraulic Loader Valve
This hydraulic directional control valve manages and directs hydraulic oil flow between hydraulic pumps and hydraulic cylinders, motors, tanks, etc.
Neutral Spring-Center
The spring-returned spool can be reset to the neutral position, and the spring makes the joystick easy to control.

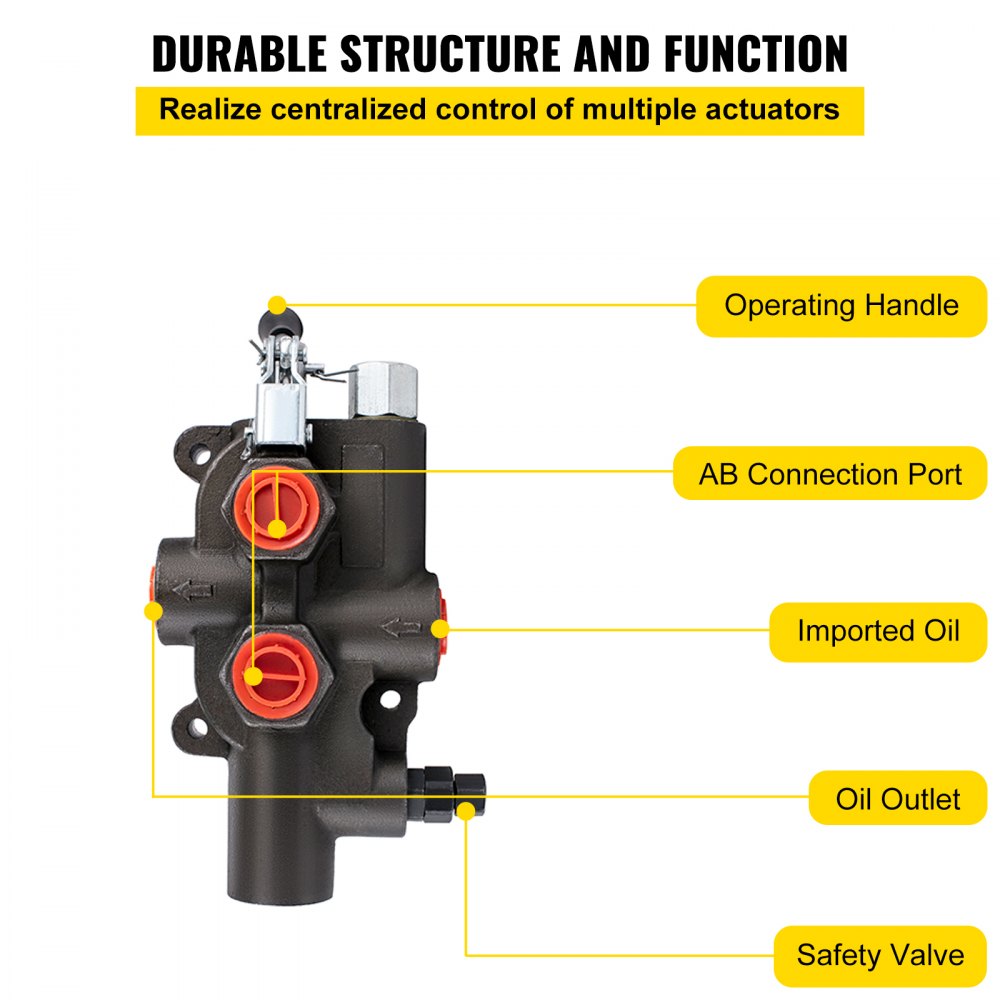

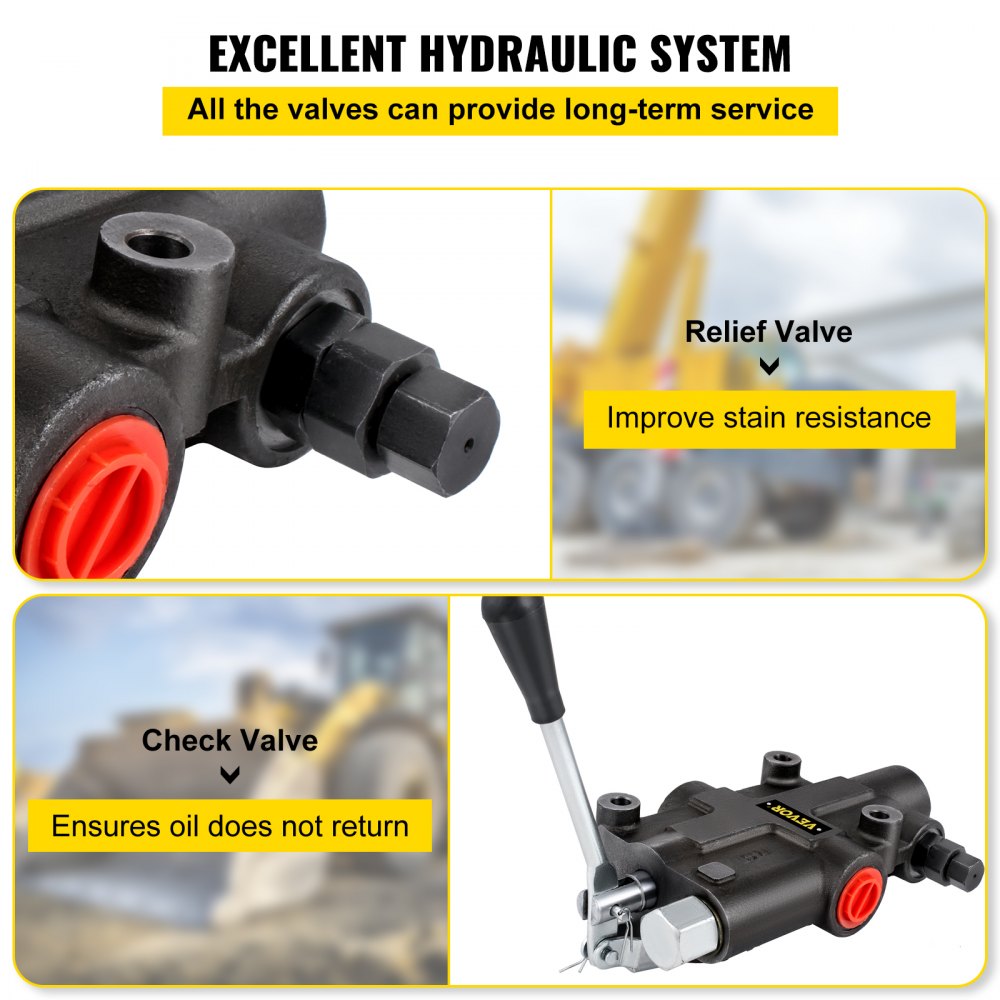

Inner Check/Relief Valve
The valve body`s check valve and overflow valve can help you complete your work better and securely.
High-Tensile Strength Structure
Durable iron construction, precision ground, and rigid chrome-plated spools provide long-term usage.

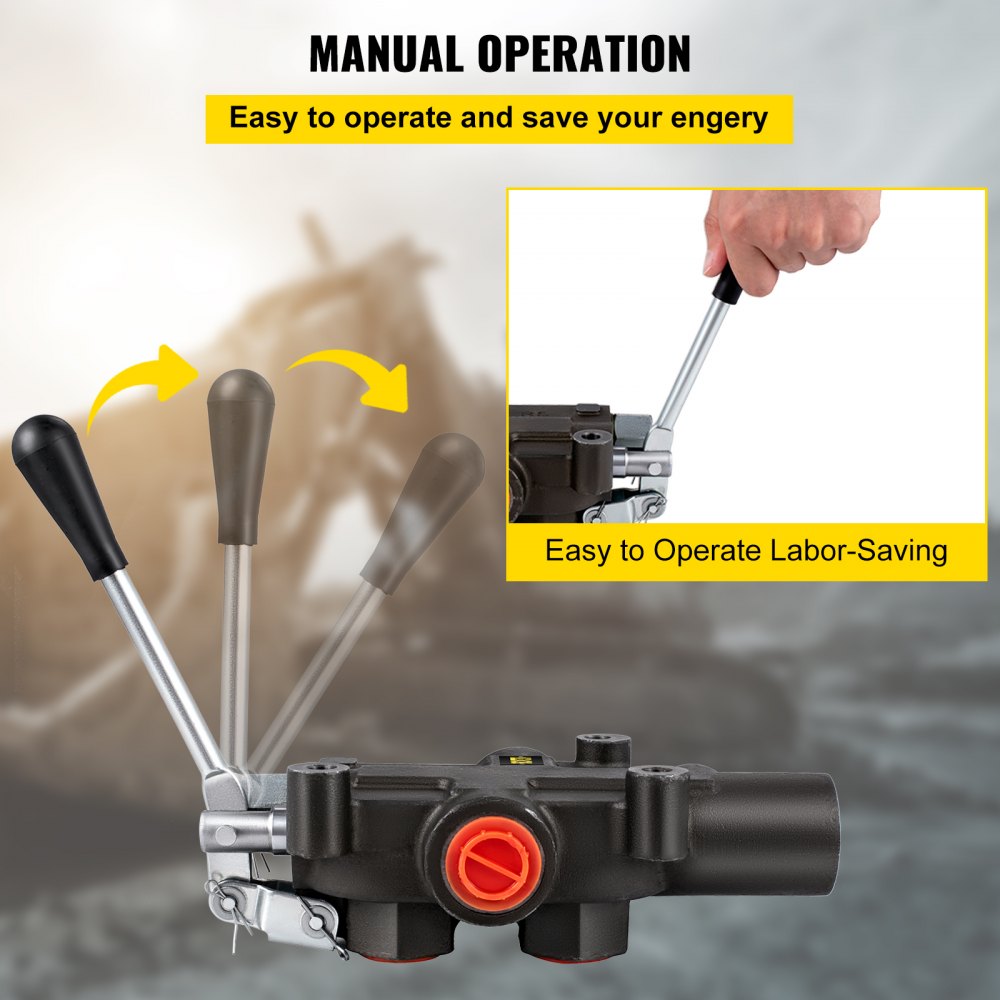

Compact Handle Design
The control handle is convenient to operate, which has a spring on the bottom of the handle that resets it to the neutral position.
Wide Application
Ideal for use in forklifts, small factory machinery, small agricultural machinery, small hydraulic presses, punching machines, and other processing equipment.

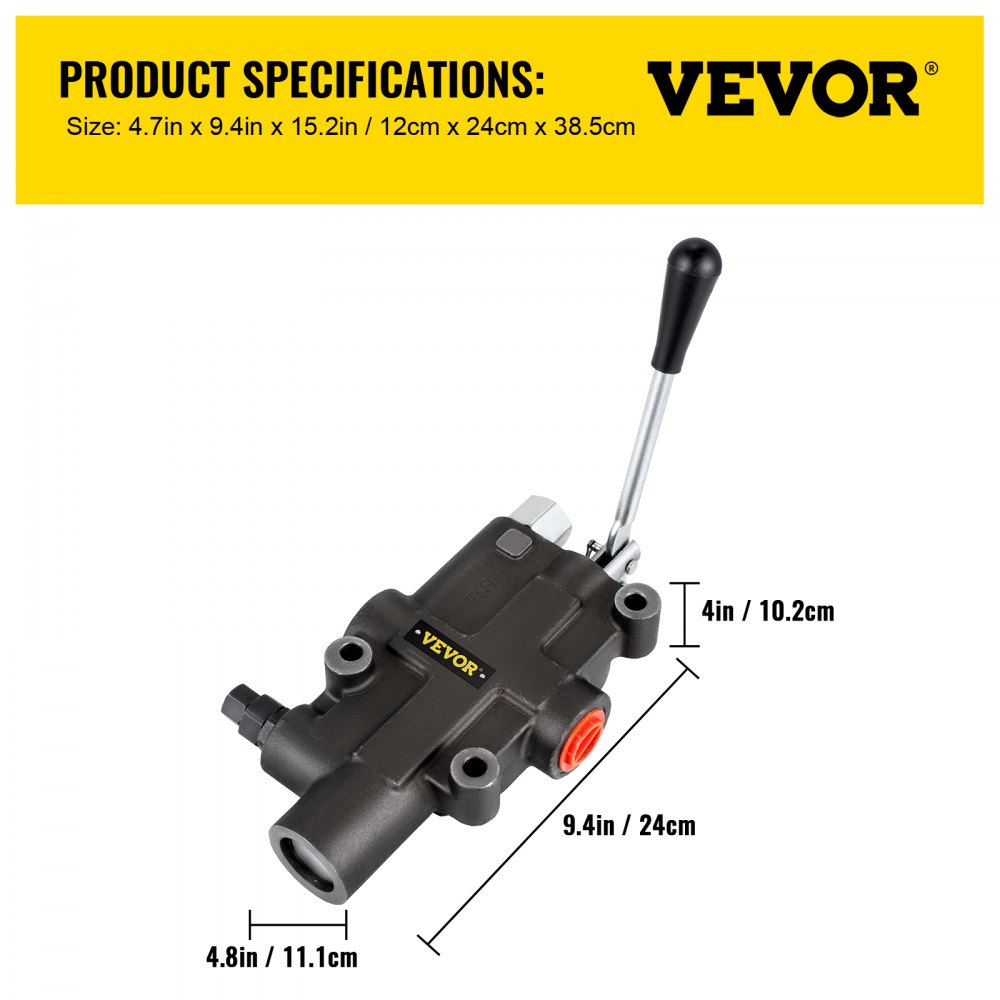

Specifications
- Model: 121GPM4300

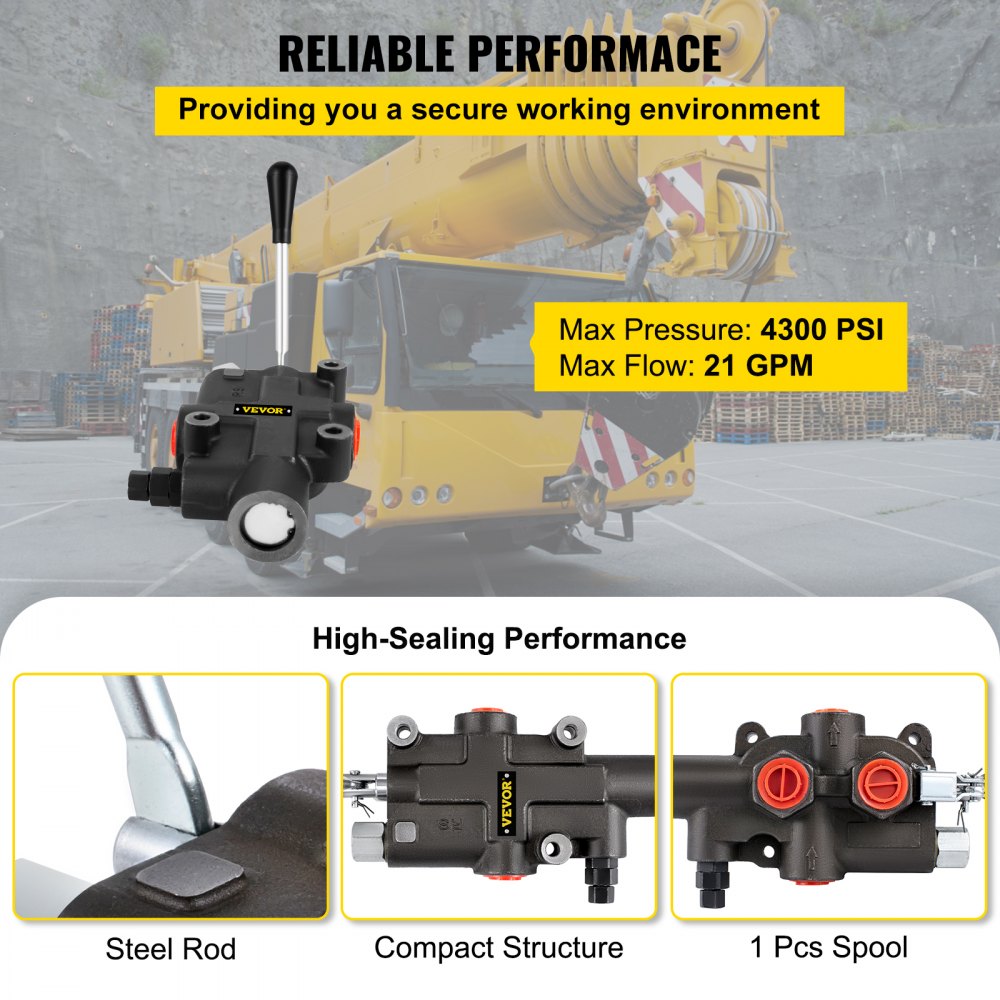

- Max operating pressure: 4300 PSI
- Flow Rating: 21gpm
- Relief Valve: Adjustable
- Center system: Open
- Spool Count: 1-Spool
- Valve Operation: Manual
- A, B ports: 1/2-12" NPTF
- P, T, N port: 3/4-14" NPTF
Package Content
- 1 x 1 Spool Hydraulic Directional Control Valve
