8 In 1 Heat Press & 53" Vinyl Cutter
This complete kit consists of two professional equipment, namely the vinyl cutter and heat press. 53" cutting plotter allows you to cut customized designs and signs as you want. 15" x 15" heat press is ideal for transferring these personalized pictures onto different accessories, such as the mug press, cap press, plate press.
- Trusted Performance
- High Compatibility
- Digital Control Of Both
- 360° Swing Away Feature

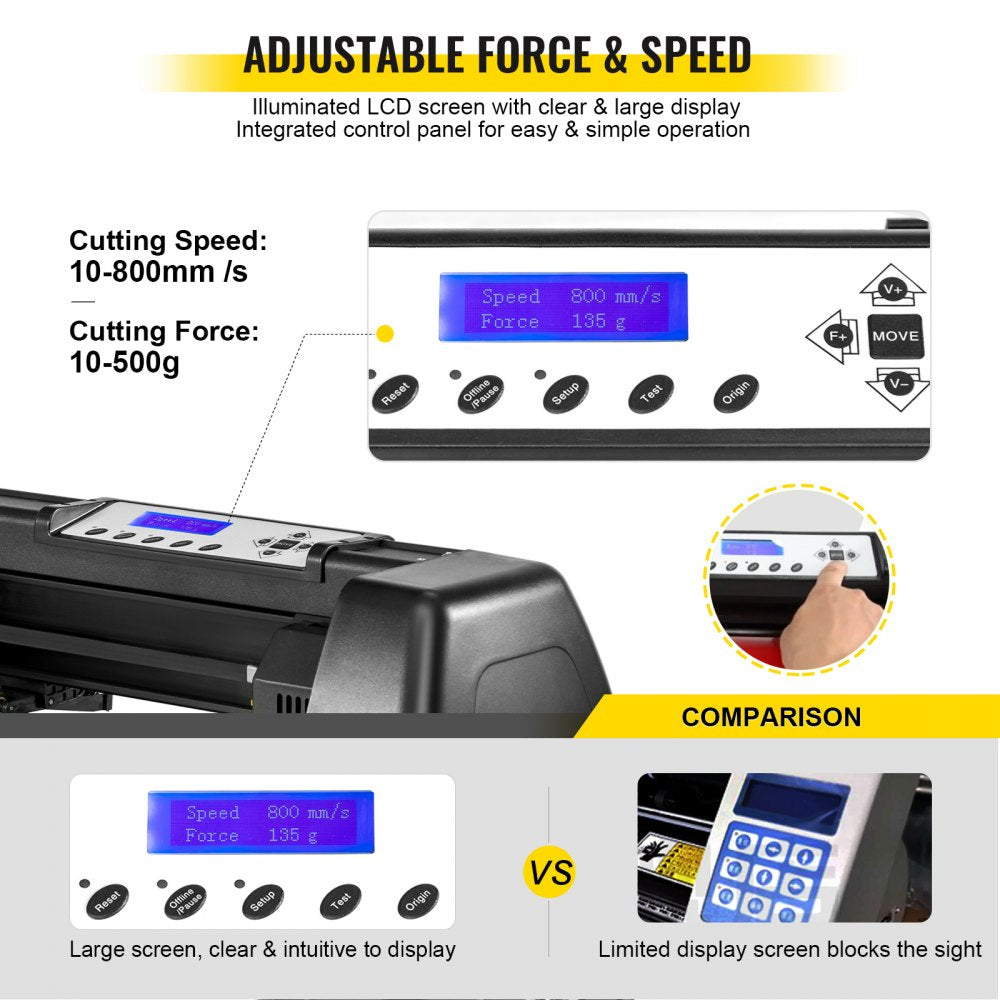

Adjustable Force & Speed
The vinyl cutting machine delivers a cutting speed of 10-800mm/s & a cutting force of 10-500g. It`s embedded with an intuitive digital panel for real-time tracking and monitoring the cutting quality.

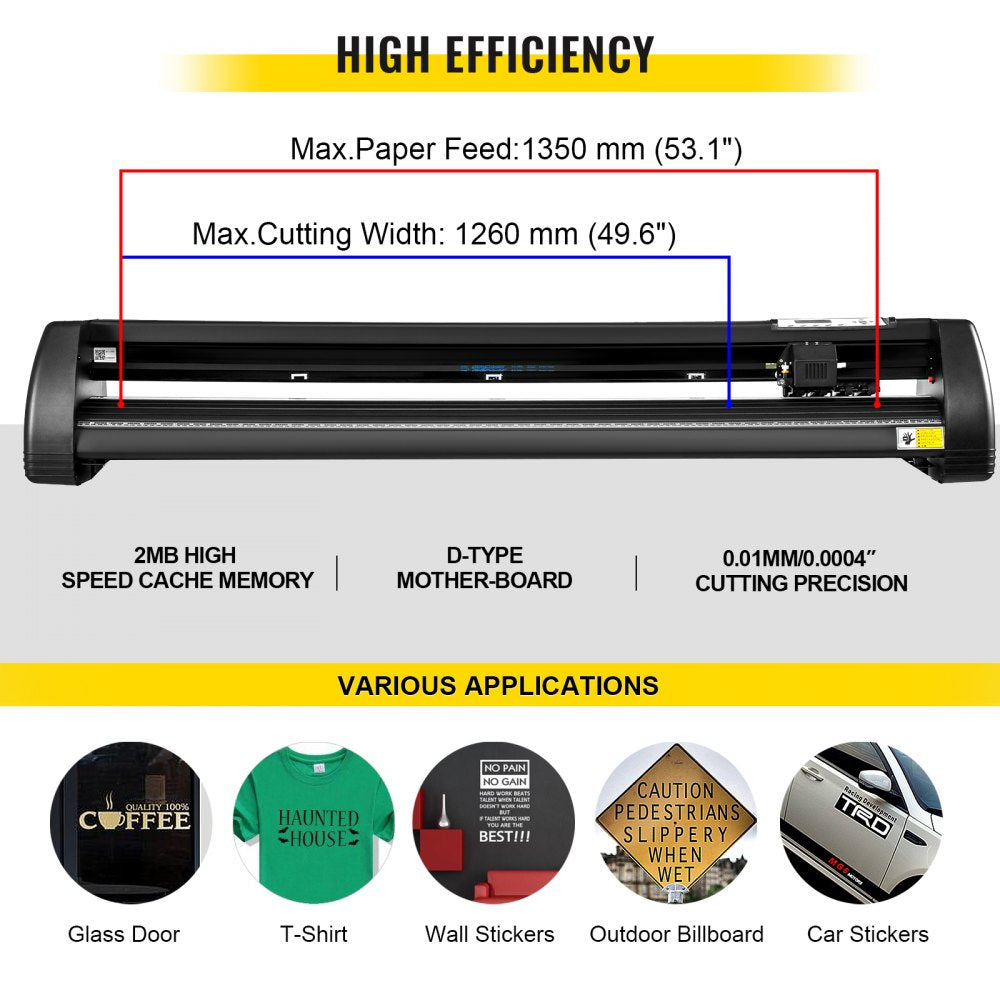

High Efficiency
With the large paper feed (max 1350mm/53.1") and cutting width (max 1260mm/49.6"), the vinyl cutter plotter boasts high cutting precision (0.0004"/0.01mm). D-typed motherboard and stepper motors are equipped as well.

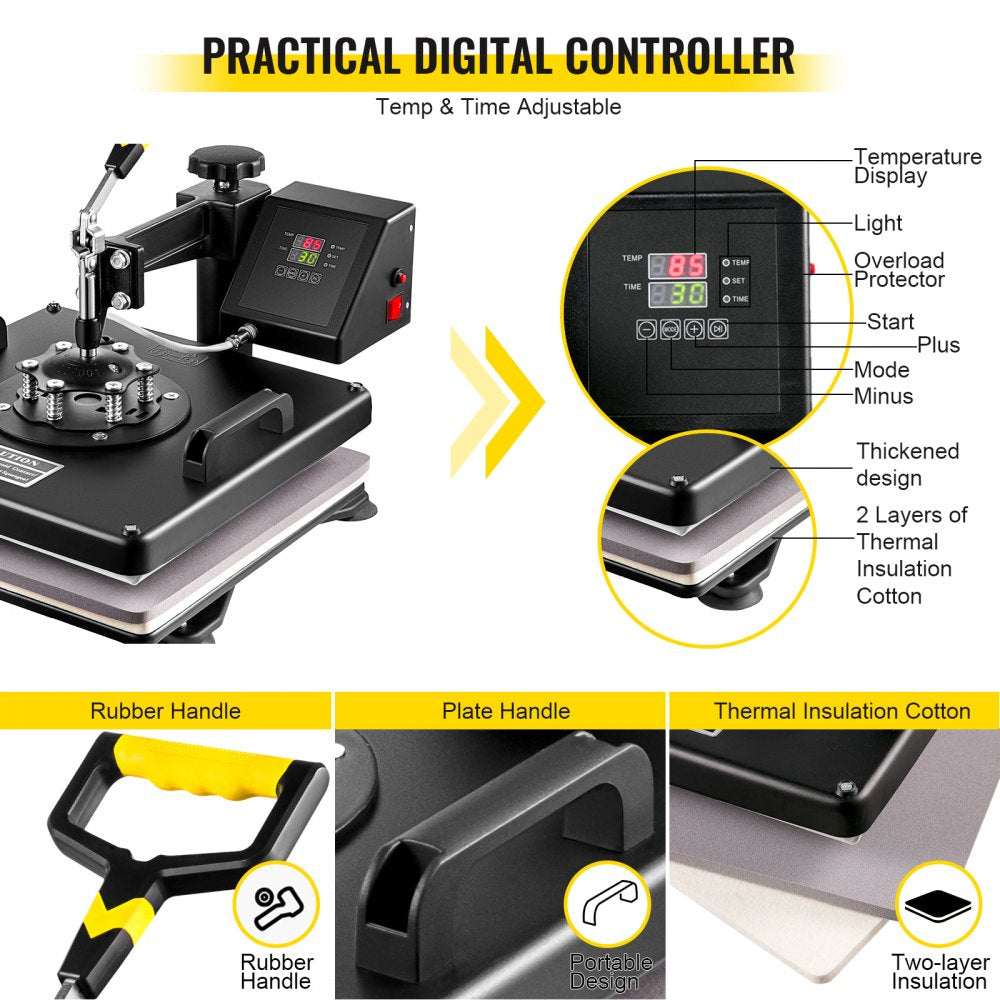

Practical Digital Controller
The handpicked controller is loaded with a marvelous and gorgeous appearance, featuring the integrated digital display for easy setting and operation, bringing professional-looking projects.

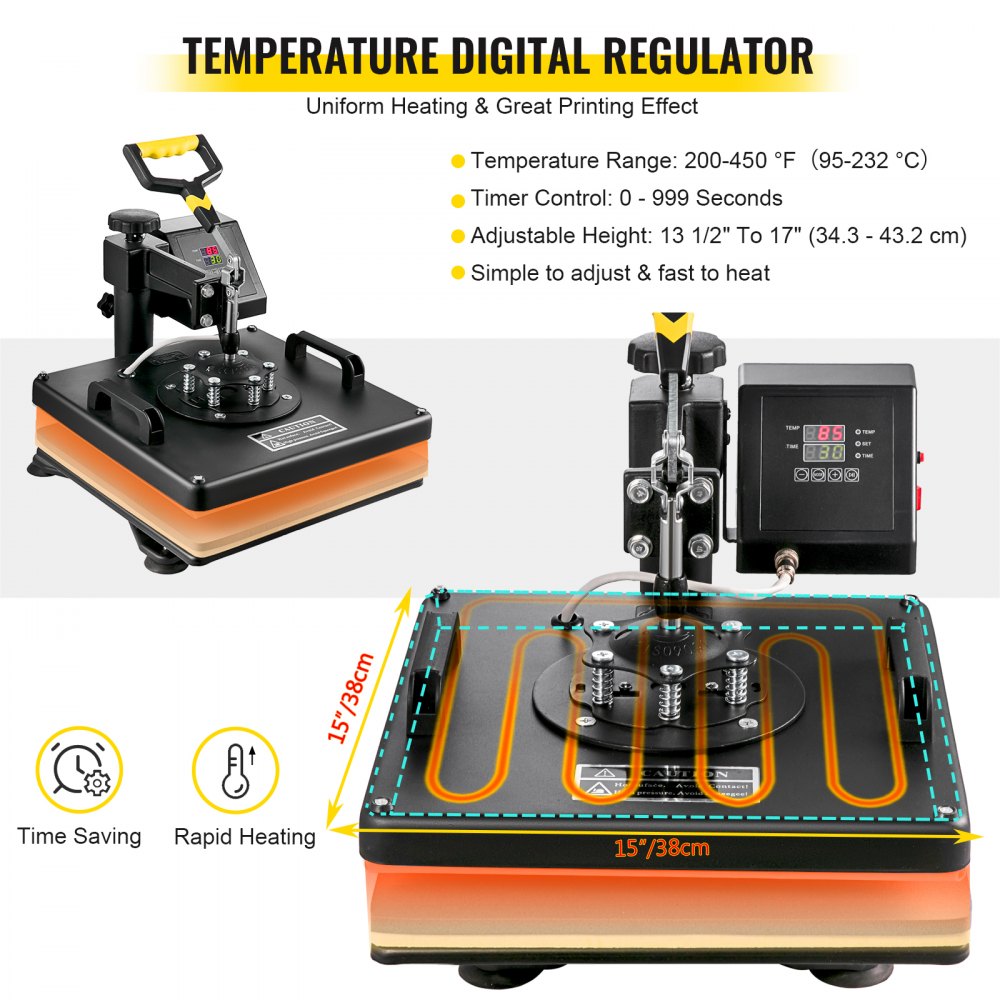

Temp & Time Adjustable
The single-tube design supports rapid heating. And the precise time and temperature control result in a more professional and refined heating effect.

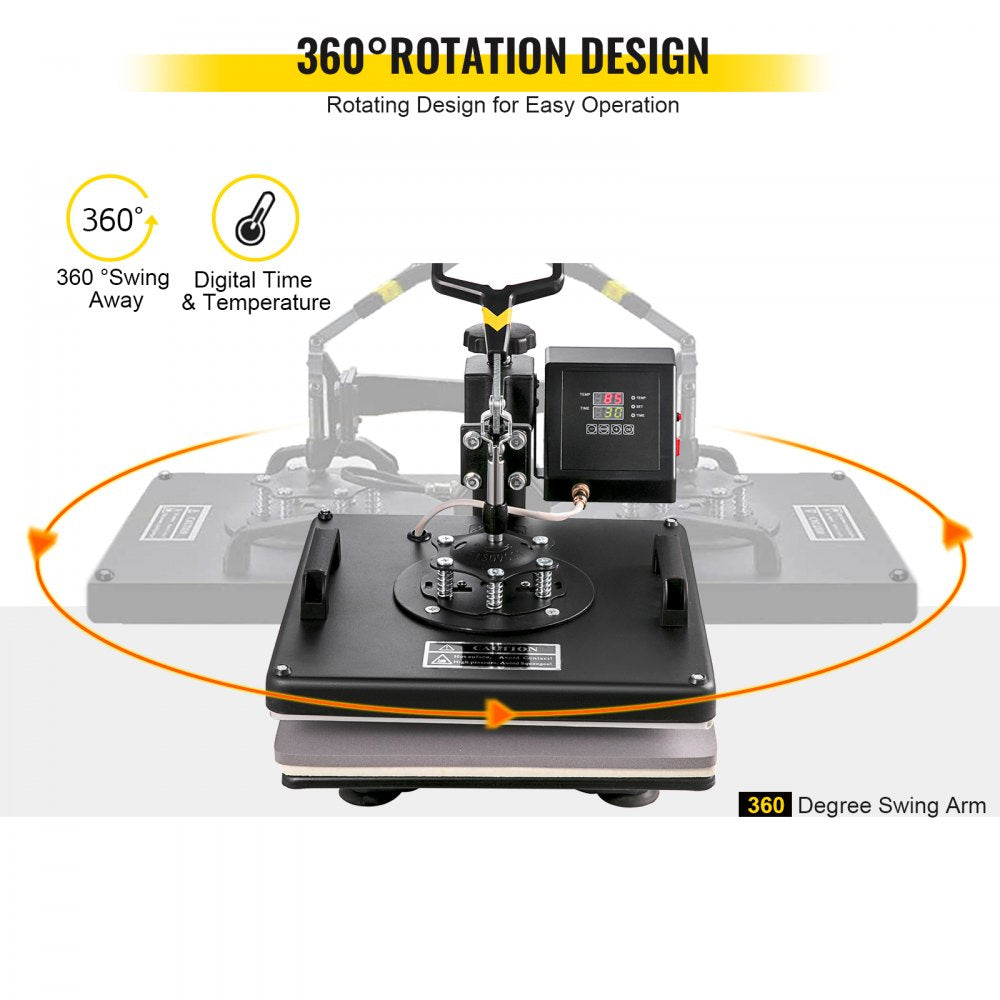

360° Rotation Design
Under the support of a 360° rotated swing arm & guide rail design, which makes the heat press have a full range pressure directly as well as evenly.

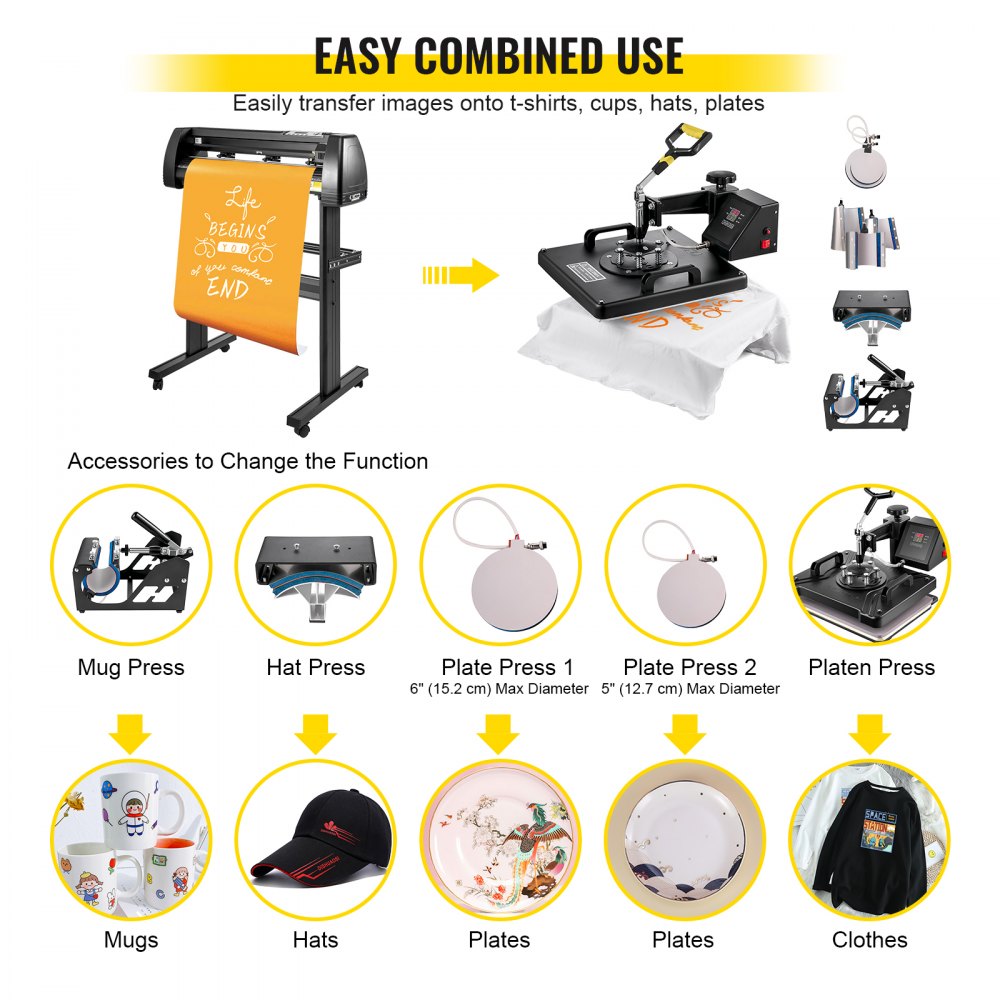

Easy Combined Use
This heat press and cutter kit gives you access to take your creative vision from your mind to reality. 53-inch vinyl cutter plays a role in pattern-making, and the 8 in 1 heat press can transfer these pictures on different items.
Specifications
- 53 Inch Vinyl Cutter
- Max Paper Feed: 1350 mm (53.1")
- Max Cutter Width: 1260 mm (49.6")
- Cutter Pressure: 10-500g
- Cutting Speed: 10-800 mm per second
- Memory: 2 MB
- Repetition Accuracy: 0.0004" (0.01 mm)
- 8 In 1 Heat Press Machine
- Wattage: 1400W
- Timer Control: 0 - 999 s
- Temperature Range: 200-450 °F（95-232 °C）
- Gross Weight: 59.7 lb (27.1 kg)
- Eight Elements
- Platen Press (Telfon-coated): 15" x 15" (38 x 38 cm)
- Hat/Cap Press: 6" x 3" (15 x 7.6 cm) (Curved)
- Mug Press #1: 2" - 2.75" (5.1 - 7 cm) Diameter (6 OZ)
- Mug Press #2: 3" - 3.5" (7.6 x 8.9 cm) Diameter (11 OZ)
- Mug Press #3: 12 OZ Latte Mug (Cone)
- Mug Press #4: 17 OZ Latte Mug (Cone)
- Plate Press #1: 5" (12.7 cm) Max Diameter
- Plate Press #2: 6" (15.2 cm) Max Diameter
- Product Size:38.5 x 38.5 x 38 cm/15.15 x 15.15 x 14.96 inch

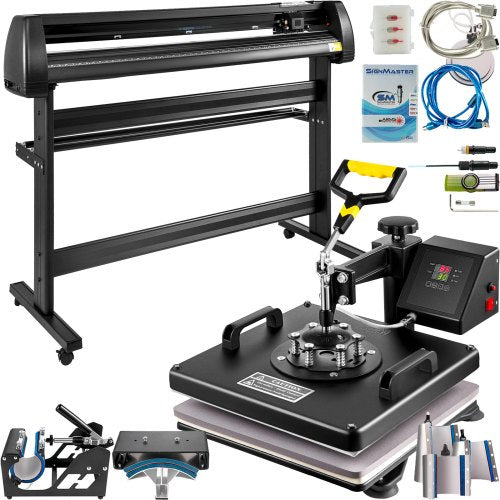

Package Content
- 53 Inch Vinyl Cutter
- 1 x 53 Inch Vinyl Cutter Plotter Machine
- 1 x SIGNMASTER Software
- 1 x Blades Holder
- 3 x Blades
- 1 x Pen Holder
- 3 x Cables (USB/Serial/Power Cord)
- 1 x USB Flash Disk
- 1 x User Manual
- 1 x Floor Stand Kit
- 8 In 1 Heat Press Machine
- 1 x Fully-assembled Machine with Platen Press
- 1 x Hat Press
- 4 x Mug Presses
- 2 x Plate Presses
- 1 x Removable Silicone Pad and Cotton Pad
- 1 x Operating Manual
- T-shirts, Cups And Hats Are NOT Included.
