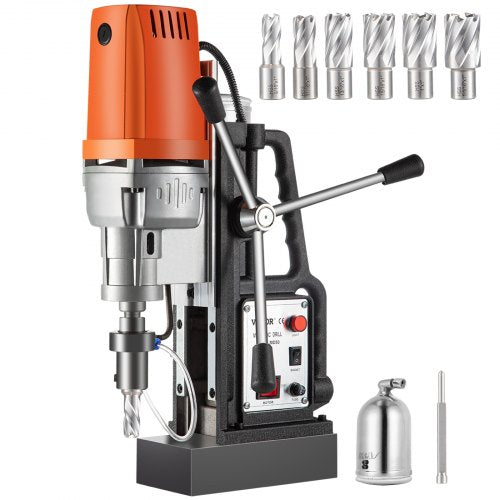

Electric Magnetic Drill Press
This class of leading drill press tools has been designed and engineered specifically for speed and precision, with solid magnetic adhesion of 13000 N, an optimized rotation speed of 500 RPM. It is an essential tool for performing heavy-duty industrial and steel fabrication work.
- Superior Performance
- Premium Coring Bits
- 13,000N Magnetic Force
- Thoughtful Designs & Cooling System
Excellent Performance
Designed for precise and demanding coring, this mag drill features 500 rpm and 1680 watts of motor power. Max. Coring Diameter: 2"/50mm; Max. Travel Distance: 8.3"/210mm.
Practical Accessories
6 coring bits meet different working requirement, and it can be installed directly without drill clip. Also, there are a stainless steel coolant pot and a pilot pin provided for your convenient operation.
13,000 N Suction Power
The stable base acts as a powerful electromagnet to firmly fix the drill bit at a force of 2900lbs/13000N during work, preventing movement during drilling process.
Dustproof Cooling Hole
Coolant bottle with quick push-fit tube connection included for long cutter life and smooth drilling. What`s more, dustproof air inlet and exhaust air holes for temperature reduction.
Considerable Details
The crank handles are coated with non-slip rubber, which makes the operation easy and labor-saving. The ergonomically designed handle provides a comfortable grip. A simple control panel allows easy operation.
Various Application
The electromagnetic drill press plays a vitally important role in shipbuilding, equipment manufacturing, equipment installation, bridge engineering, and other engineering facilities.
Specifications
- Voltage: 110V, 50/60 Hz
- Power Source: Electric
- Machine Type: Magnetic Drill Press
- Power: 1680W
- Rotary Speed: 500 RPM
- Magnetic Force: 2900 lb (13000 N)
- Maximum Boring Depth: 210 mm (8.3")
- Boring Diameter: 12-50 mm (0.5"-2")
- Stainless-steel Pot: 30.51Cubic Inch /500ml
- 6 HSS Drill Bits: 9/16", 11/16", 13/16", 15/16", 1", 1-1/16"; 2" depth
- Gross Weight: 48.6 lb (22 kg)
- Package Dimensions (L x W x H): 20" x 14.2" x 7.1" (51 x 36 x 18 cm)
Package Content
- 1 x 1680W Magnetic Drill 2" Boring Diameter
- 7 x HSS Annular Drill Bits(0.56" x 1"/14mm x 26mm, 0.71" x 1"/18mm x 26mm, 0.81" x 1"/21mm x 26mm, 0.94" x 1"/24mm x 26mm, 1" x 1"/25mm x 26mm, 1.06" x 1"/27mm x 26mm)
- 2 x Pilot Pin
- 1 x Stainless-steel Pot
- 1 x User Manual
