245W Recirculating Pump
Brass Fittings & Two Control Modes & Auto-start
This water circulator pump is made of a premium stainless steel pump head and aluminum pump housing, features high power efficiency, low energy consumption, ample water flow, low noise running, and easy installation. Convenient for daily use, perfect for family water heating systems, such as remote villas, cabins, etc.
- Note: Never let water outlet facing downward, or the valve will be plugged up.
- Cast Iron Material
- Manual/Auto Switch
- Large Flow & Quiet Running
- Easy Installation

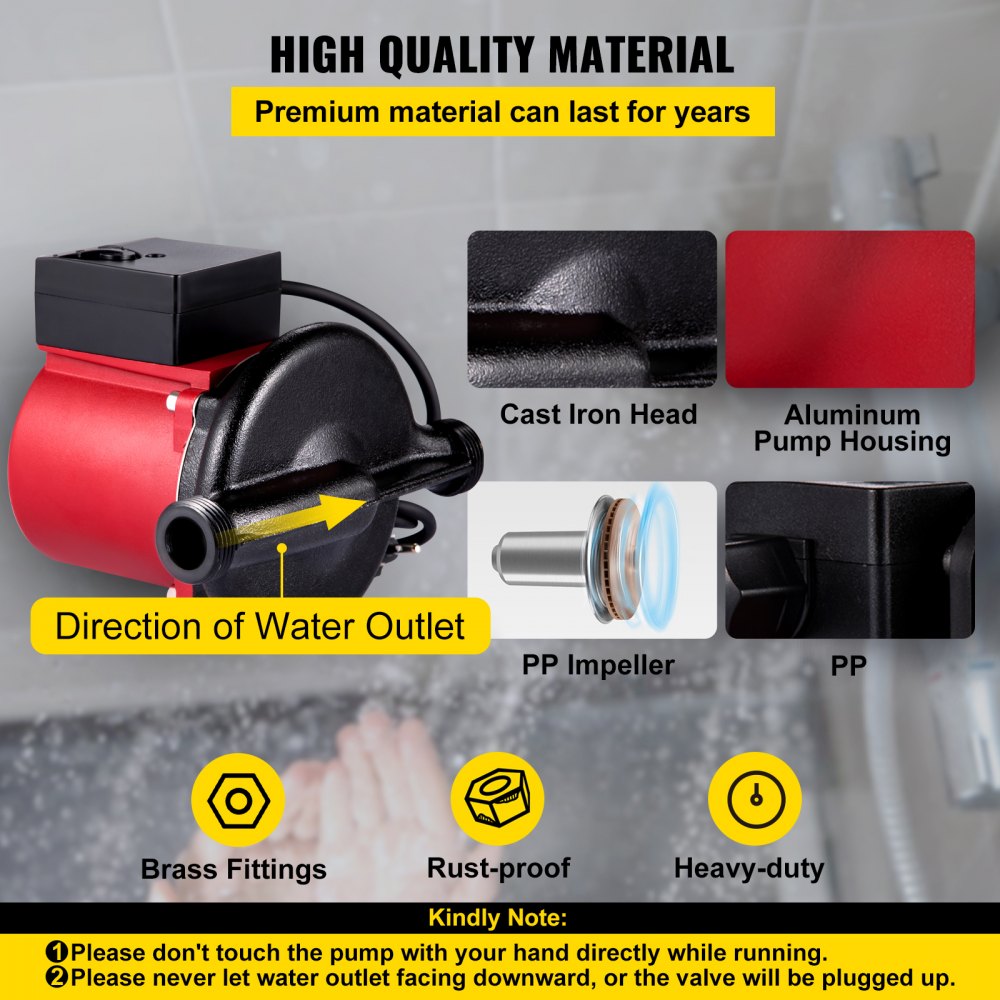

Heavy-duty Material
Our recirculating pump comprises a heavy-duty iron head, aluminum housing, and PP impeller and is also equipped with brass fittings, flow gauge, and water-stop. As a result, rust-proof, waterproof, corrosion-proof, and leakages-proof can last for years.
Boost Water Flow
Powerful flow with 16 GPM and the highest head lift can reach 49.2 ft. The maximum pressure of this water circulator pump is 10 Bar(145Psi). High efficient and large flow but low energy consumption.

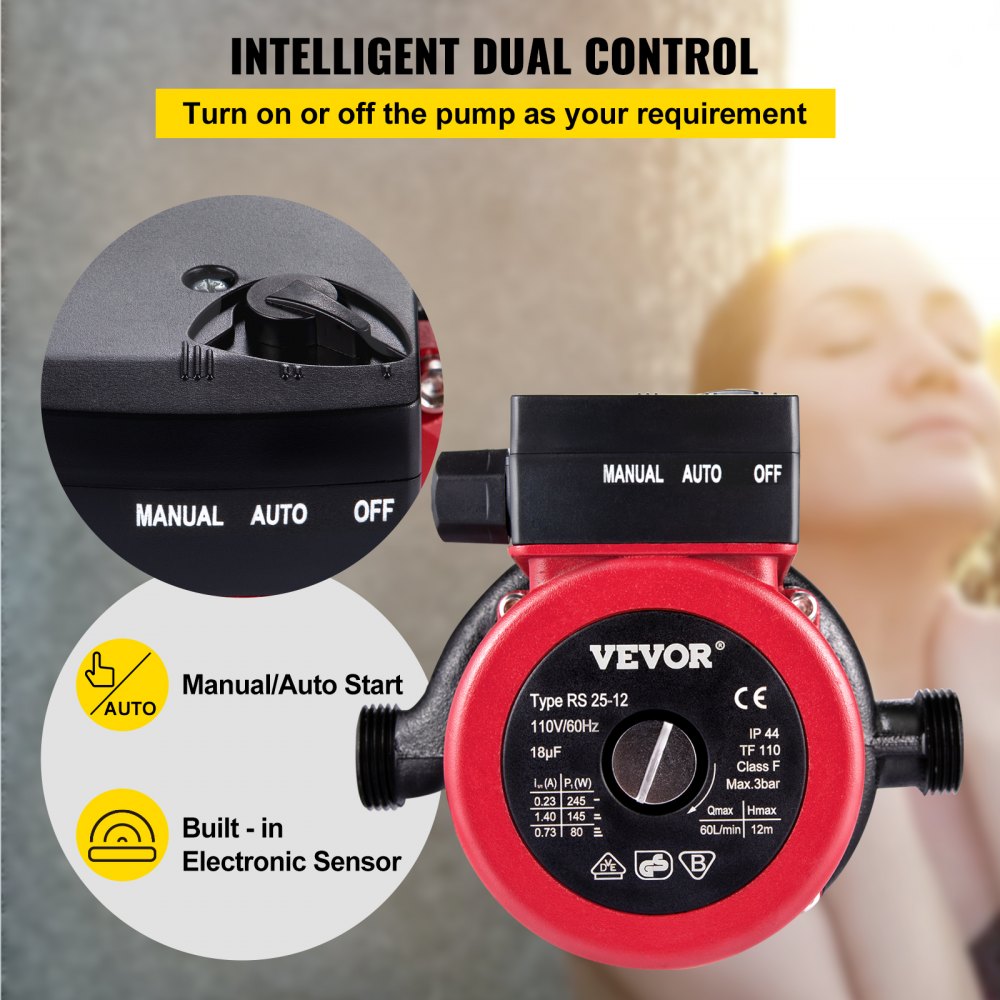

Dual Control Mode
The pump features a built-in high-sensitive electronic sensor, two control methods-manual start or automatic start. The pump will run continuously for manual mode, and the pump will run when the water flows when turned on automatic mode.

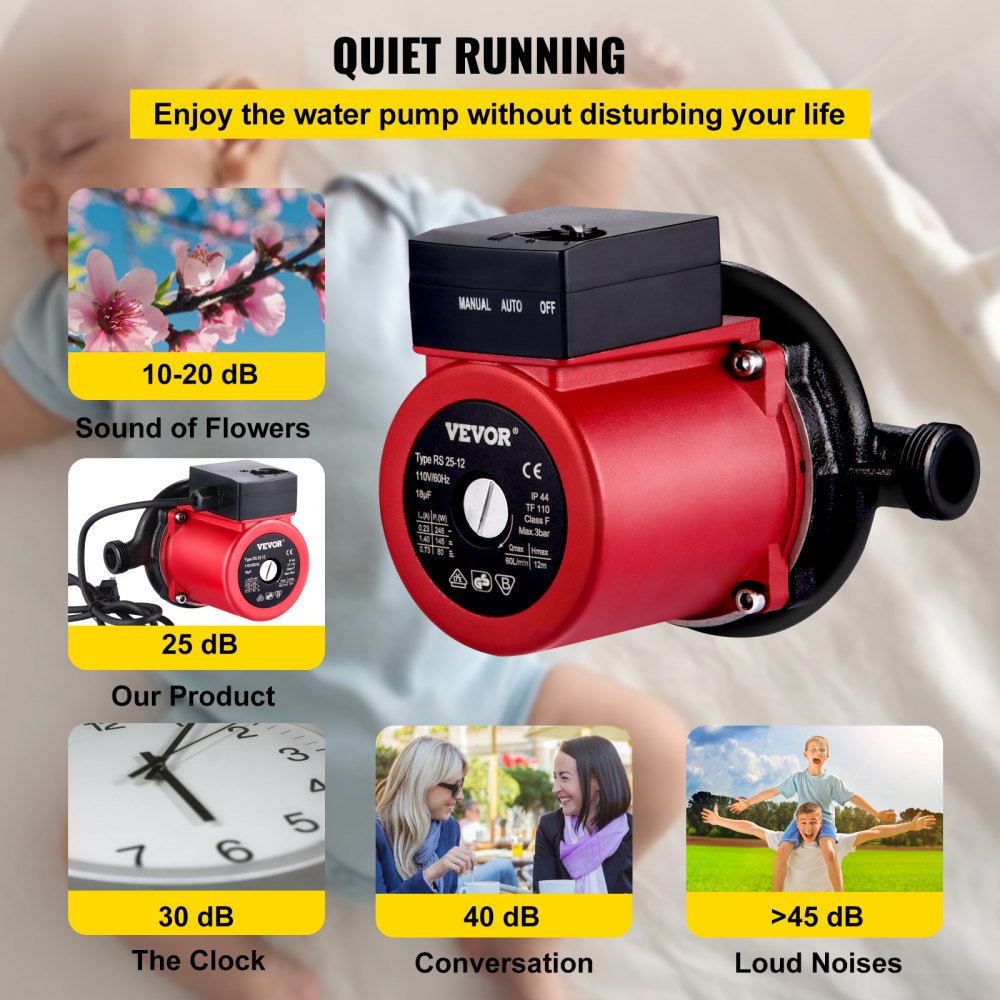

Quiet Operation
This circulating pump for hot water boasts a powerful motor for stable performance and low noise. The average noise level is only 25dB, enabling you to enjoy the pump without disturbing your life.
Effortless to Install
The recirculating hot water pump is easy to install on appliances and industrial electric or gas water equipment. However, you need to keep the pump shaft horizontally after installation.
Various Application
The recirculating pump for a water heater is a convenient water pressure boosting pump used in the water heating system, such as solar water heater, electric water heater, domestic water pipelines, etc.
Specifications
- Model: VV-ZT-ZYB UPA120
- Power: 245W
- Voltage: 110V/60HZ
- Body Color: Red/Black
- Pump Head: Cast Iron
- Pump Housing: Aluminum
- Impeller Material: PP
- Shaft Material: Ceramic
- Bearing Material: Carbon
- Noise Level: 25dB
- Inlet/Outlet Dia.: NPT 1" /2.54 cm
- Max. Flow Rate: 16 Gpm / 60 L/min
- Max. Head Lift: 49.2 ft / 15 m
- Rated Pressure: 1.28 Bar / 18.5 Psi
- Max. Pressure: 10 Bar/ 145 Psi
- Cable Length: 4 ft / 1.25 m
- Liquid temperature:32~212℉/0~100℃
- Ambient temperature: 32~104℉/0~40℃
- Mounting Position: Shaft Horizontal
- Protection Level: IP44
- Insulation Class: F

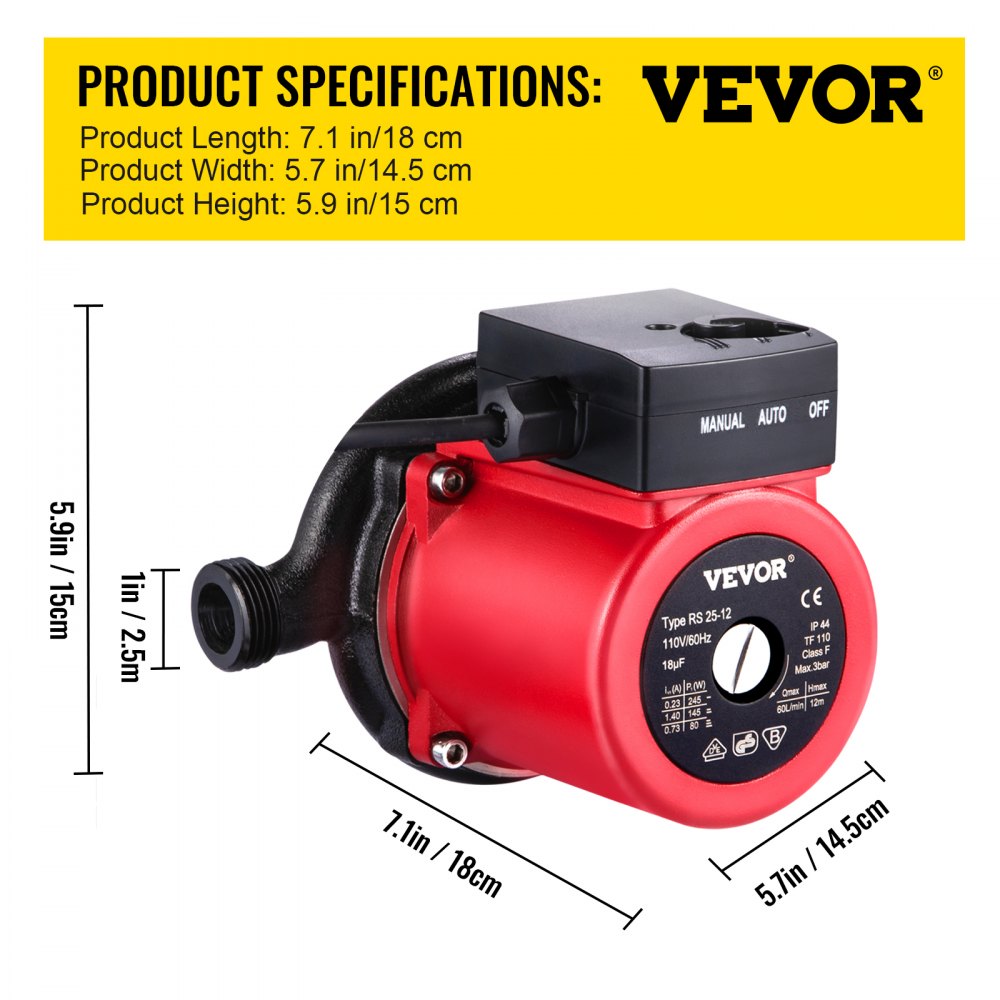

- Product Size: 7.1x5.7x5.9 in / 18x14.5x15 cm

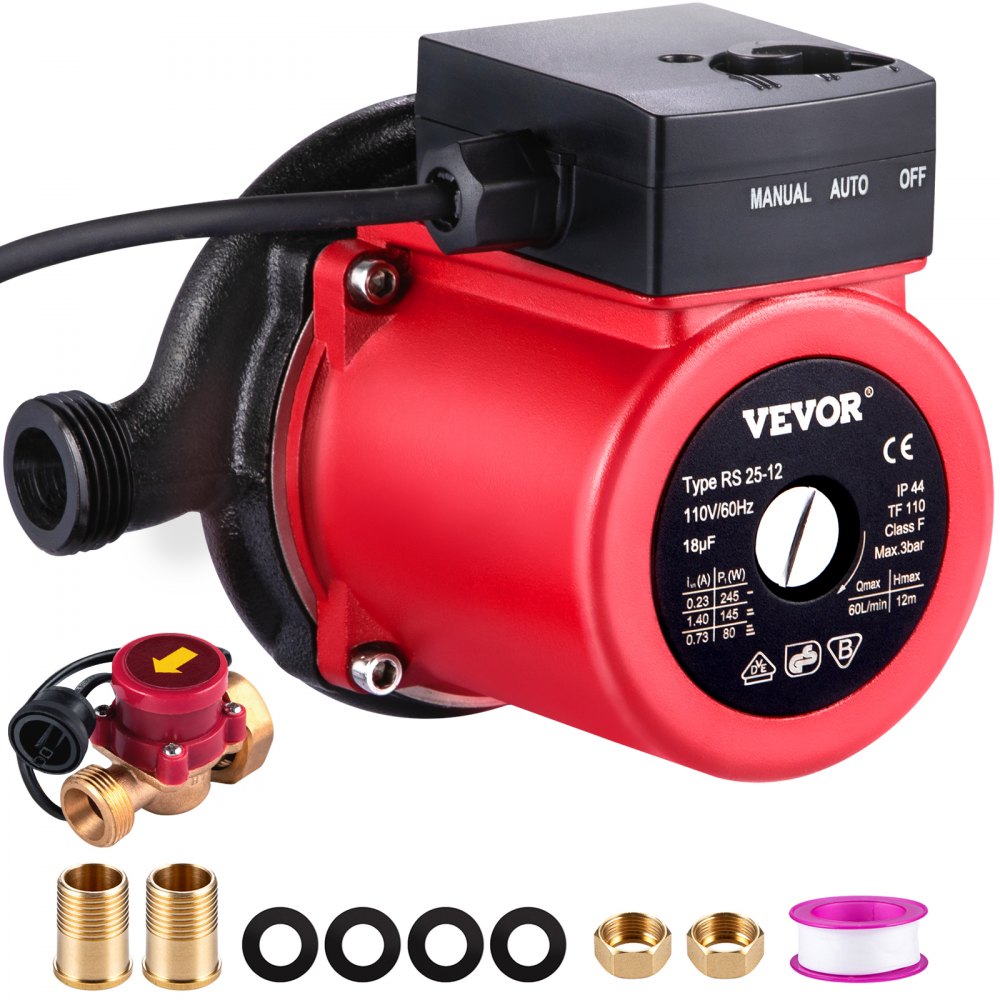

Package Content
- 1 x Recirculating Pump
- 1 x Flow Gauge
- 2 x Brass Fittings
- 2 x Rubber Gaskets
- 1 x Water-stop(3.28ft)
- 1 x Instruction Manual
