16.6 GPM Hydraulic Pump

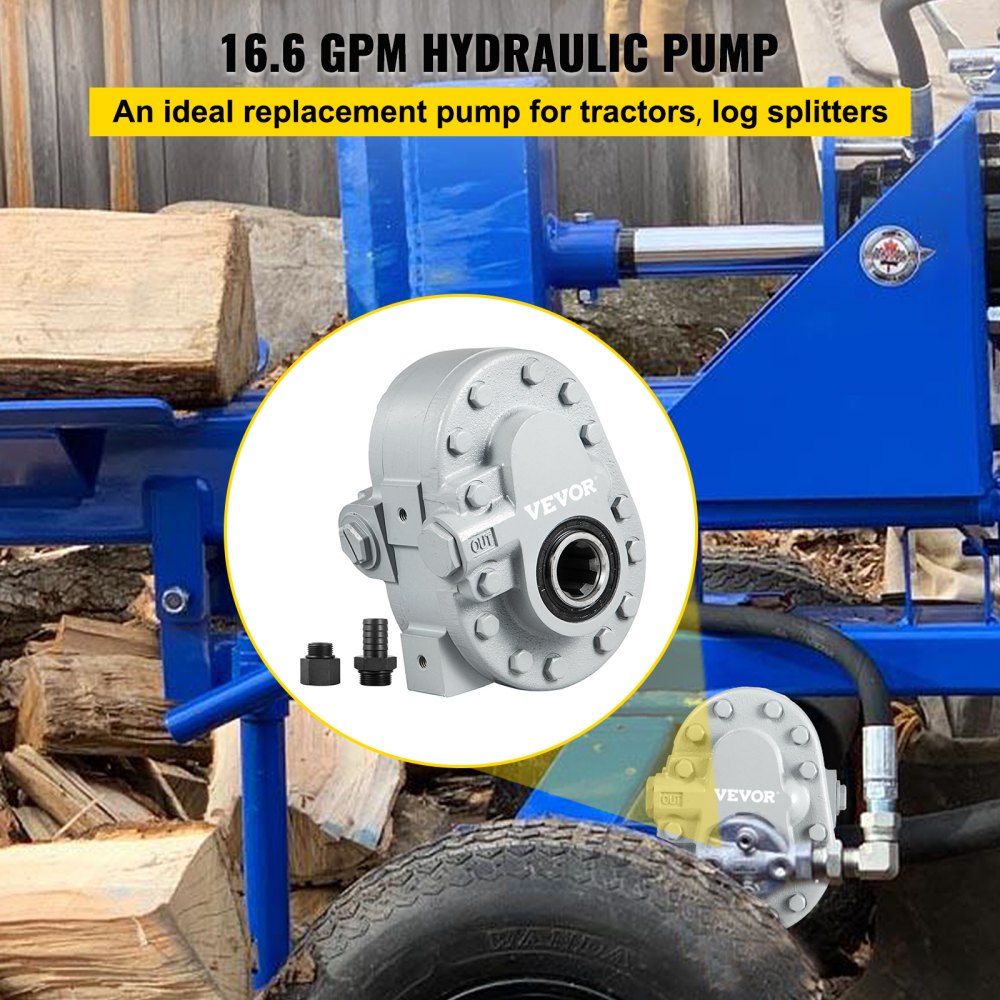

This is an excellent replacement pump for log splitters, hydraulic presses, snow plow power units and a variety of other agricultural power equipment. Mounting Positions: Horizontal & Vertical This two-stage gear pump provides faster cycle times with an over-all higher pressure rating, so you can squeeze every bit of power out of your equipment.
- High Quality Material for Longevity
- Fast Starting
- Safety Assurance
- Easy To Operate

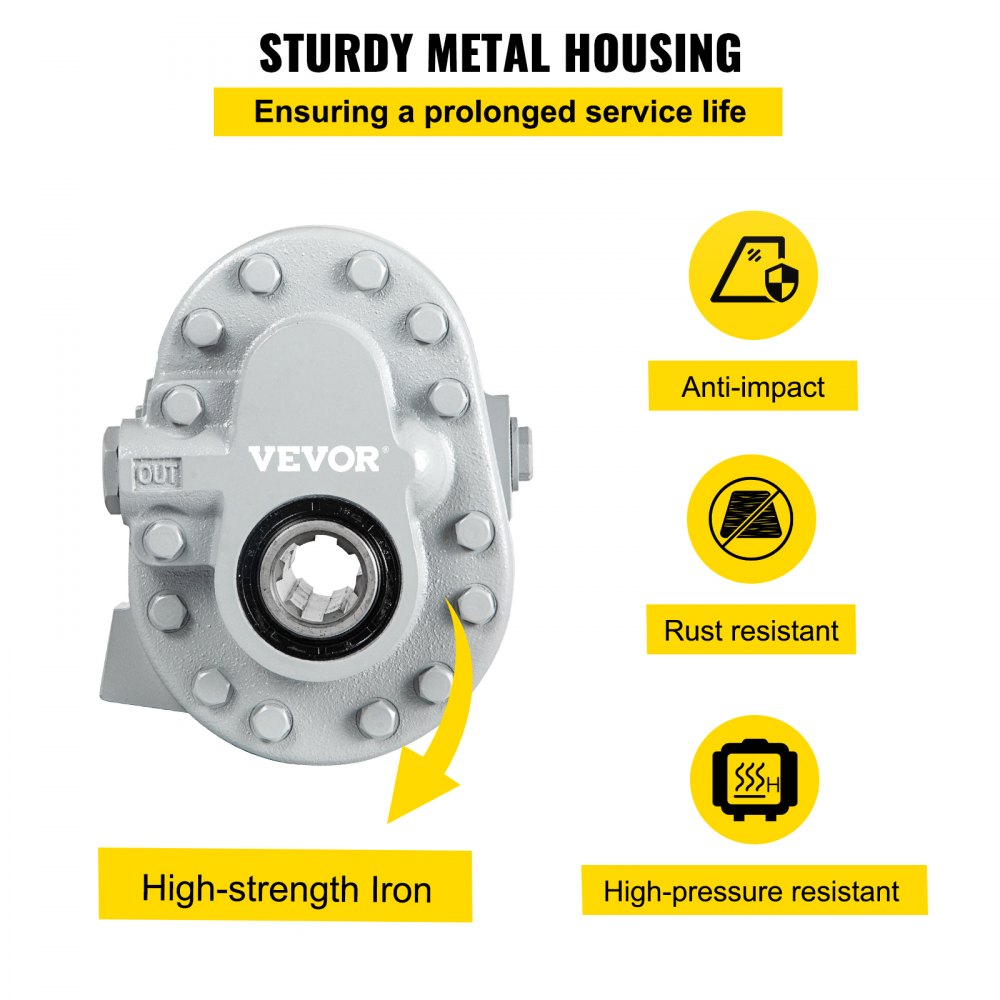

Sturdy and Durable
Over-pressure unit of pressure safety valve to avoid over pressure damage or extremely pressured.

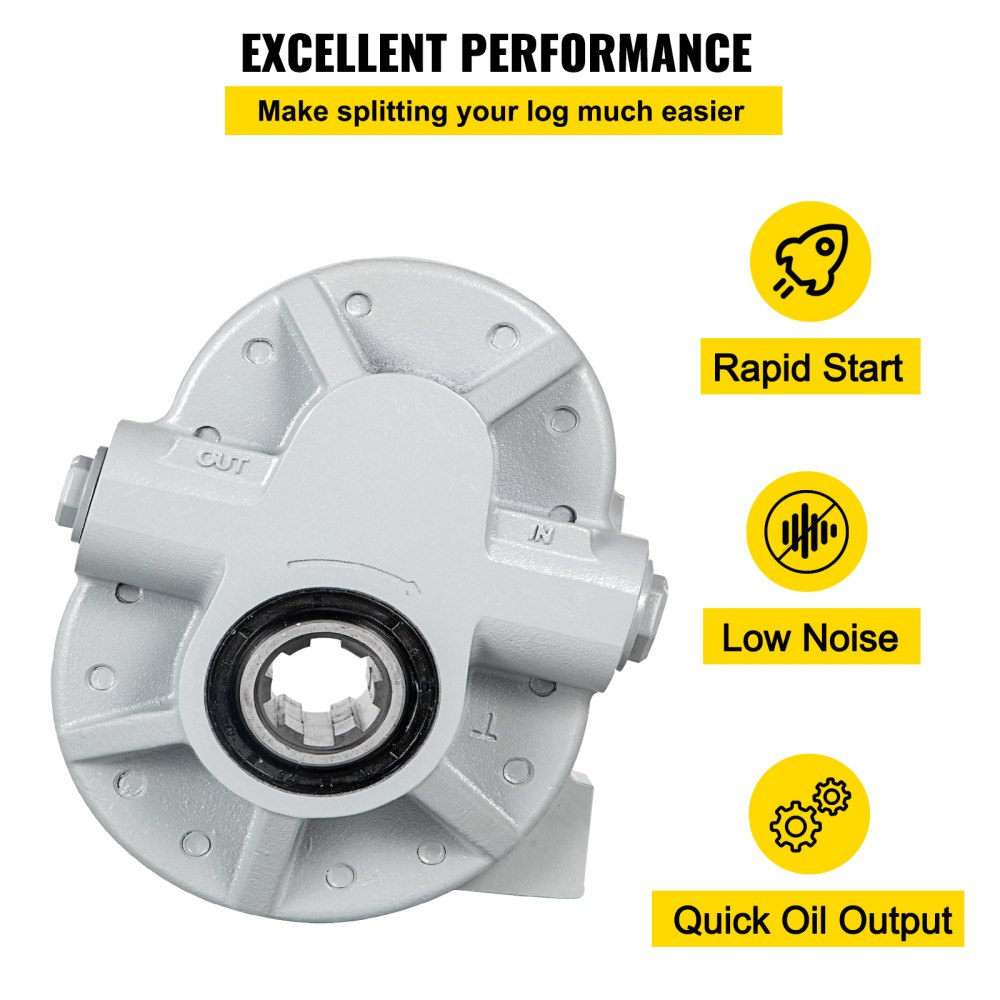

Rapid Start
The motor is built to last, and the tank has been specifically designed to not crack & leak under harsh conditions.Its high quality starter ensure long life and a fast starting each time.
Low Noise
This log splitter hydraulic fluid constructed with high quality oil suck pipes, which needed to be cleaned often, our pump work in a low-noise condition.
Quick Oil Output
Perfect replacement pump for log splitter coupling controlled hydraulic systems, designed for horizontal mounting, capable of quick oil output.
Fully Equipment
This hydraulic pump is equipped with other hydraulic tools can carry out lifting, pressure type, elbow, bending row, straightening, cutting, assembly, demolition and many other work. Reduce labor intensity.
Wide Application
Used in applications where extending a hydraulic cylinder is needed, truck tailgate lift, rv leveling, scissor lift, dump trailer, lift truck, snow plow, aerial platform, road signs, material handling, wheelchair lifts, etc.
Specifications
- Disp. 7.62 cu. in. / rev.
- Pump Type Gear

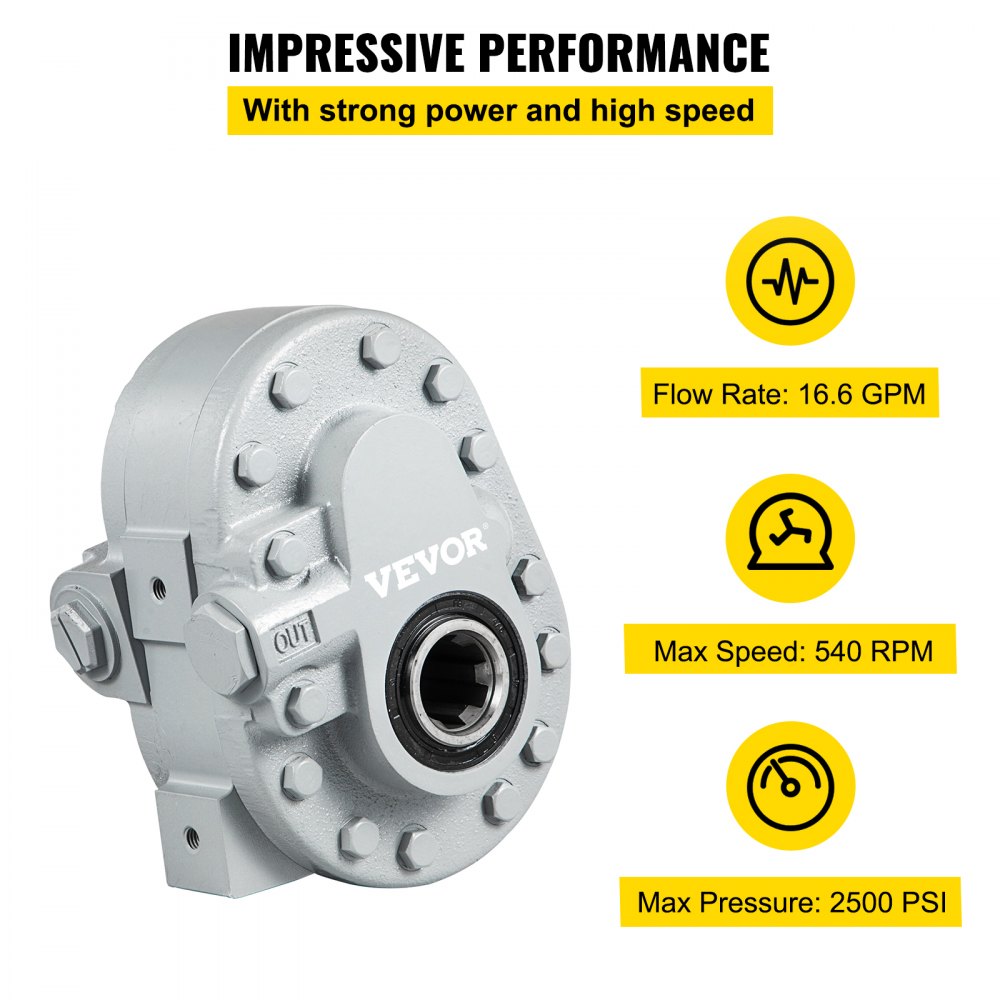

- Pressure 2500 PSI max.
- Speed: 540 RPM
- Material: Cast Iron + Aluminium Alloy
- Flow: 16.6 GPM at 540 RPM
- Mount 2 bolt side for torque arm
- Shaft 1-3/8" 6 tooth female spline

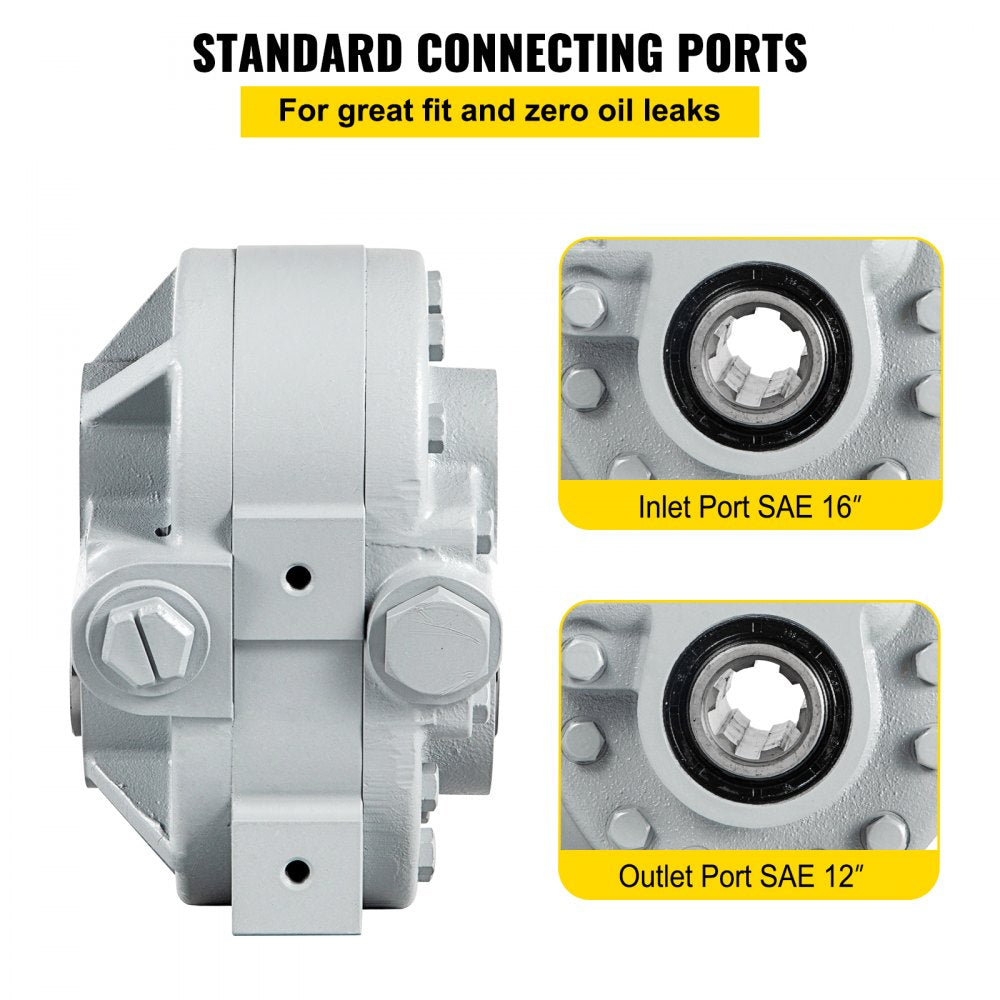

- Inlet Port SAE 16
- Outlet Port SAE 12

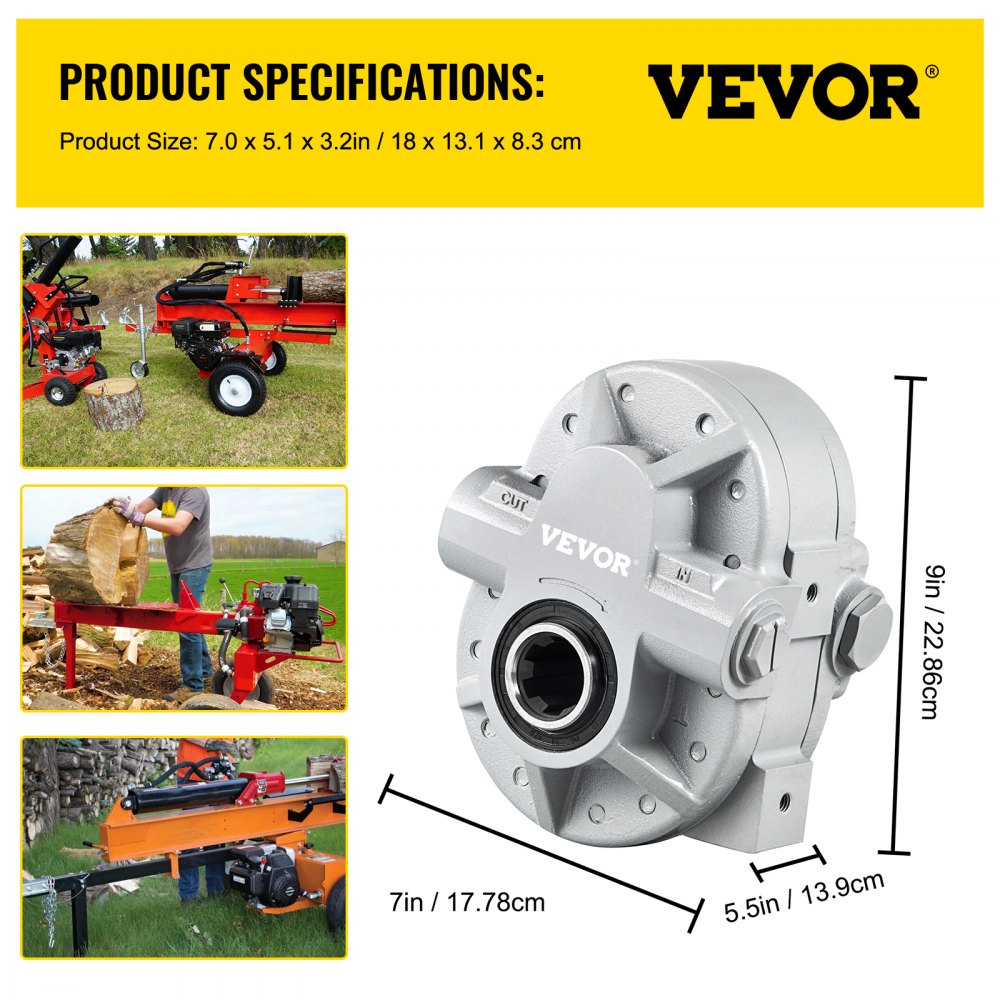

- Size 6" x 6-3/4" x 8-3/4"
- Packing weight: 43 lbs
Package Content

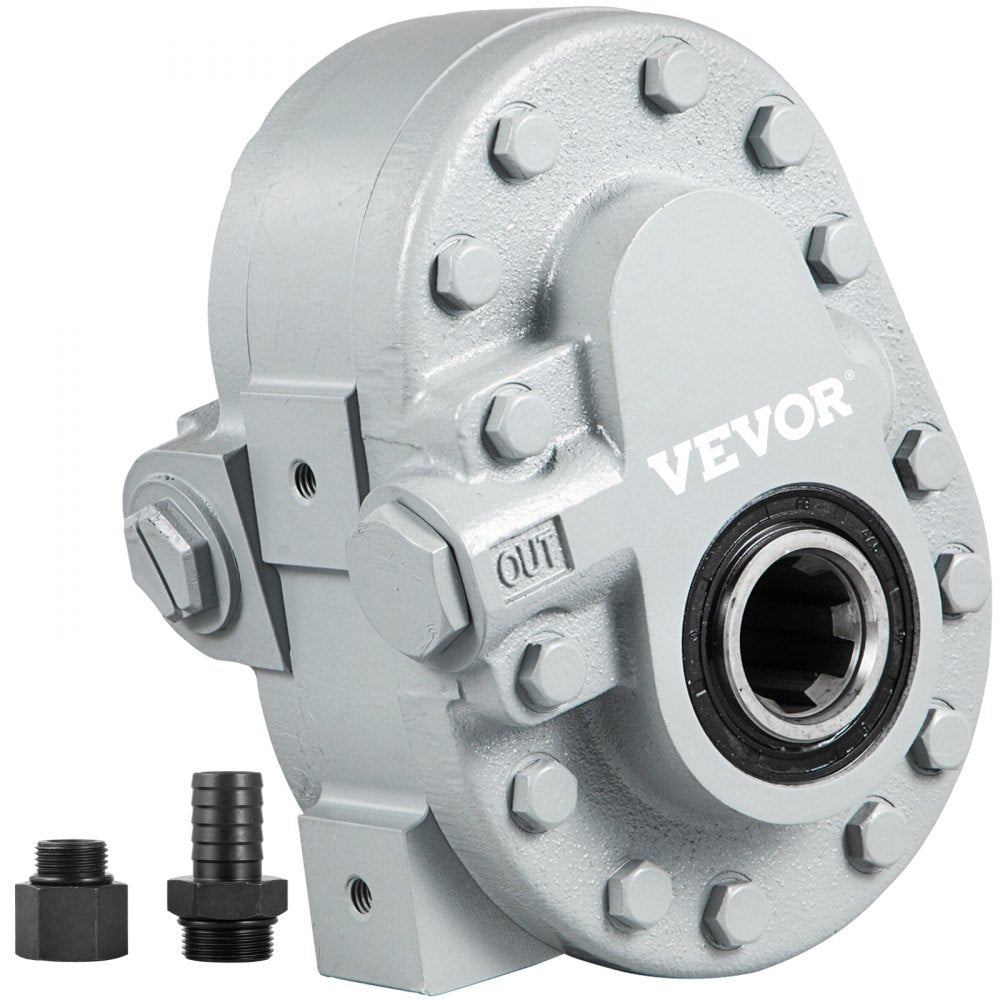

- 1 x 16.6 GPM Hydraulic Pump
- 1 x Seal Ring
